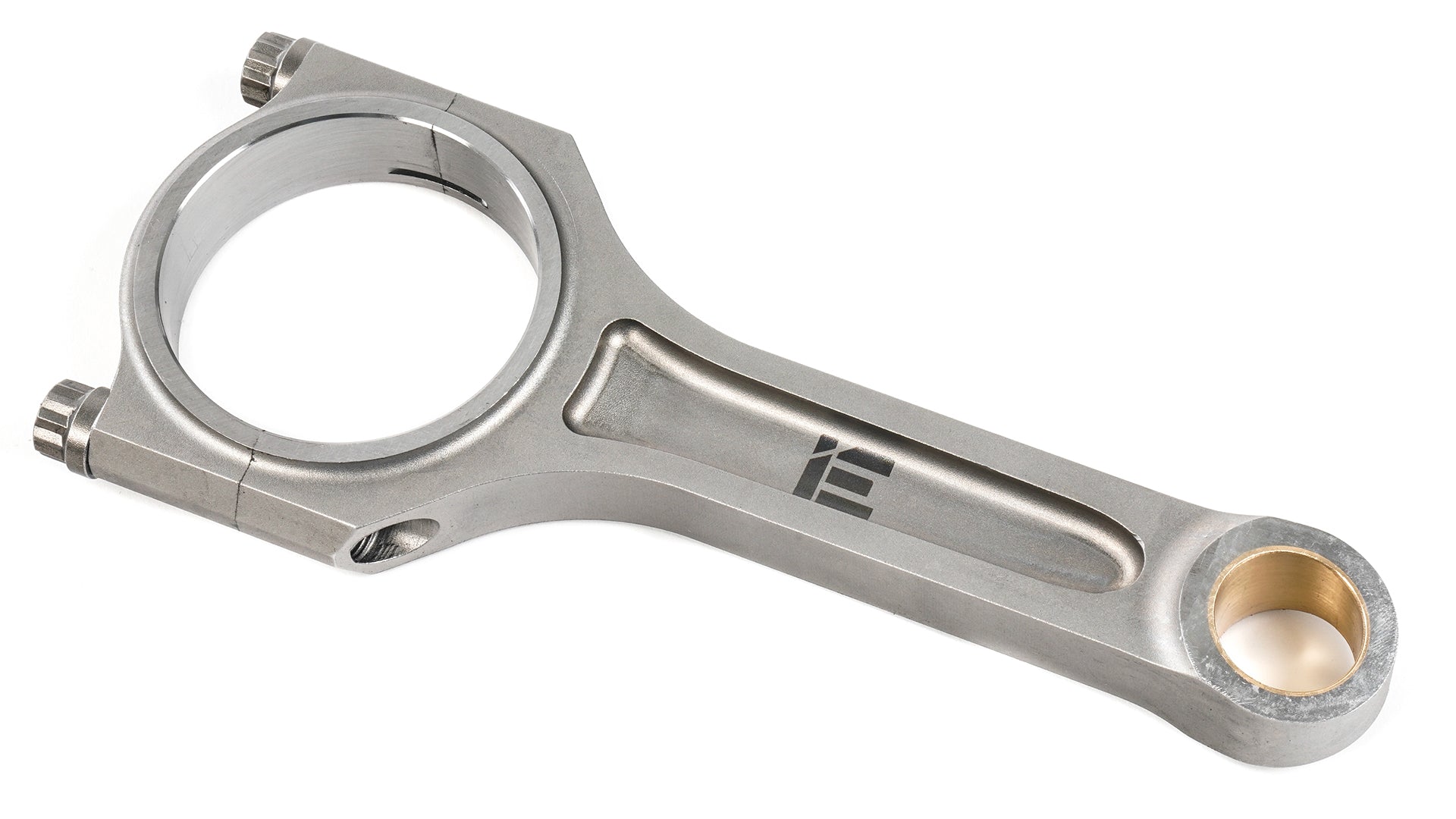

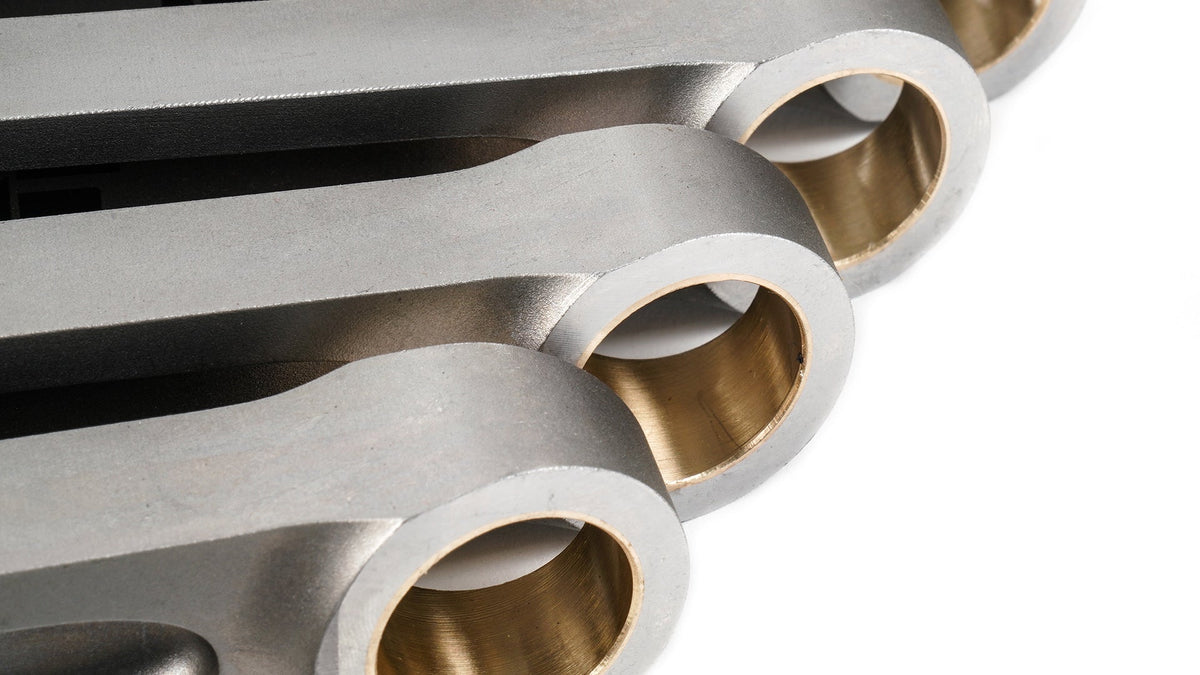

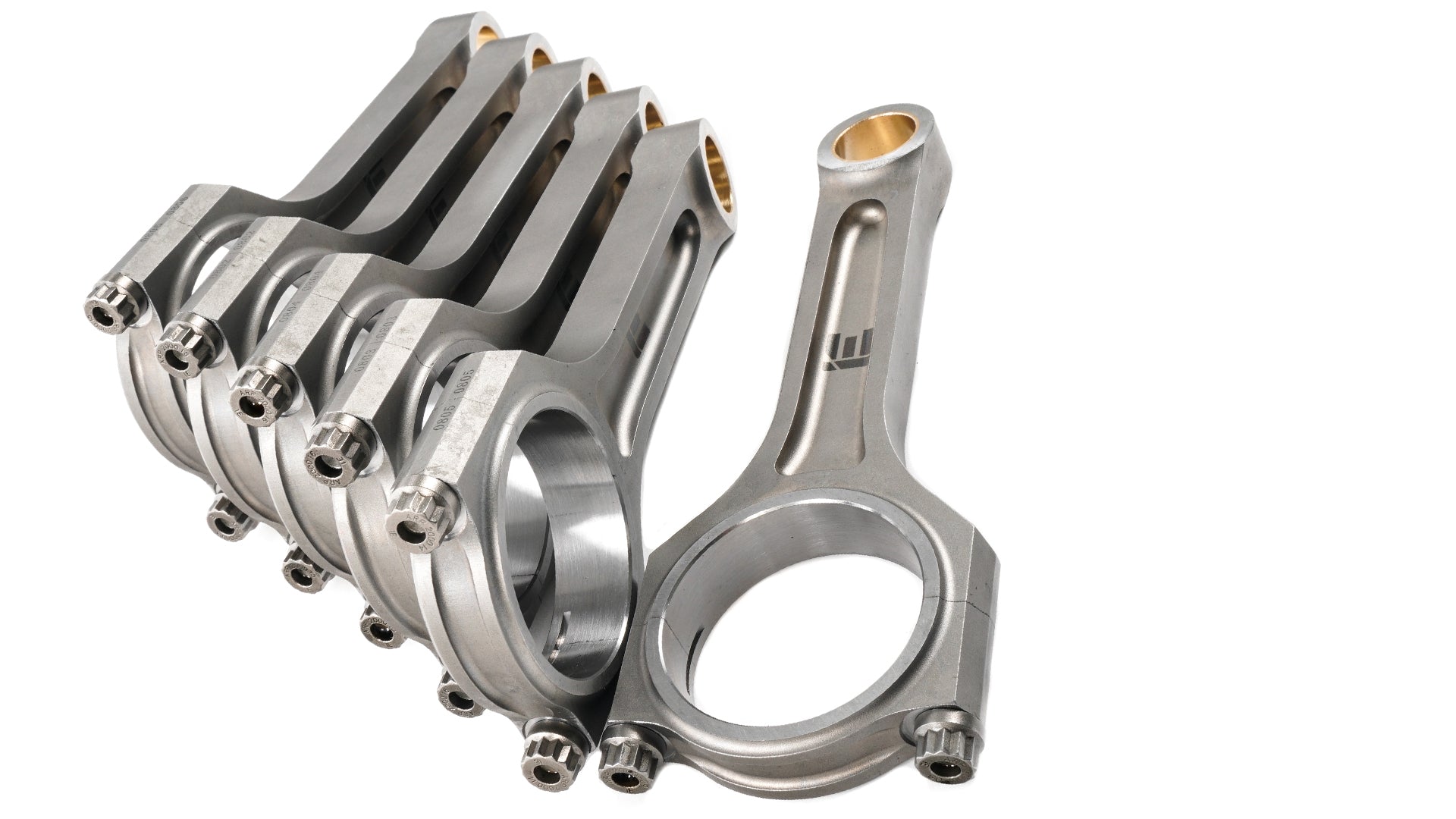

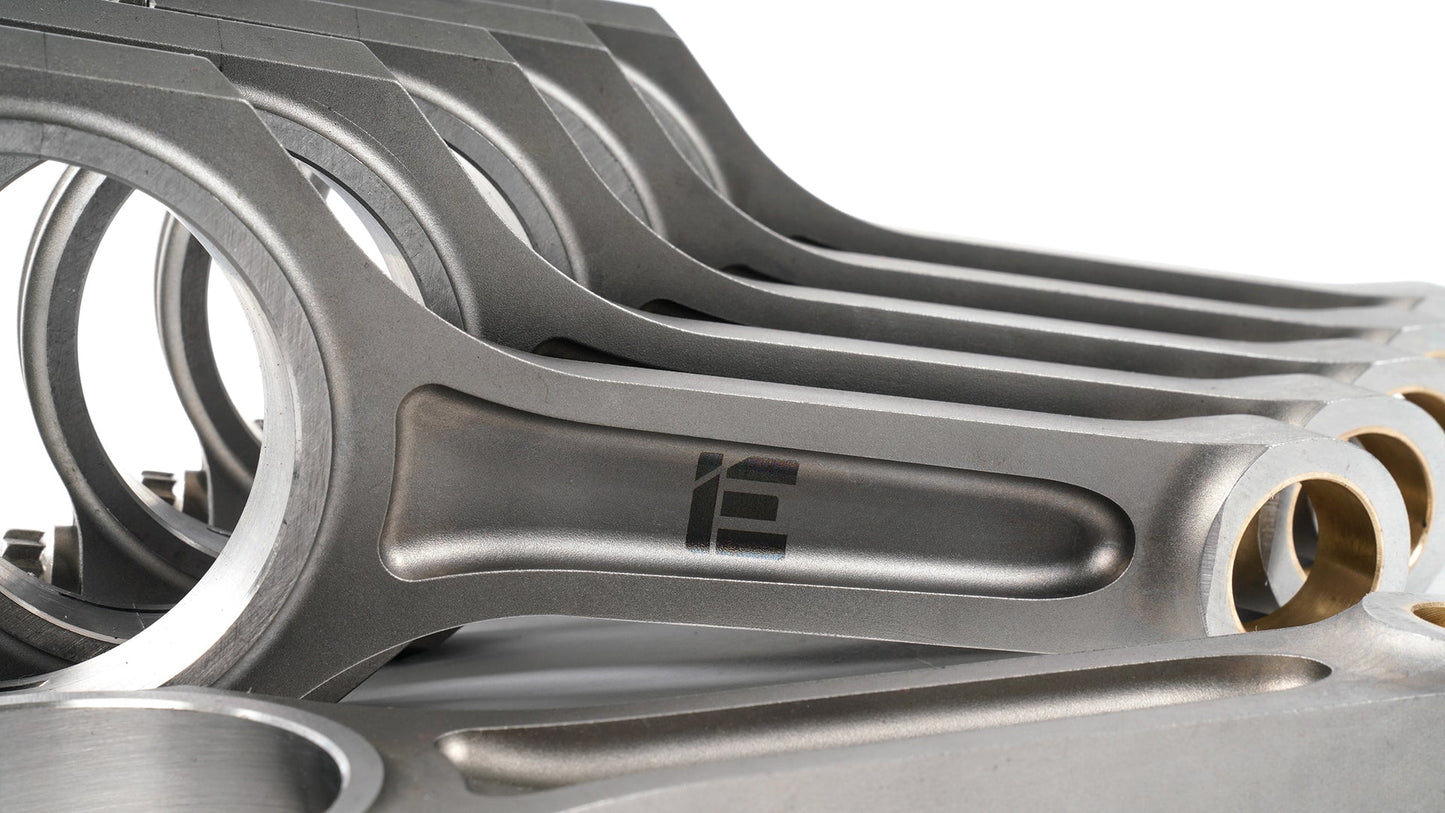

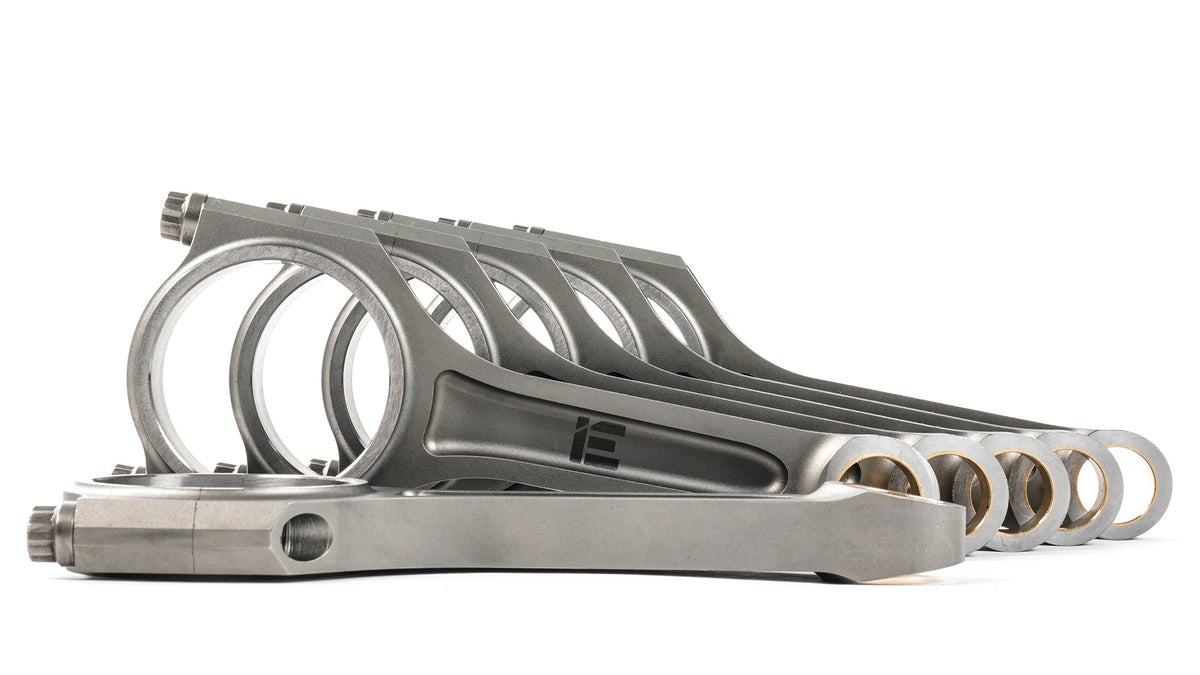

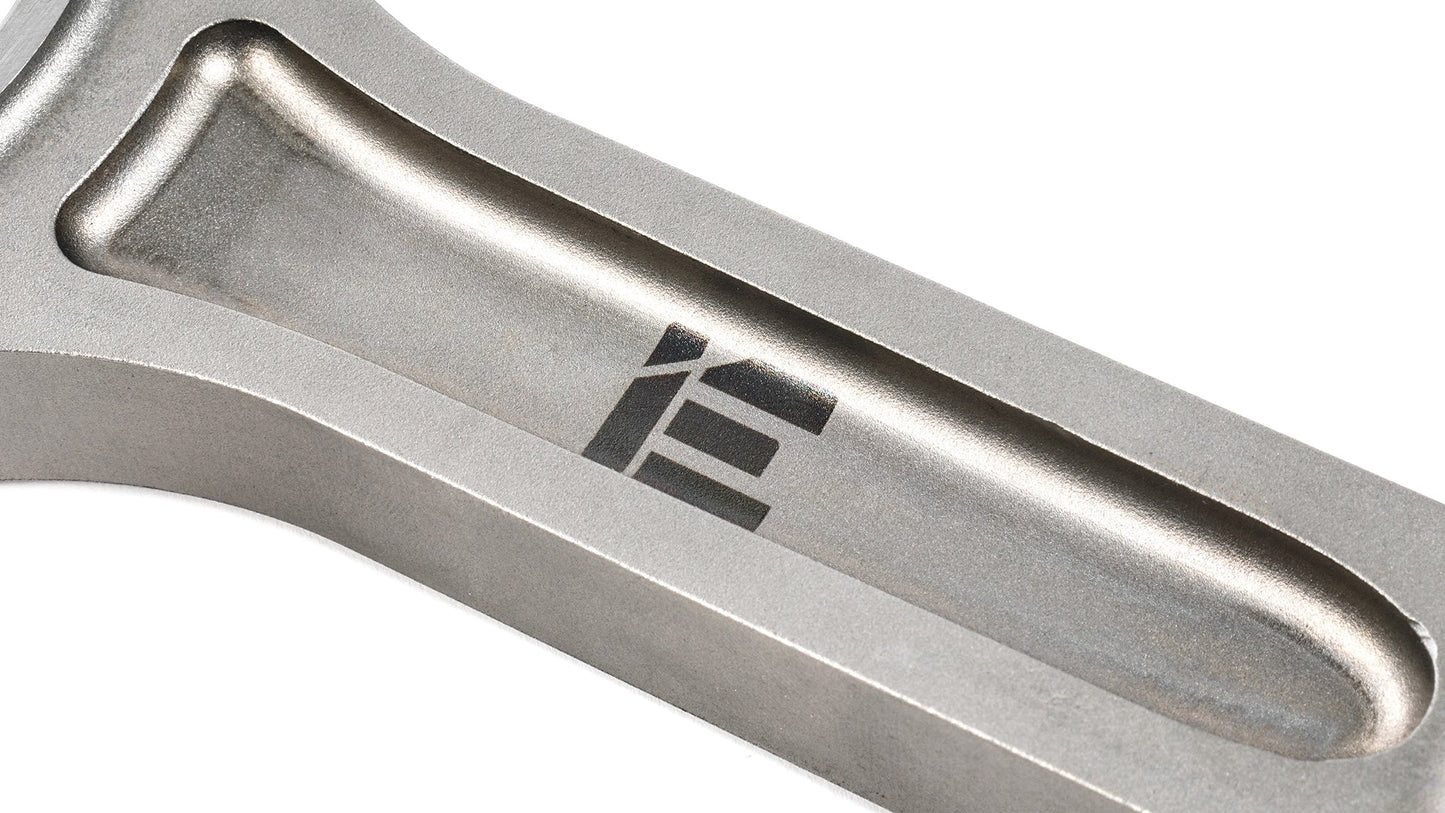

Tuscan 155X22 Connecting Rods | Audi B9 3.0T Turbocharged Engines | Integrated Engineering

Overview

I-Beam design withstands up to 1000 ft-lbs torque per set of 6

Details

• 22mm wrist pin sizing for reliability under high boost
• In-house engineered for Audi 3.0T; complete set of six connecting rods included
• Perfect match for IE Spec JE Forged Pistons
• Specs: big end 58.74mm, small end 22mm, center-to-center 155mm, journal width 20.04mm
• Material: 4340 chrome moly, ARP 2000 3/8-1.5 inch bolts, weight ~630g avg with bolts
• Forged from vacuum-drawn 4340 chrome moly, surface-peened, magnaflux inspected, diamond honed to ~250 millionths inch
• Sets balanced within +/-1 gram
• Fitment: Audi S4/S5 (2017-2024 B9), SQ5 (2018-2024 B9) with EA839 3.0T engine
• Requires aftermarket pistons with 22mm wrist pins (critical compatibility note)

Fitment
