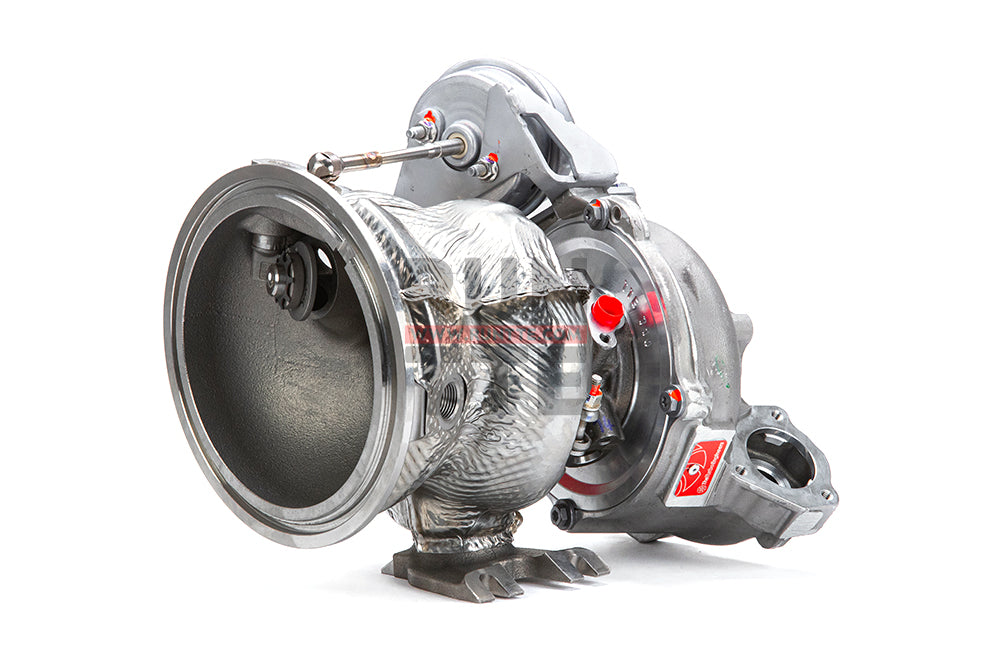

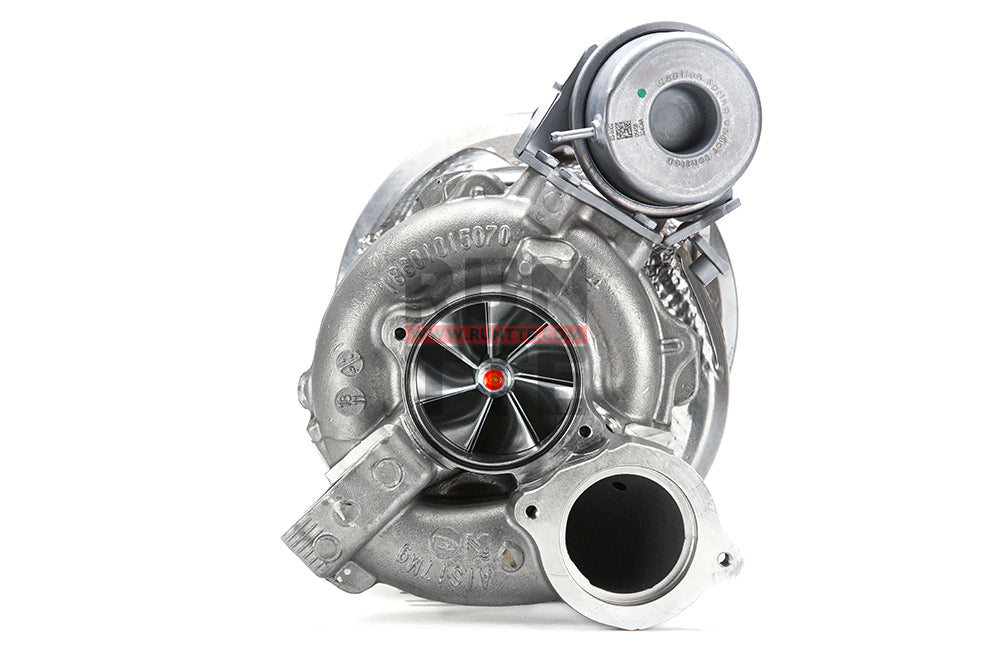

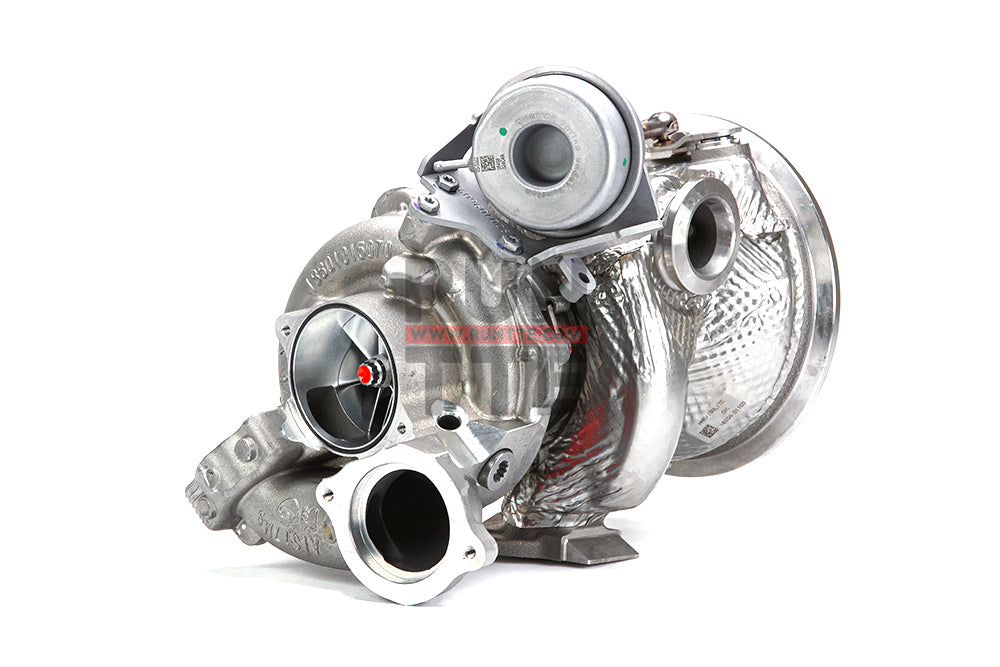

TTE810+ Turbocharger for Audi 3.0 TFSI B9/B9.5 S4/S5/SQ5

Introducing the TTE810+ Turbocharger for the 3.0 TFSI.  TTE's latest hybrid evolution from the TTE810 for the ultimate blend of power, fast-response, and Plug & Play ease of fitment. Utilizing the original turbocharger but modified for greater flow and power.  Fitted with a proven TTE billet compressor and latest 9blade turbine and now with updated machining to gain more rpm threshold, the new updated TTE810+ turbocharger has even more reliability on various set ups.

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled, and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.

Upgraded intercooler, downpipe, high flow cat, full exhaust, intake and turbo inlet is also recommended for maximum performance.  Special attention should be noted on the turbo inlet connection size. Any smaller then 66mm will limit performance.

Product Highlights:

• Original BWTS turbocharger
• TTE Billet Milled compressor 7+7 BLADE 66MM Inlet
• TTE 9 Blade oversize High-Flow Low Mass Turbine 63mm outlet
• Plug and Play installation (Larger inlet must be used with TTE810 adapter)
• 7pad thrust bearing
• 600HP+ proven on pump 102 petrol  (750HP+ on E85)
• Software recalibration is required
• Proven TheTurboEngineers quality
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• 1 YEAR TTE TROUBLE-FREE WARRANTY
• Made in Germany
