Overview
Ditch your heavy, ugly stock wheel bolts or rusty steel stud conversion and do your build some justice! We've been running these titanium alloy studs on both street and track cars (including dedicated time attack and drag cars) for years with zero issues. Unlike cheap 100% titanium bolts/studs, our Ti-6Al-4V alloy is over 75% stronger than comparable steel counterparts.
Details
Lightweight:
Stock wheel bolt: 0.1kg (100g) / 0.2lb (4oz)
Titanium stud/nut combo: 0.045kg (45g) / 0.1lb (2oz)
Total rotational/unsprung weight savings: 1.1kg (1100g) / 2.4lb (39oz)
High Strength:
GAS Titanium wheel studs: 950 mPa (138,000 psi)
Stock wheel bolts: 540 mPa (78,300 psi)
Features:
- 70mm overall length
- ~40mm of available thread, measured from the brake disc face
- Less than half the weight of OEM bolts
- Machined from Ti-6Al-4V aerospace grade titanium alloy
- Rolled threads for high strength & reliability
- Faster & easier wheel changes, no more balancing your wheel while lining up the bolts
- Titanium-vanadium composition is nearly twice as strong as OEM steel bolts
- Extremely high resistance to corrosion, perfect for areas with salt on the roads
- Threads rolled and tested to a strict 6g/6H tolerance
- Allows the use of up to 15mm wheel spacers (wheel-dependent)
- Offered for both stock and aftermarket wheel fitment

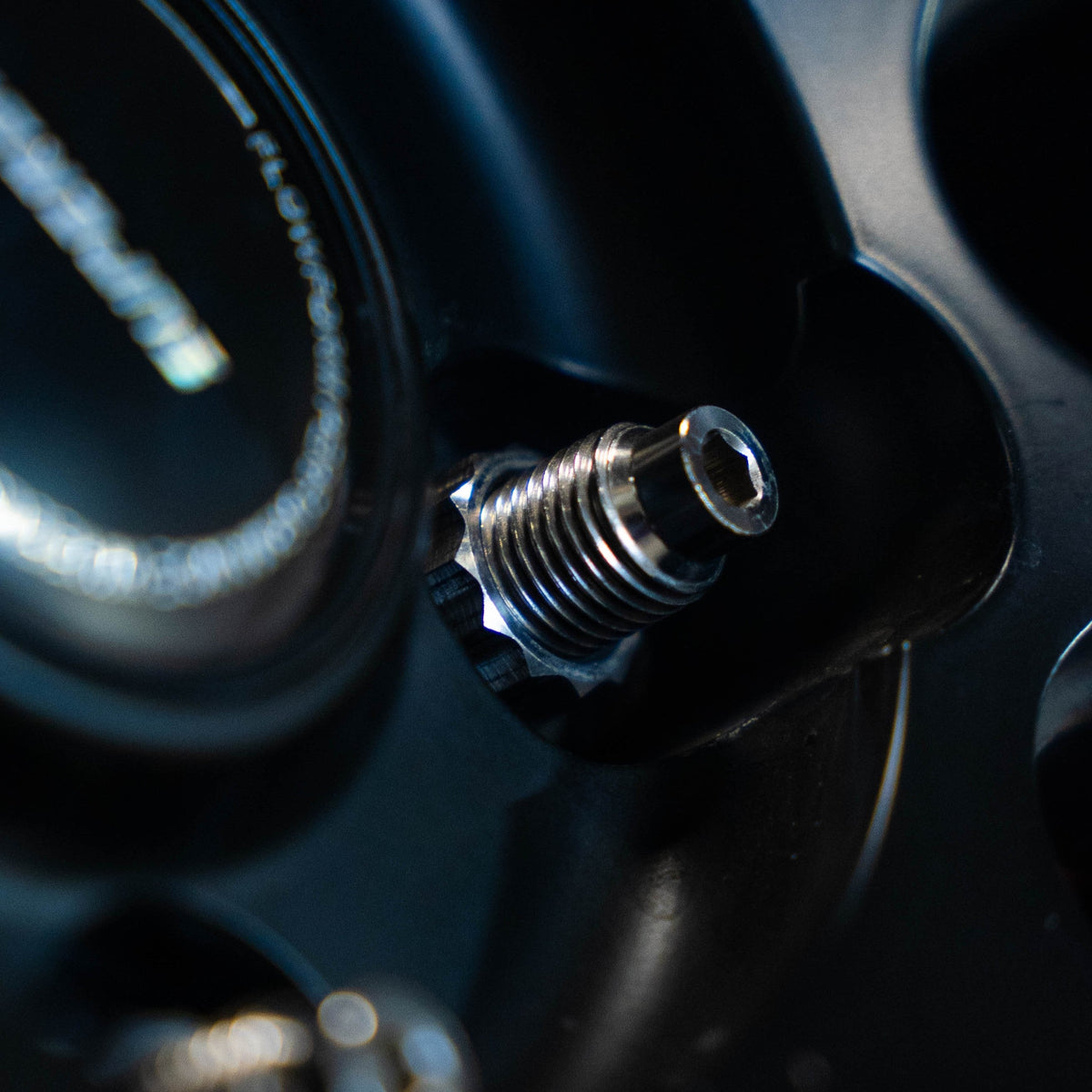

- Head: 17mm (12 point)

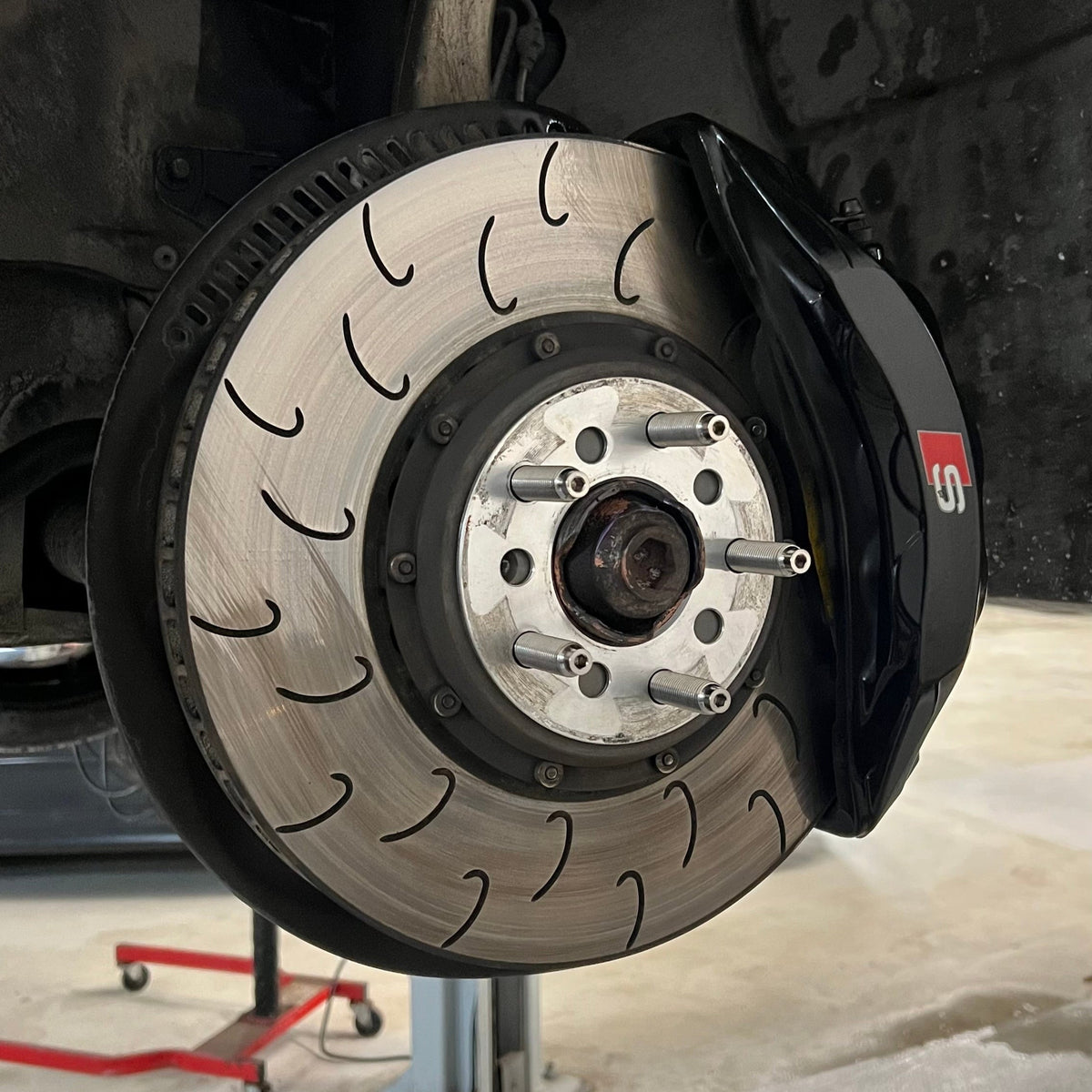

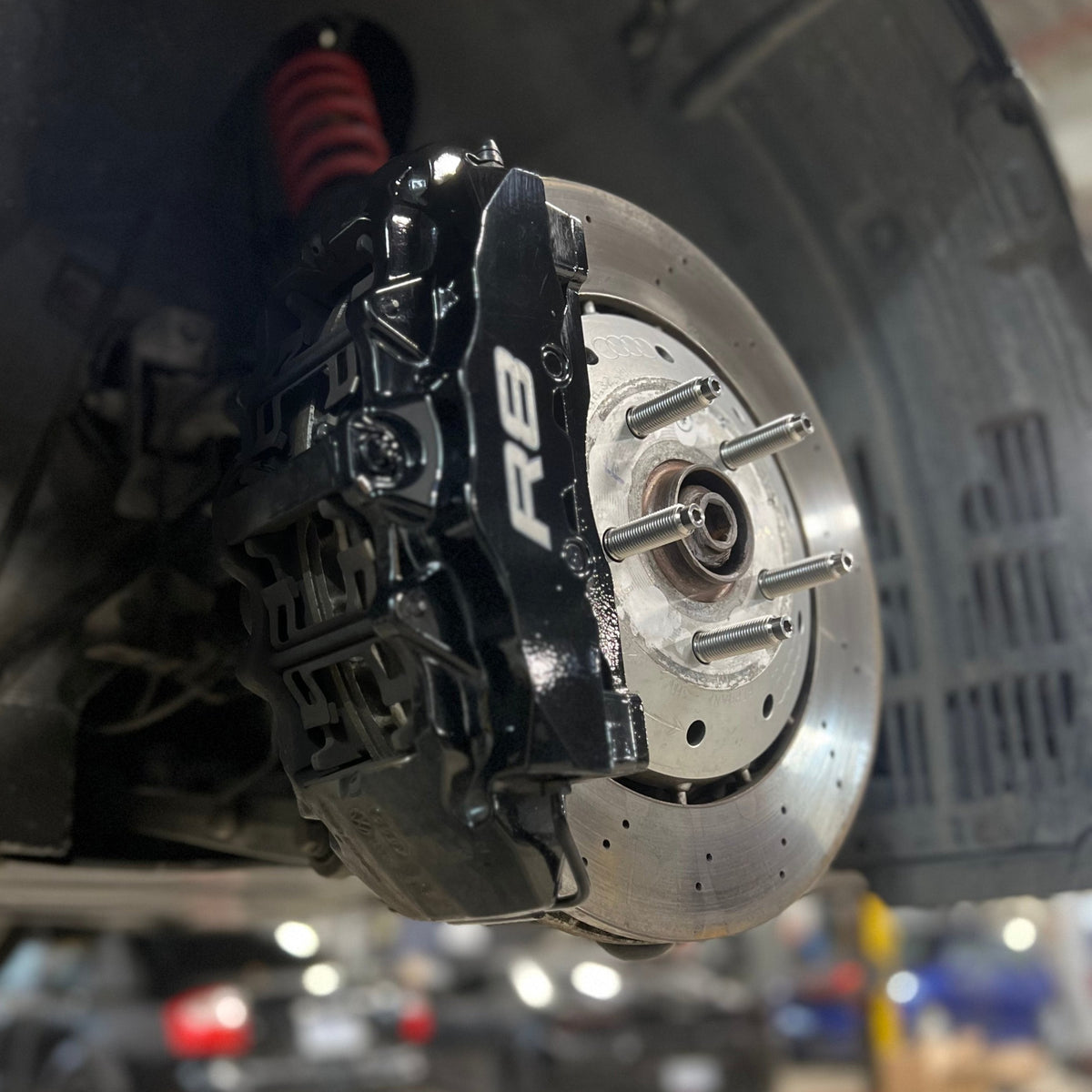

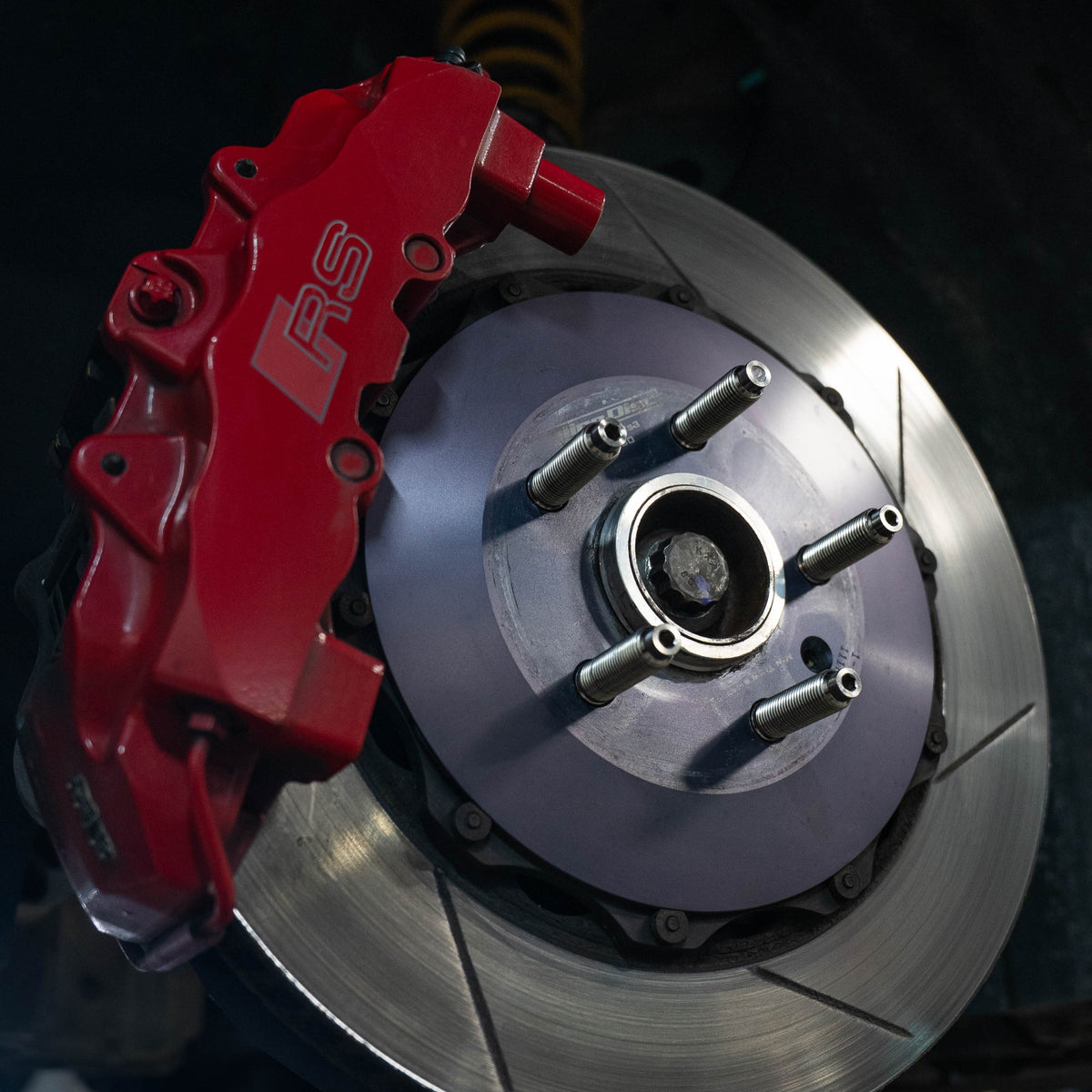

Installation:
- Remove wheels
- If your hubs are rusty, cleaning the threads with an M14x1.25 tap before installation is highly recommended
- Install GAS wheel studs with supplied loctite on short threads
- Torque studs into hubs to 15nm using a 4mm hex socket

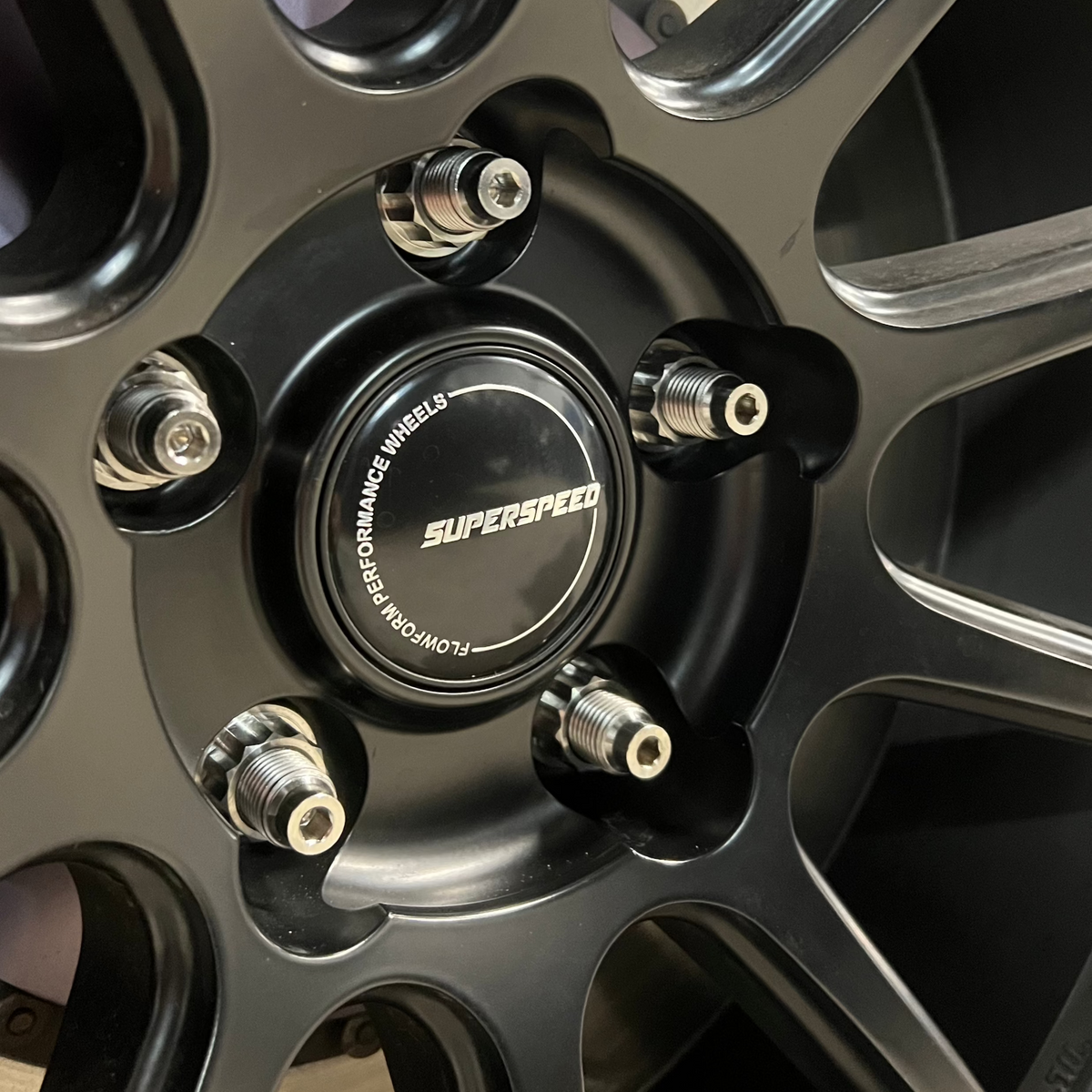

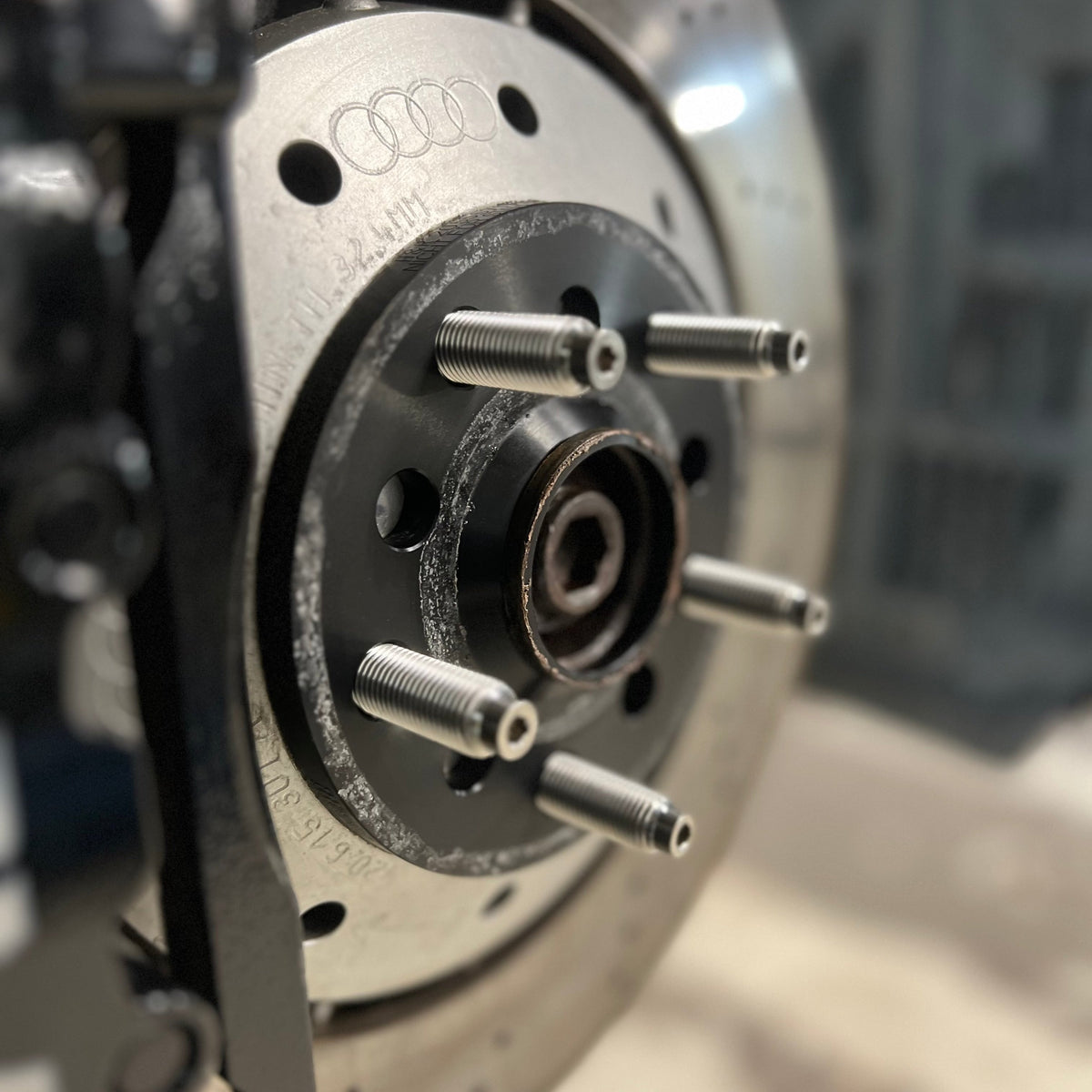

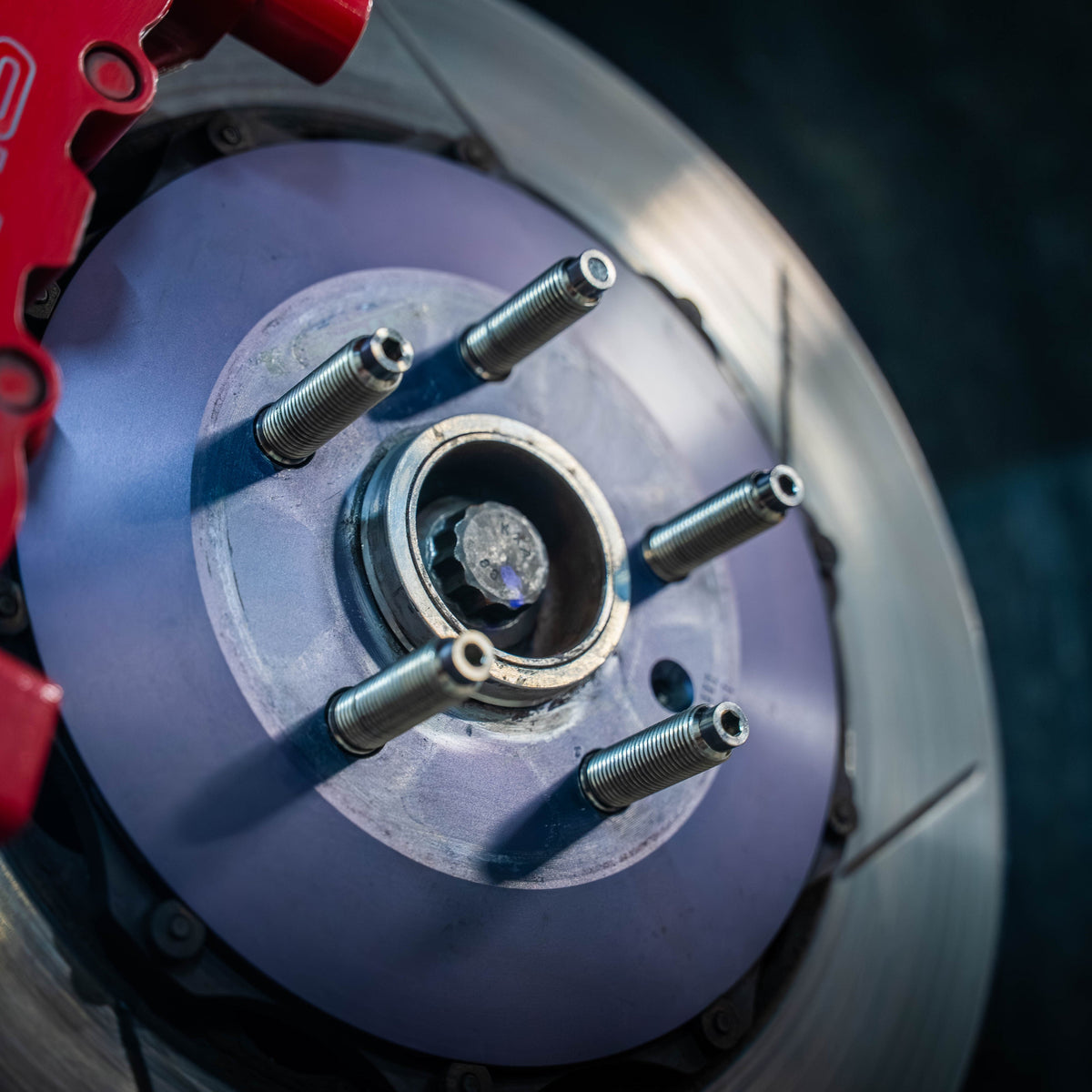

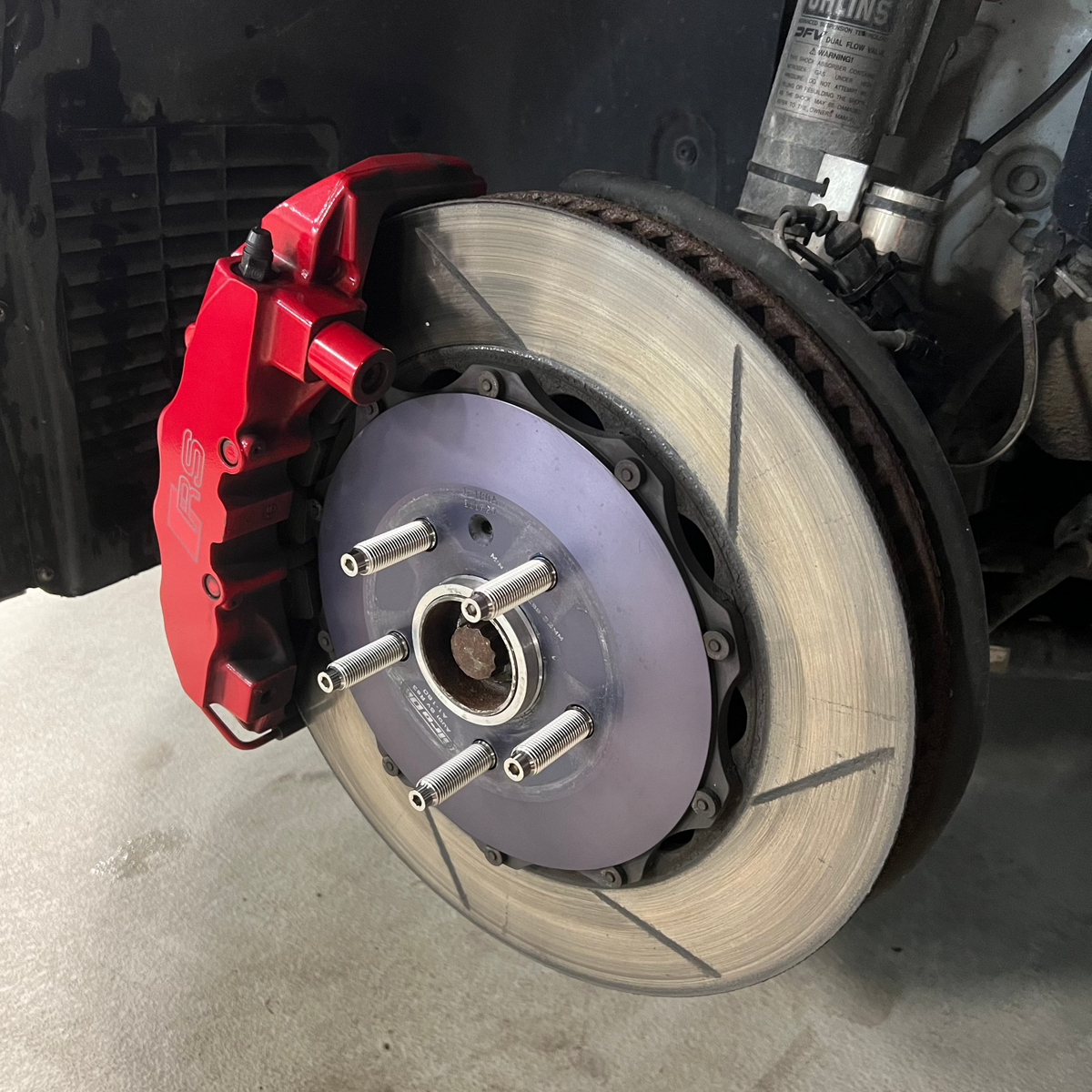

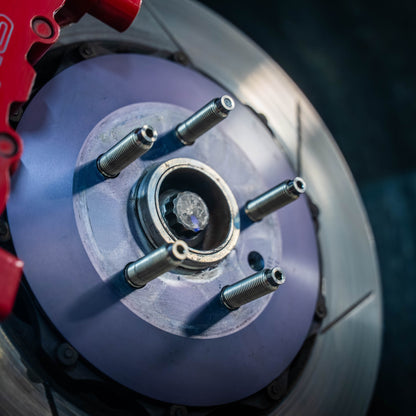

- Install spacers (if applicable) and wheels onto the new studs
-
Torque wheel nuts to factory specifications

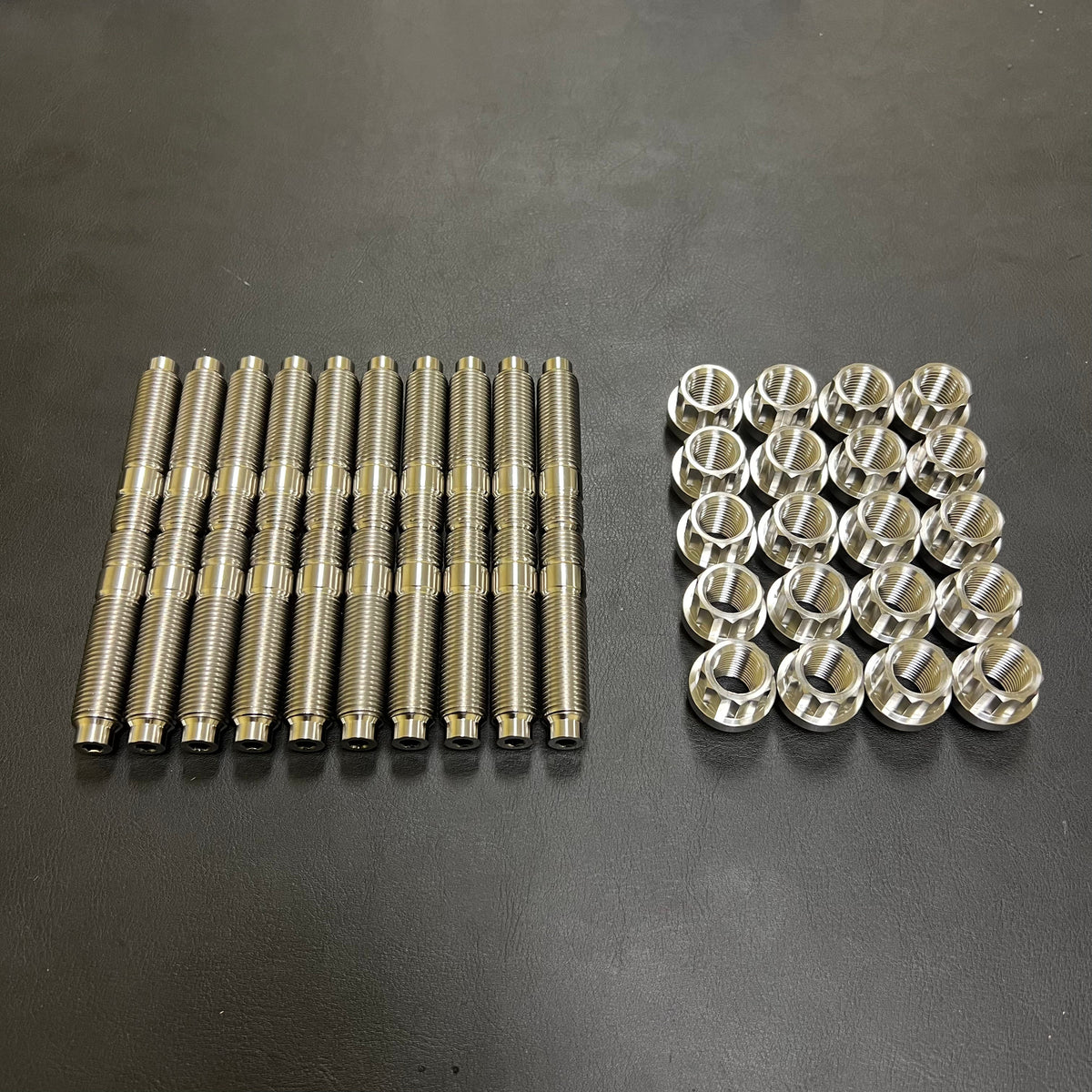

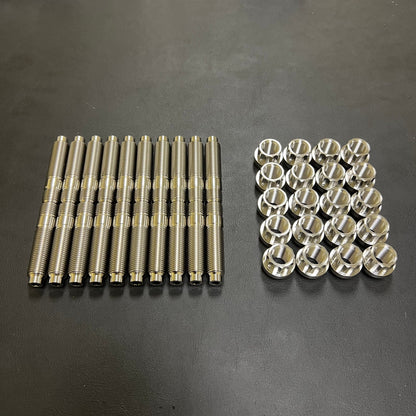

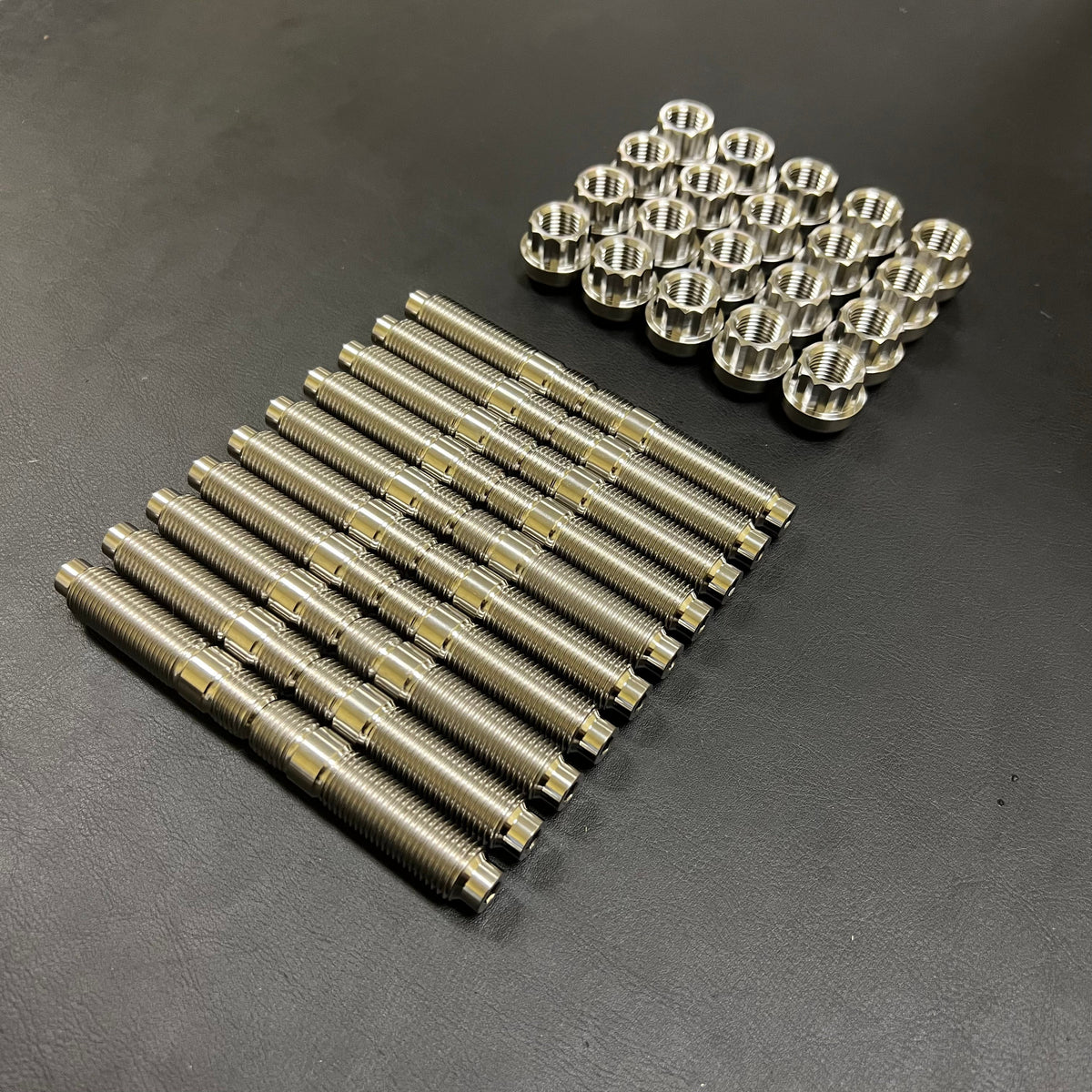

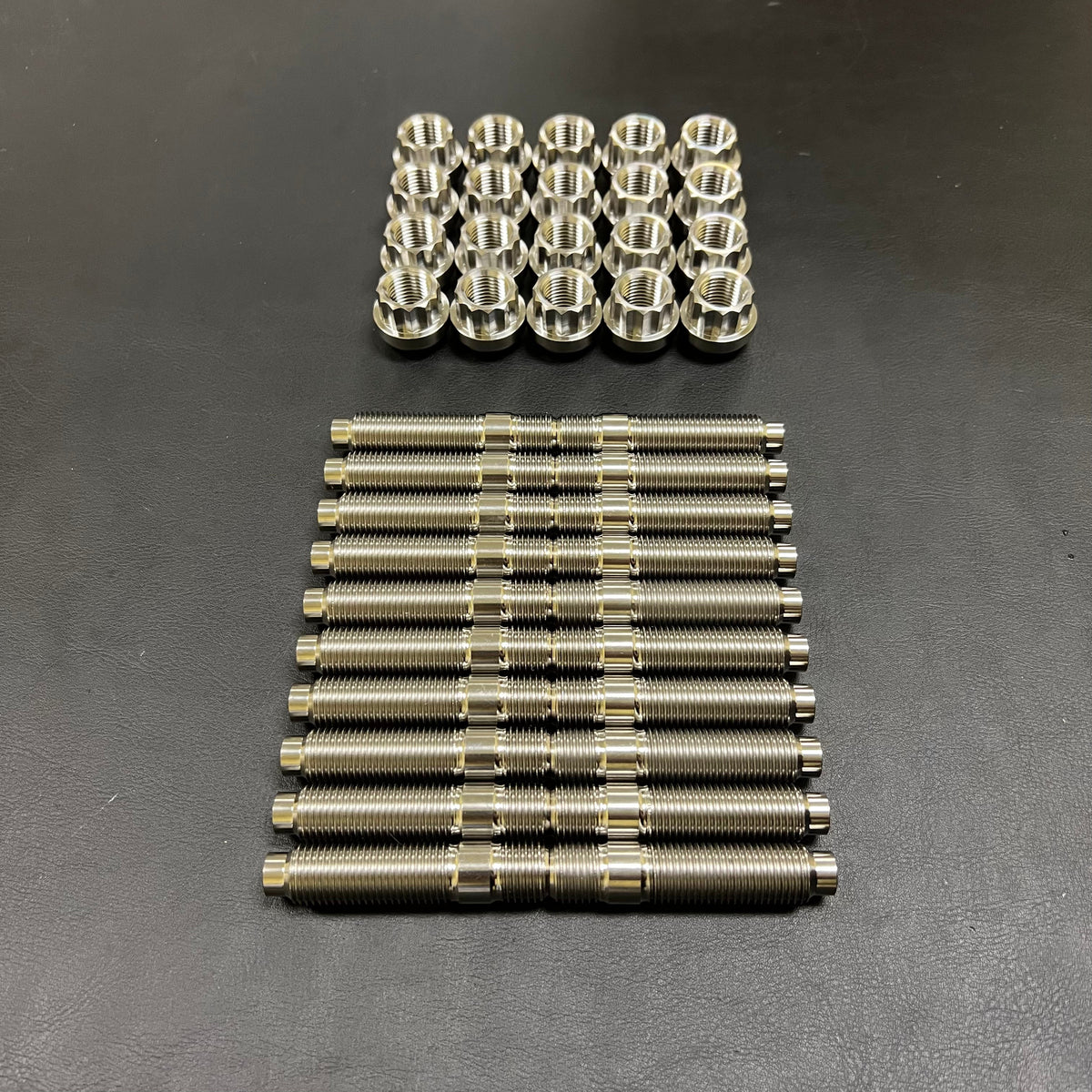

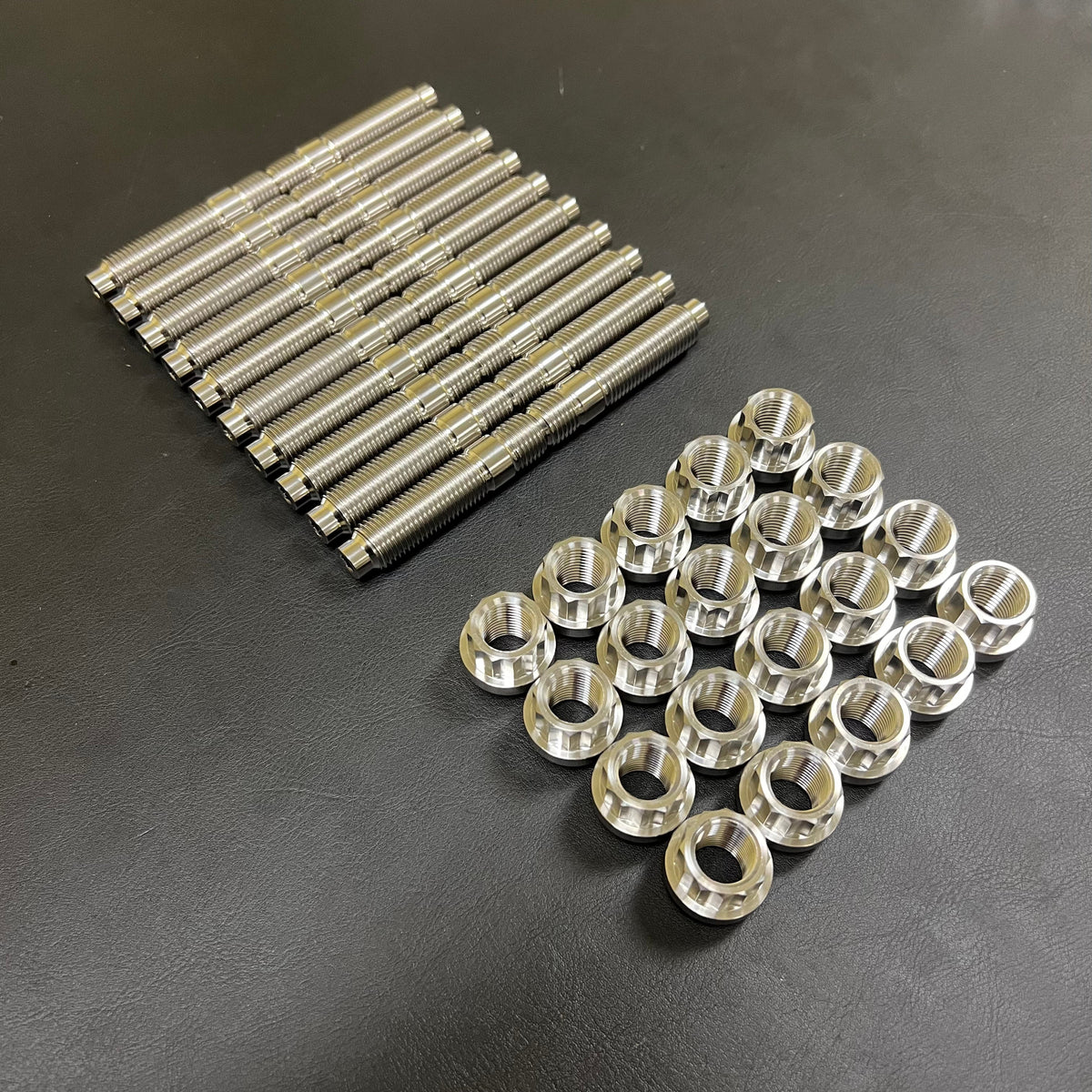

Includes:
- 20x M14x1.25 Titanium wheel studs
- 20x M14x1.25 Titanium wheel nuts
- Wheel nut socket
- Blue loctite
Fitment:
- All BMW platforms using M14x1.25 wheel bolts (earlier models use M12)
- Other makes/models using M14x1.5 wheel bolts
- More fitments added every day. Send us a message if you don’t see your vehicle listed
Note: If running aftermarket wheels, please verify your bolt/nut seat before ordering!
