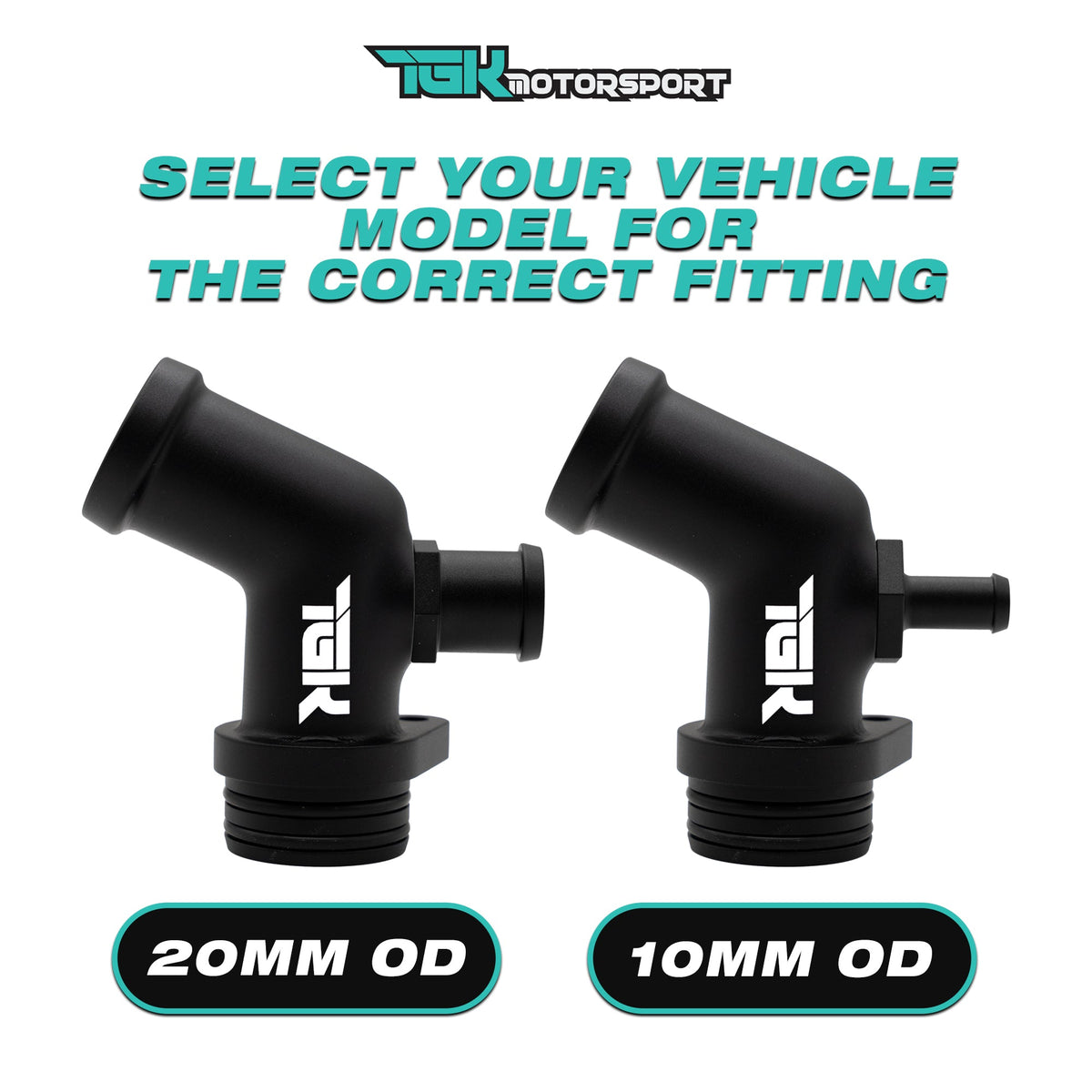

Audi 4.0T Front Billet Coolant Piping - 45 Degree Elbow 10MM Barb | Audi 4.0T | TGK Motorsport

Overview

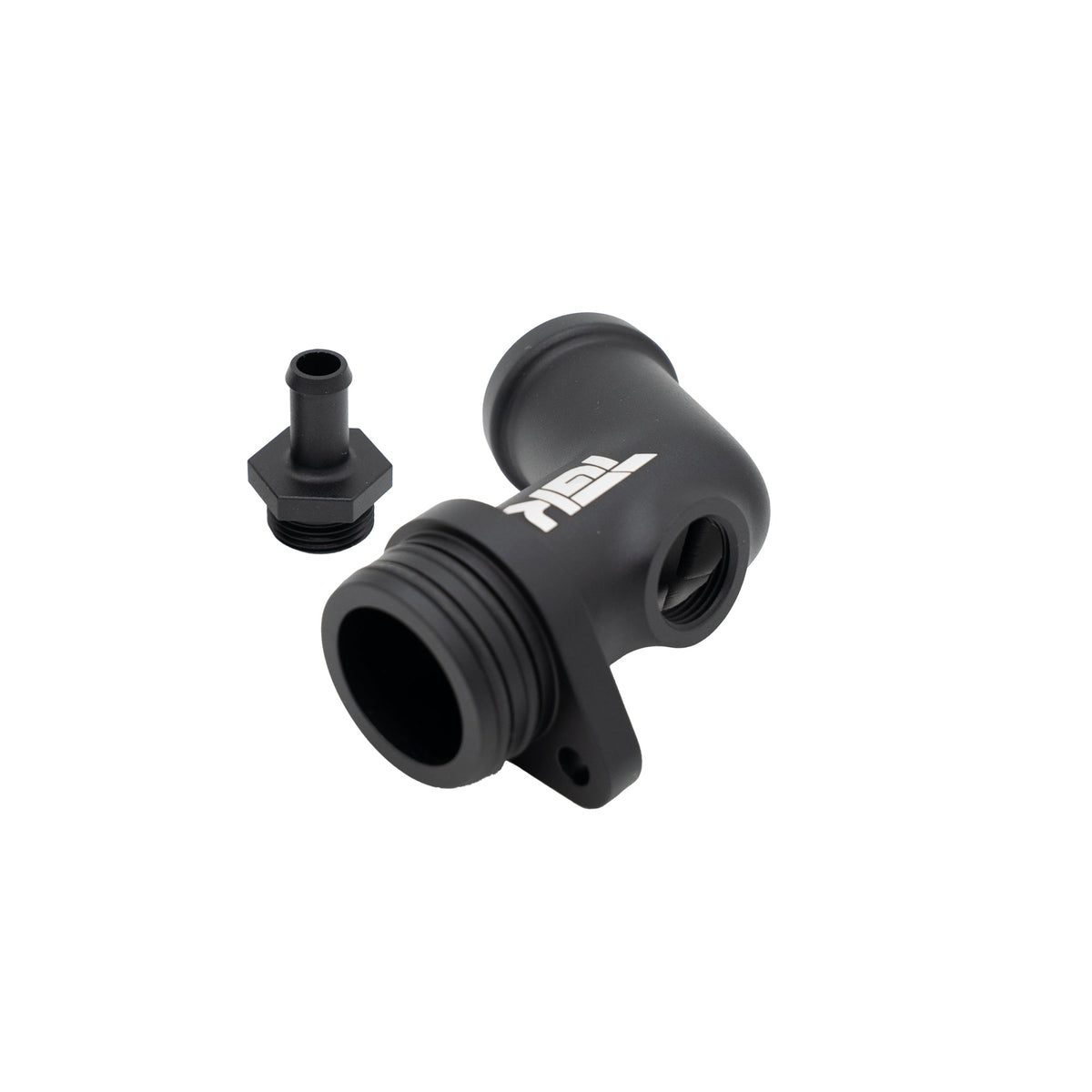

Eliminate a known source of coolant leaks with the TGK Motorsport 45° Billet Coolant Elbow — precision-machined from 6061-T6 aluminum and engineered with a dual-gasket sealing system for maximum reliability under pressure and temperature extremes.

The factory 45° coolant elbow on the Audi 4.0T platform uses a single O-ring and a plastic housing — a combination that's prone to failure over time due to heat cycling, vibration, and material fatigue. Cold weather start-ups often reveal slow leaks originating from this joint, which can be difficult to trace and progressively worsen with age. TGK Motorsport's solution replaces the OEM plastic part with a robust 6061-T6 billet aluminum elbow designed for long-term performance. Most importantly, it features a dual-gasket design that offers redundant sealing to eliminate coolant seepage and provide peace of mind — whether on a daily commute or under wide-open throttle. This is a must-have upgrade for anyone chasing down mystery coolant loss or proactively refreshing their 4.0T cooling system.

Details

Product specifications:

• Material: 6061-T6 Billet Aluminum
• Angle: 45 Degrees
• Sealing System: Dual-Gasket Design
• Application: Audi 4.0T Front Coolant System
• Installation Instructions: Available Online

Features and benefits:

• 6061-T6 Billet Aluminum Construction — Precision-machined from aerospace-grade aluminum for superior strength and thermal conductivity over OEM plastic.
• Dual-Gasket Sealing System — Redundant sealing design eliminates coolant seepage and provides maximum reliability under extreme conditions.
• Eliminates Known Leak Source — Replaces failure-prone OEM single O-ring and plastic housing combination that's susceptible to heat cycling.
• Cold Weather Reliability — Engineered to withstand temperature extremes and prevent slow leaks during cold start-up conditions.
• Long-Term Performance — Built to resist material fatigue and vibration damage for dependable operation over years of service.
• Direct OEM Replacement — Drop-in replacement for factory 45° coolant elbow with no modifications required for installation.

Fitment
