SüperDüper Turbo Inlet Pipe for Audi B9/B9.5 S4/S5/SQ5 3.0T

63mm Pure 750 Adapter Ring BACKORDERED: Orders placed today will hold your spot in line for the next available units, Early April 2025 ETA

The 034Motorsport SüperDüper Turbo Inlet Pipe Kit for the EA839 3.0T powered Audi S4/S5/SQ5 is an essential upgrade to optimize power by eliminating a critical flow restriction in the intake tract when running various Stage 3 Hybrid Turbocharger options. The 034Motorsport SüperDüper Turbo Inlet Pipe is designed to maximize performance for Dynamic+ Stage 3 Hybrid Turbo Tuning Software.

Select above for appropriate Intake Conversion Kits for S34, X34, or P34 on B9/B9.5 S4/S5 or S34/X34 for B9/B9.5 SQ5, as well as additional Adapter Ring sizing for TTE710/TTE810, Pure750, or TS2. The Stock Turbo Adapter Ring is included with the SüperDüper Turbo Inlet Pipe.

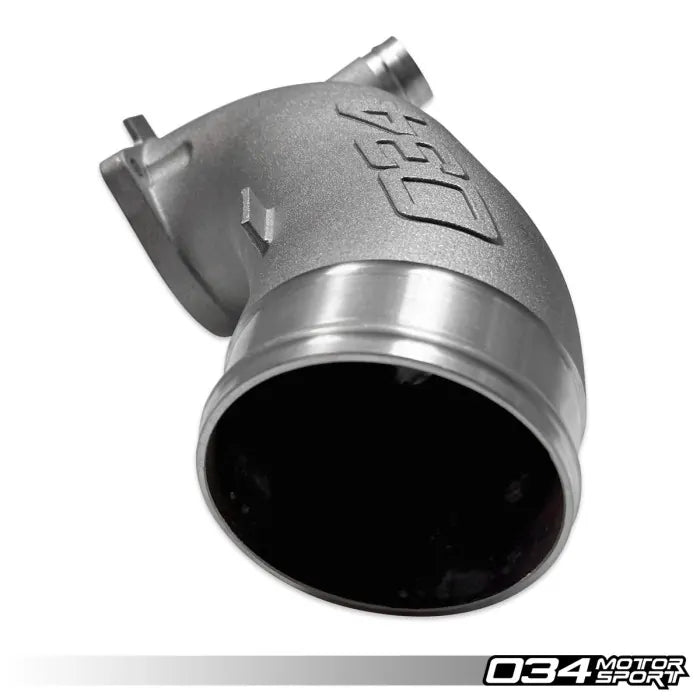

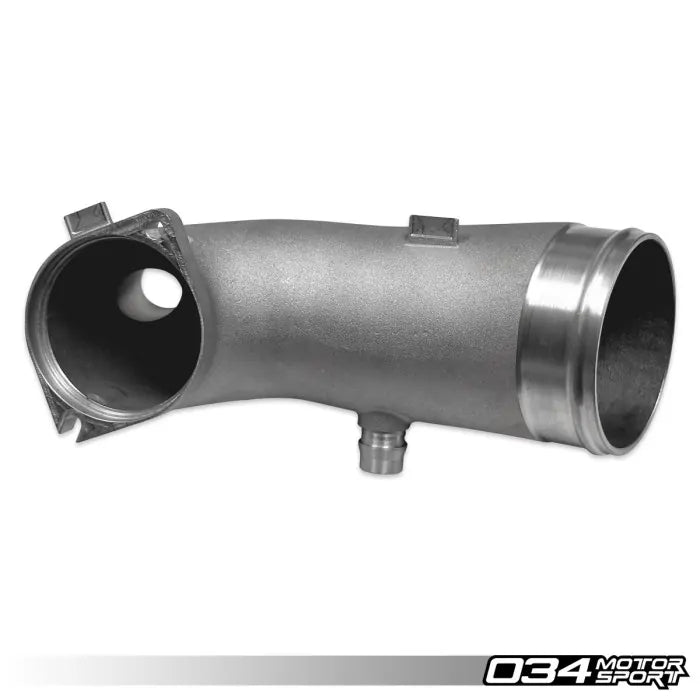

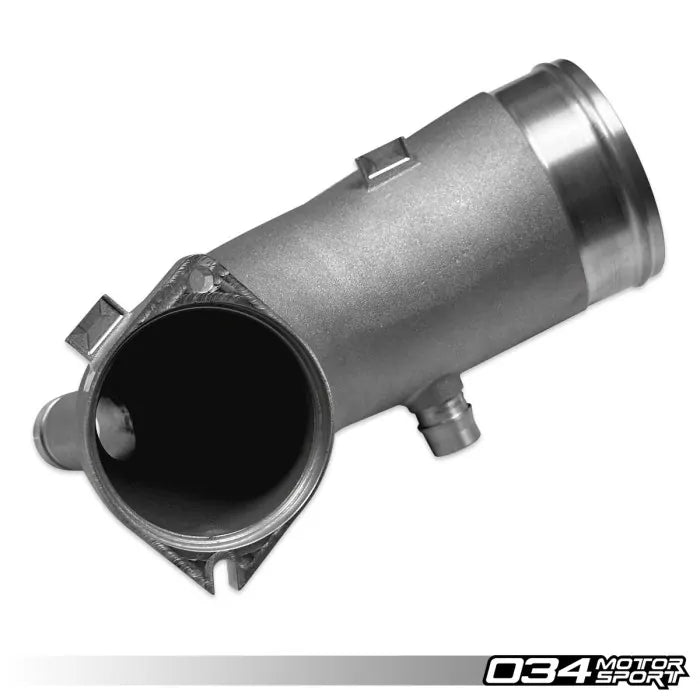

The 034Motorsport SüperDüper Turbo Inlet Pipe Kits for the EA839 3.0T powered Audi S4/S5/SQ5 are an essential upgrade to optimize power by eliminating a critical flow restriction in the intake tract when running Stage 3 Hybrid Turbochargers. The massive 85mm 034Motorsport SüperDüper Turbo Inlet Pipe is designed to maximize performance for Dynamic+ Stage 3 Hybrid Turbo Tuning Software. The CNC machined edge retains the silicone hose securely to the turbo inlet pipe. The final touch is an embossed 034 logo to show unsuspecting car show attendees that you value substantive modifications on your 3.0T powered Audi.

CONVERSION KITS:

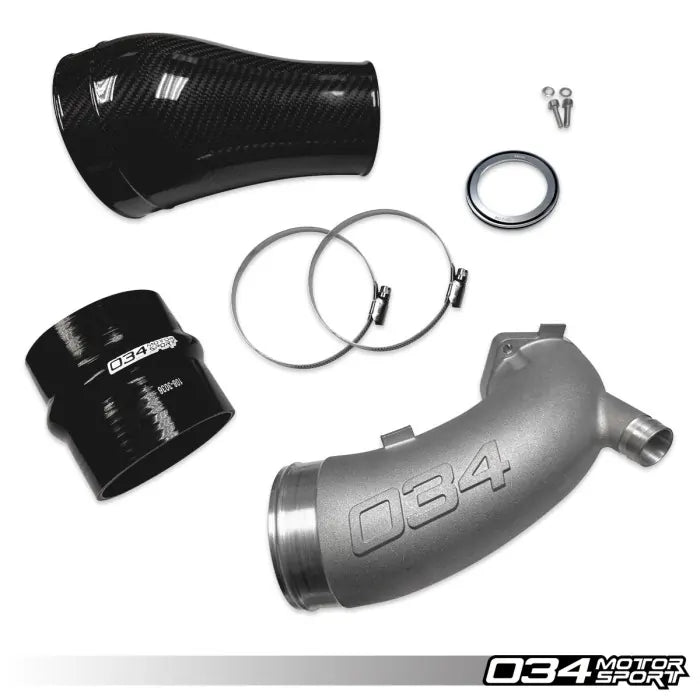

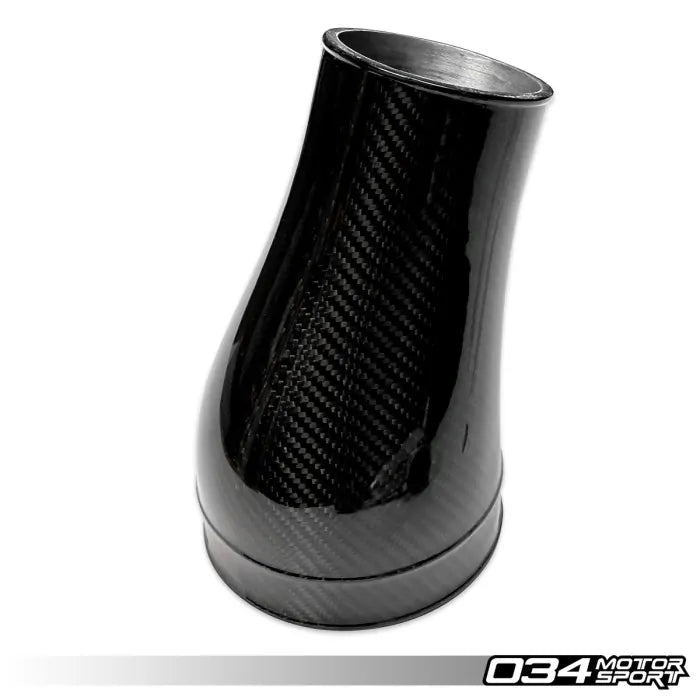

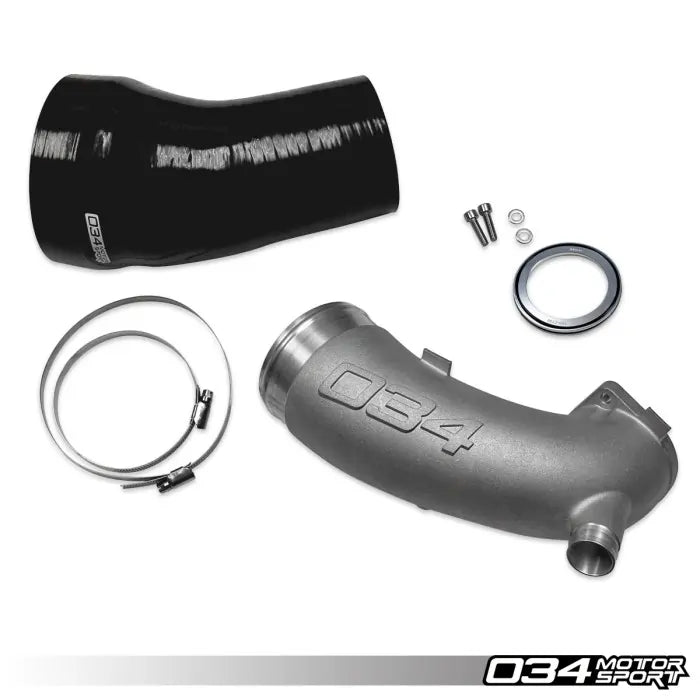

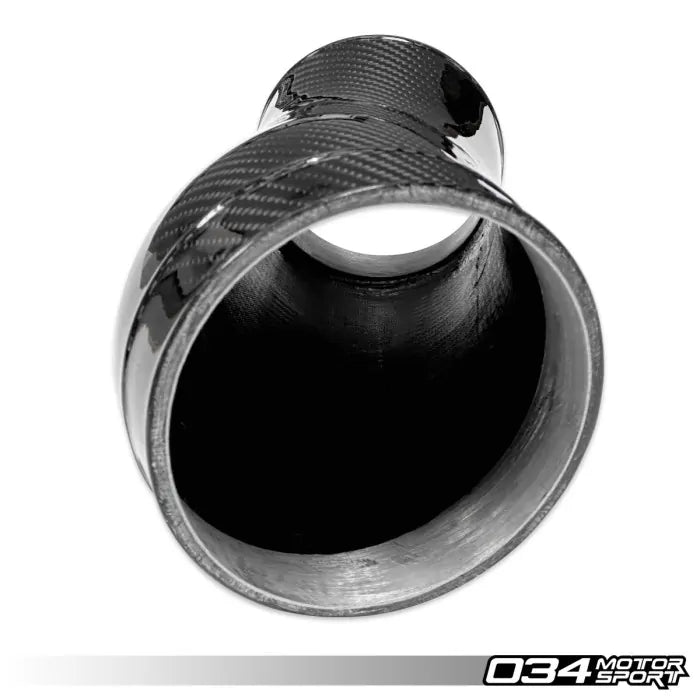

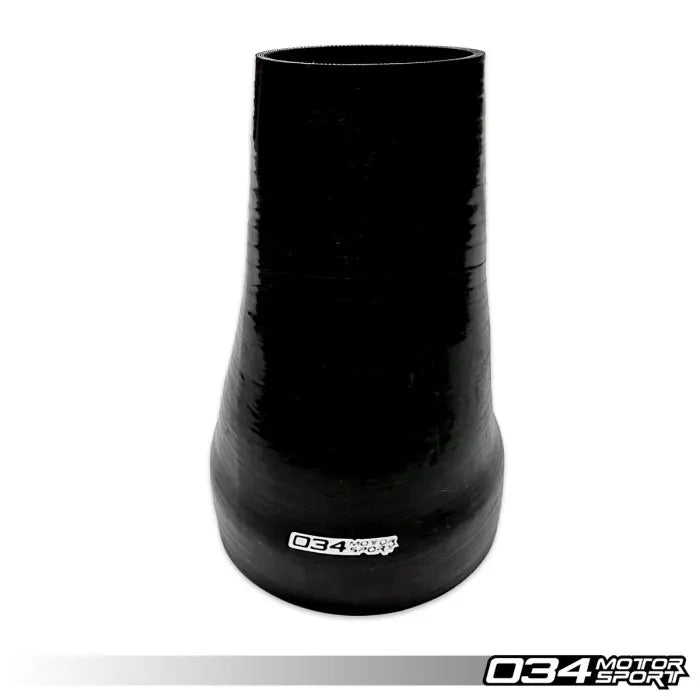

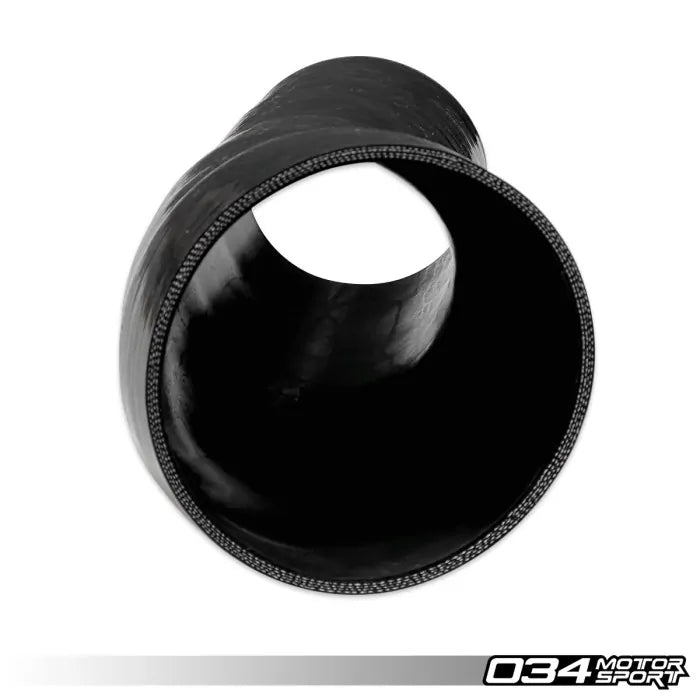

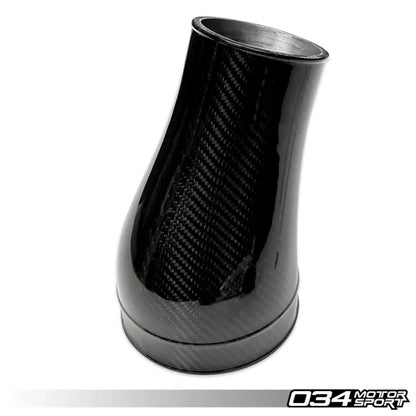

The SüperDüper Turbo Inlet Pipe Conversion Kits are designed to work with the 034Motorsport S34, X34 & P34 Intakes for B9/B9.5 S4/S5, and S34 & X34 for B9/B9.5 SQ5 Intakes to convert them from a stock turbo sized inlet to our larger SüperDüper Turbo Inlet Pipe. The massive SüperDüper Turbo Inlet Pipe requires these larger intake components to maximize the airflow of your existing 034Motorsport Intake Systems.

FEATURES:

• Cast from A356 Aluminum
• Compressor Inlet Flange Adapter Machined for Smooth Airflow Into Compressor Housing
• CNC Machined 6061-T6 Aluminum Turbo Inlet Adapter to Match Turbo Inlet for Maximum Airflow
• Includes Stock Turbo Inlet Adapter Ring, Optional Adapter Rings Available
• Increased Flow Over Factory Turbo Inlet
• CNC Machined
  • Edge Retains Intake Coupler Securely
  • Retain OE PCV Hose
  • To Retain Factory Wiring Harness Retention Clips
• Proven Power/Torque, and Airflow Gains
  • Stock Turbo Inlet: 396CFM @ 28"H²O
  • 034 SüperDüper Turbo Inlet Pipe w/ 54mm Stock Turbo Adapter: 452 CFM @ 28"H²O
  • 034 SüperDüper Turbo Inlet Pipe w/ 61.2mm TS2 Turbo Adapter: 563 CFM @ 28"H²O
  • 034 SüperDüper Turbo Inlet Pipe w/ 63mm Pure 750 Turbo Adapter: 603 CFM @ 28"H²O
  • 034 SüperDüper Turbo Inlet Pipe w/ 66mm TTE710/TTE810 Turbo Adapter: 617 CFM @ 28"H²O
• Slotted Lower Turbo Inlet Bolt for Easy Installation
• Direct Bolt-on Installation

OE PART INTERCHANGE:

• 06M 129 665 AL
• 06M 129 041

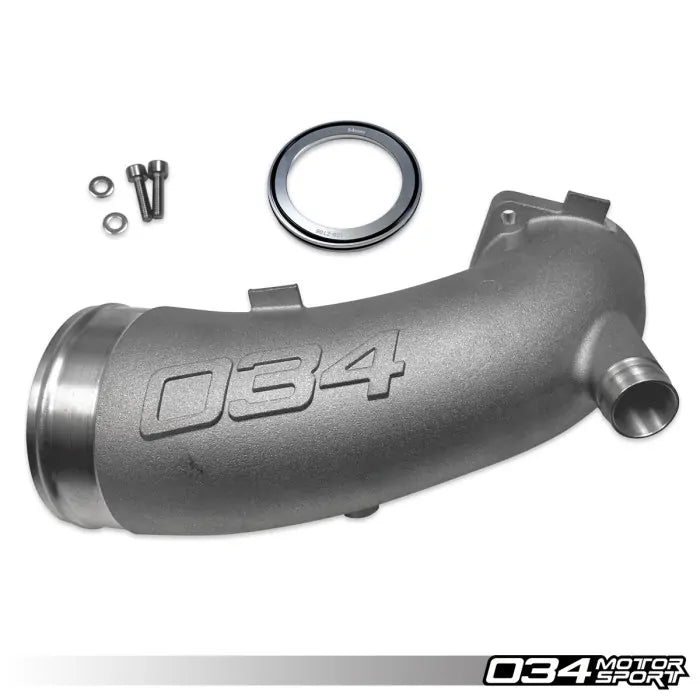

WHAT’S INCLUDED:

• SüperDüper Turbo Inlet Pipe

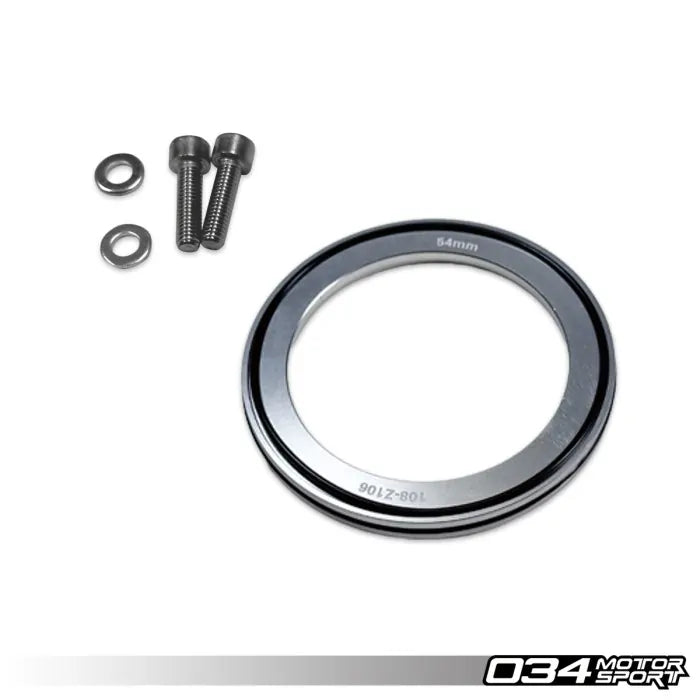

• Stock Turbo Adapter Ring, with O-rings
• All Necessary Hardware
