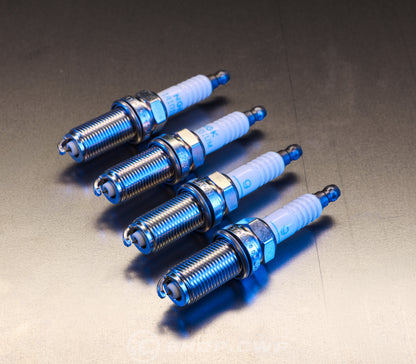

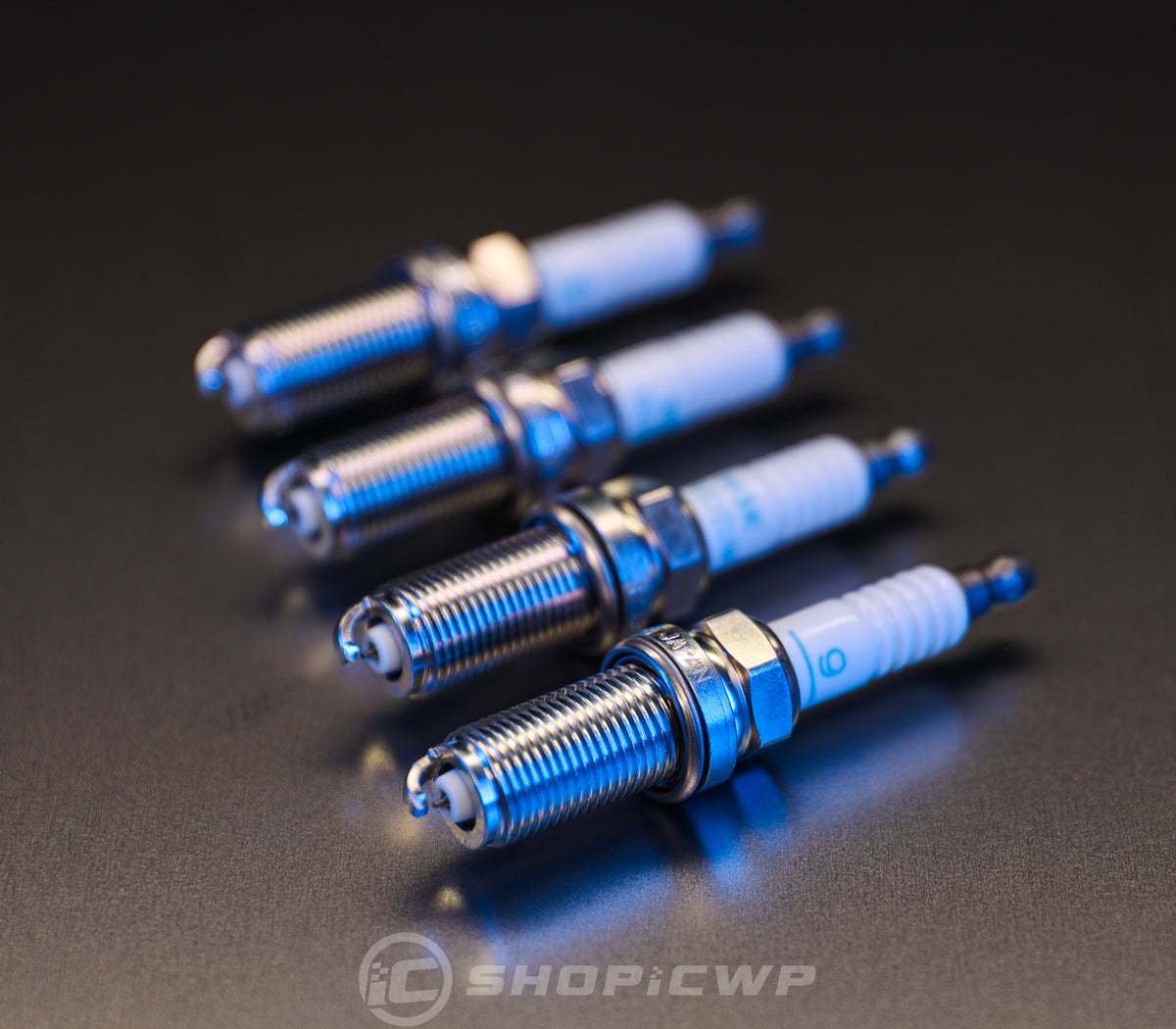

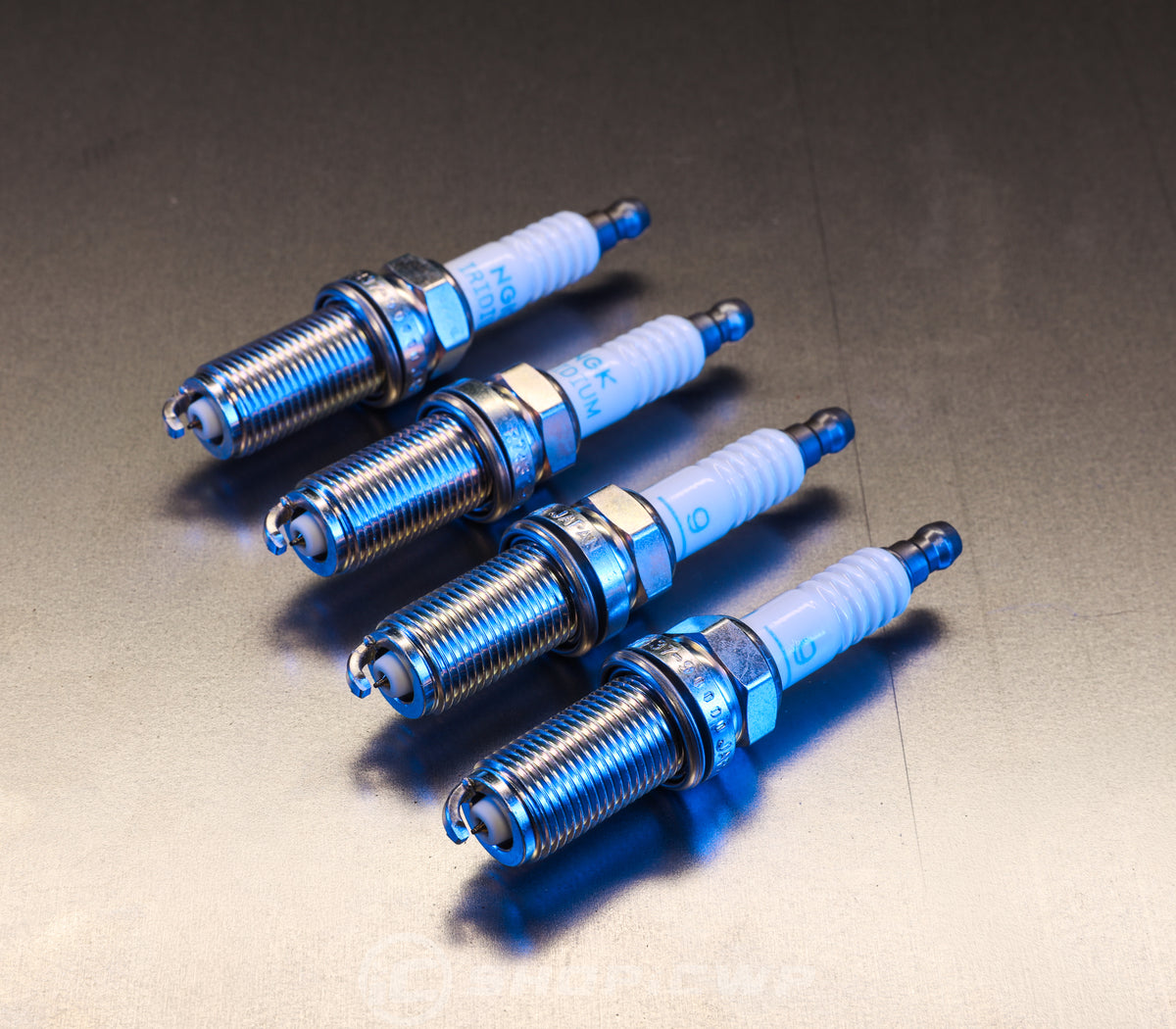

R7437-9 Spark Plug Set | VW/Audi EA888 2.0T | NGK

Overview

Upgrade the ignition system on your modified Audi or Volkswagen with NGK Racing R7437-9 Spark Plugs. Designed for high-performance applications, these racing plugs feature a fine-wire iridium center electrode engineered to provide consistent spark performance under demanding engine loads.

The R7437-9 is a colder heat-range spark plug commonly used on tuned turbocharged engines where increased boost and cylinder pressures place greater demands on the ignition system. Its specialized insulator design promotes throttle response, while the ceramic insulator and copper core help manage heat under high-load operation.

Available in sets of four or five plugs, the NGK R7437-9 provides a convenient option for compatible four-cylinder and five-cylinder Audi/VW applications. These plugs are particularly suited to modified vehicles when the engine calibration and operating conditions call for this heat range.

Details

• Manufacturer: NGK Racing
• Part Number: R7437-9
• NGK Stock Number: 4654
• Plug Type: Racing spark plug
• Center Electrode: Fine-wire iridium
• Heat Range: NGK 9
• Thread Diameter: 14 mm
• Thread Pitch: 1.25 mm
• Reach: 26.5 mm
• Hex Size: 16 mm
• Seat Type: Gasket
• Resistor: Yes, 5 kOhm
• Reference Gap: 0.7 mm (0.028 in)
• Available Quantities: Set of 4 or Set of 5

Racing Spark Plug Design

NGK Racing spark plugs are designed for demanding engine operating conditions. The fine-wire iridium center electrode promotes ignitability, while the specialized insulator nose helps improve throttle response. A copper core assists heat removal, and the alumina-silicate ceramic insulator provides electrical insulation, strength, and heat-transfer performance.

Choosing the Correct Heat Range

The NGK R7437-9 is a cold-running racing plug intended for applications that require a high-performance heat range. It is not a universal replacement for the factory spark plug. Confirm that heat range 9 is appropriate for your engine, boost level, fuel, and ECU calibration before ordering.

Installation Note: The listed 0.7 mm gap is a reference specification. Verify the required gap with your tuner or engine builder, and inspect each plug before installation. Use the correct torque specification for the engine and cylinder-head material.

Fitment

The NGK R7437-9 is listed for selected Audi and Volkswagen turbocharged applications, including compatible EA888 Gen 3 1.8T/2.0T engines and selected 2.5T applications. Some fitment catalogs also list Audi B9 S4/S5 3.0T applications.

Volkswagen: Golf GTI MK7/MK7.5, Golf R MK7/MK7.5, GTI MK8, Golf R MK8, GLI MK7, Arteon 2.0T, selected Jetta 1.8T/2.0T, Golf 1.8T, Golf SportWagen 1.8T, and Alltrack 1.8T applications.

Audi: A3 8V/8Y 1.8T/2.0T, S3 8V/8Y 2.0T, RS3 8V/8Y 2.5T, TT/TTS 8S 2.0T, TTRS 8S 2.5T, A4/A5 B9 2.0T, Q5 B9 2.0T, and selected B9 S4/S5 3.0T applications.

Quantity Selection: Select a set of four for compatible four-cylinder engines or a set of five for compatible five-cylinder engines. Confirm the correct plug application and heat range for your specific engine and tune before ordering.

Important: Fitment varies by engine code, model year, and calibration. This is a racing heat-range spark plug, and the applications listed above should be verified against the vehicle and tuner requirements before installation.
