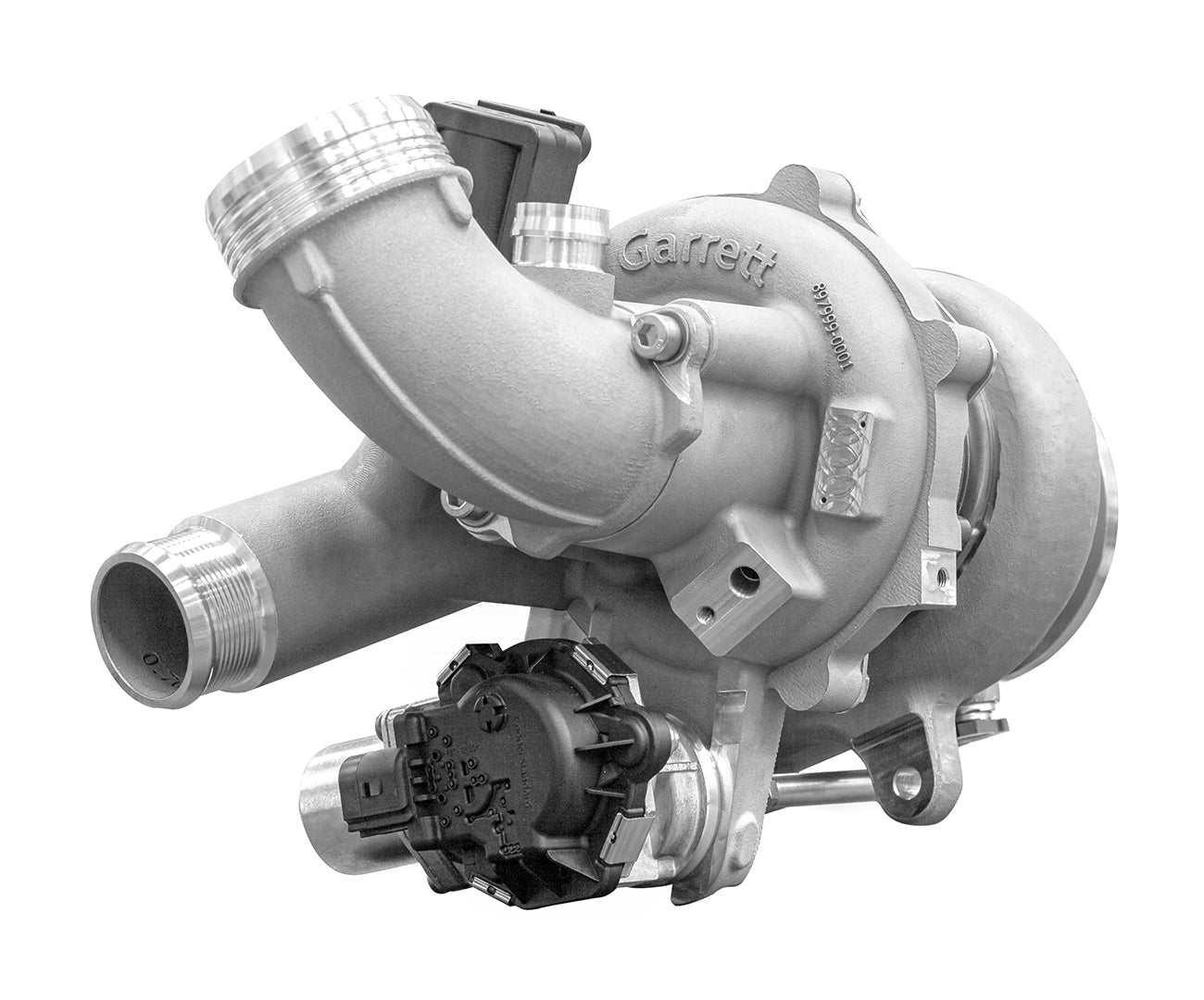

PowerMax GT2260S Turbocharger | 2.0T VW MK7 Golf R, GTI, GLI & Audi 8V A3, S3 | Garrett

Overview

Bolt-in upgrade for factory MK7/8V turbochargers

Details

• GTX (gen 2) compressor aerodynamics; Mar-M alloy turbine wheel with stainless steel twin-scroll housing
• 360-degree reinforced thrust bearing; assembled in Japan
• 17% higher flow than factory IS38 (Golf R/S3) turbo
• Includes complete GT2260S turbocharger, proprietary cast turbo inlet pipe, diverter valve, wastegate assembly
• Compressor: 47mm inducer, 60mm exducer, trim 62, A/R 0.70, flow 42 lbs/min
• Turbine: 50mm inducer, 45mm exducer, trim 81, A/R 0.64, flow 16 lbs/min
• Requires Stage 3 engine tune, transmission tune, air intake, intercooler, HPFP, and high-flow downpipe to realize full potential
• Fitment: VW Golf R (2015-2019 MK7), GTI (2015-2021 MK7/7.5), GLI (2015-2022 MK7.5), Audi S3 (2015-2017 8V/8.5), Audi A3 2.0T AWD only (2015-2021 8V/8.5)
