Description
The CTS JB600 Turbocharger is CTS Turbo’s latest premium hybrid turbo upgrade engineered specifically for MQB platform vehicles. Designed as a direct bolt-on replacement for factory IS12, IS20, and IS38 turbochargers, the JB600 delivers an ideal balance of fast spool, impressive mid-range torque, and reliable high-performance power delivery for both street and enthusiast builds.
Built around a reinforced journal bearing CHRA based on the proven IS38 design, the JB600 features upgraded thrust bearings and enlarged thrust collars to handle increased load under high boost conditions. CTS also increased the internal oil passages to improve lubrication efficiency and durability during demanding operation. Paired with a stainless steel exhaust housing and larger compressor and turbine wheels, this turbocharger was developed and tested extensively across multiple climates and elevations to ensure consistent performance worldwide.
The JB600 is capable of producing up to approximately 600 crank horsepower, with supporting modifications and proper tuning. Expect around 520–530WHP on E85 fuel and approximately 430–460WHP on 93 octane pump gas. Its design prioritizes quick response and strong street performance without sacrificing top-end capability.
For optimal efficiency and reliability, CTS recommends operating within a boost range of 25–28 PSI depending on fueling and engine setup. Exceeding the recommended boost range may reduce turbo efficiency and overall performance.
Features:
- Perfect street turbocharger upgrade, fantastic spool and mid-range response
- Journal bearing direct-fit CHRA (compatible with all factory oil and coolant lines)

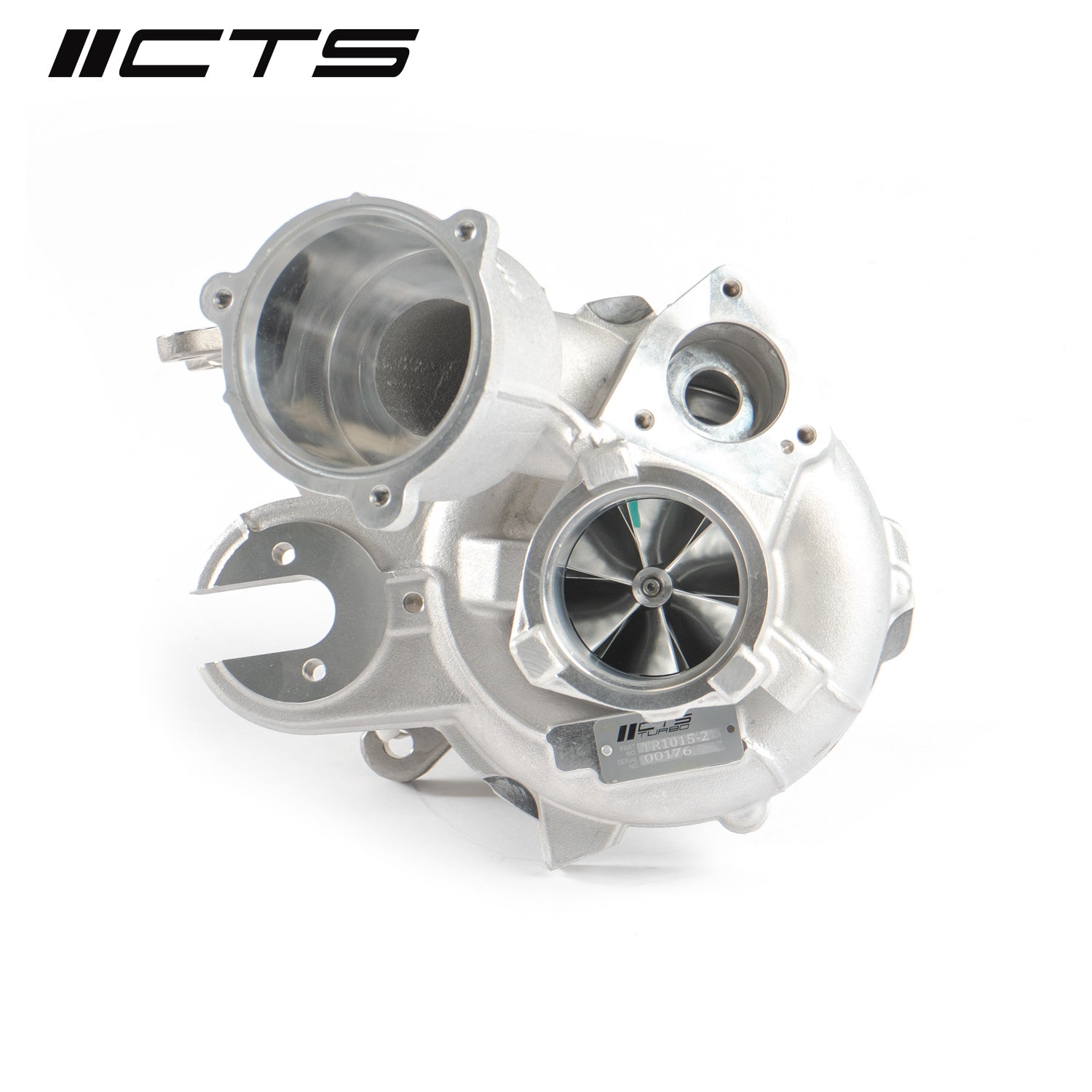

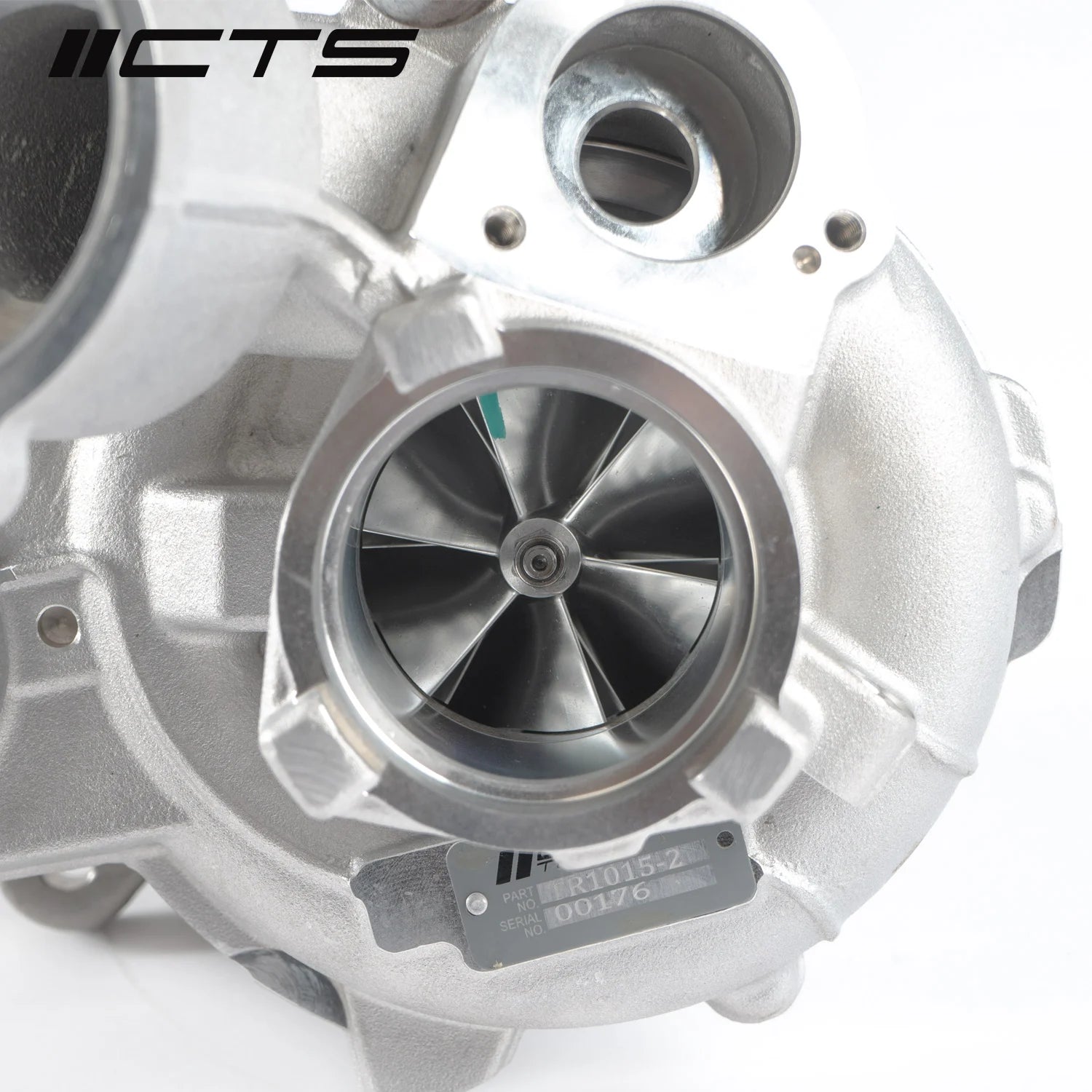

- Billet reverse rotation compressor wheel, 53.1mm inducer, 71mm-76mm exducer with extended tip (6+6 blade configuration)

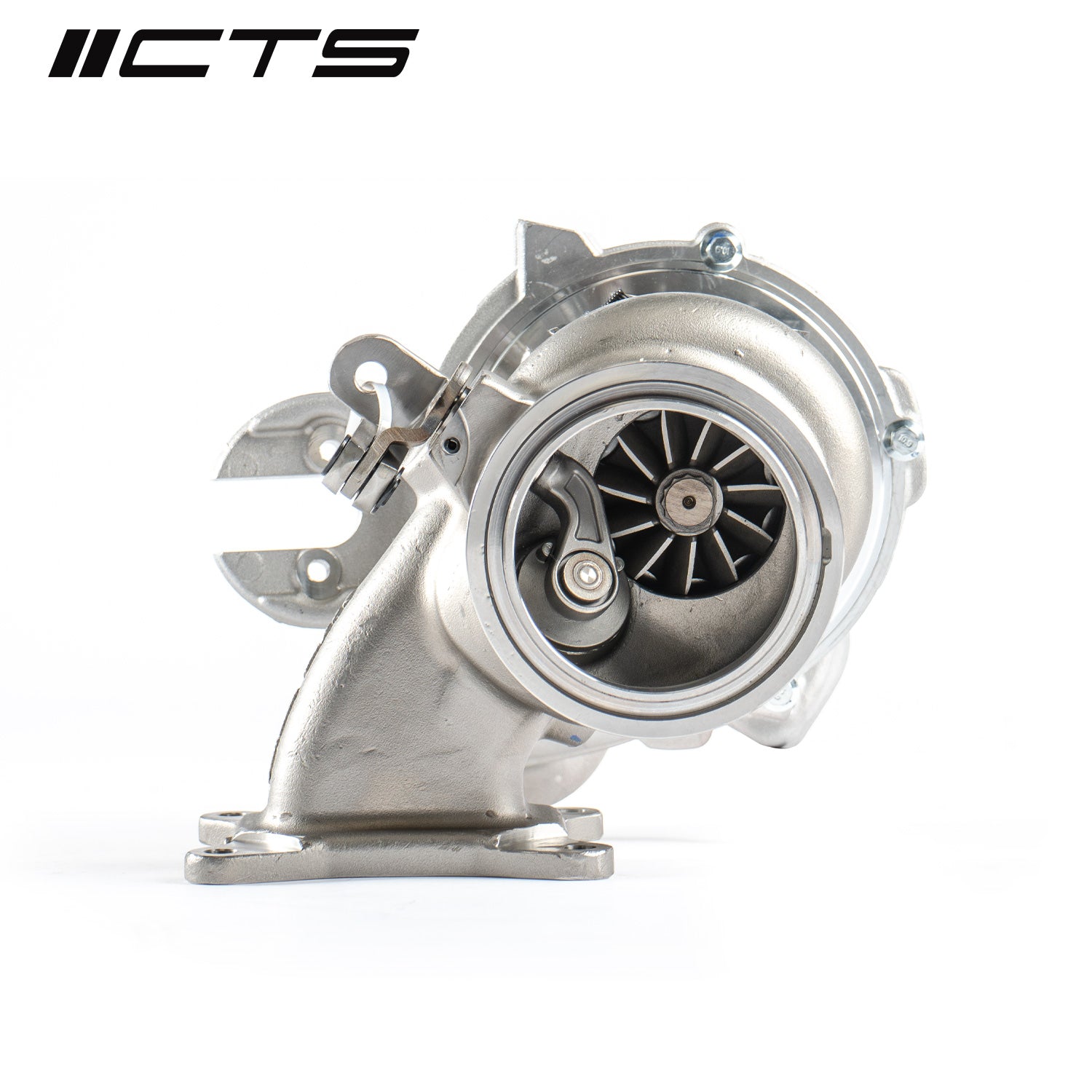

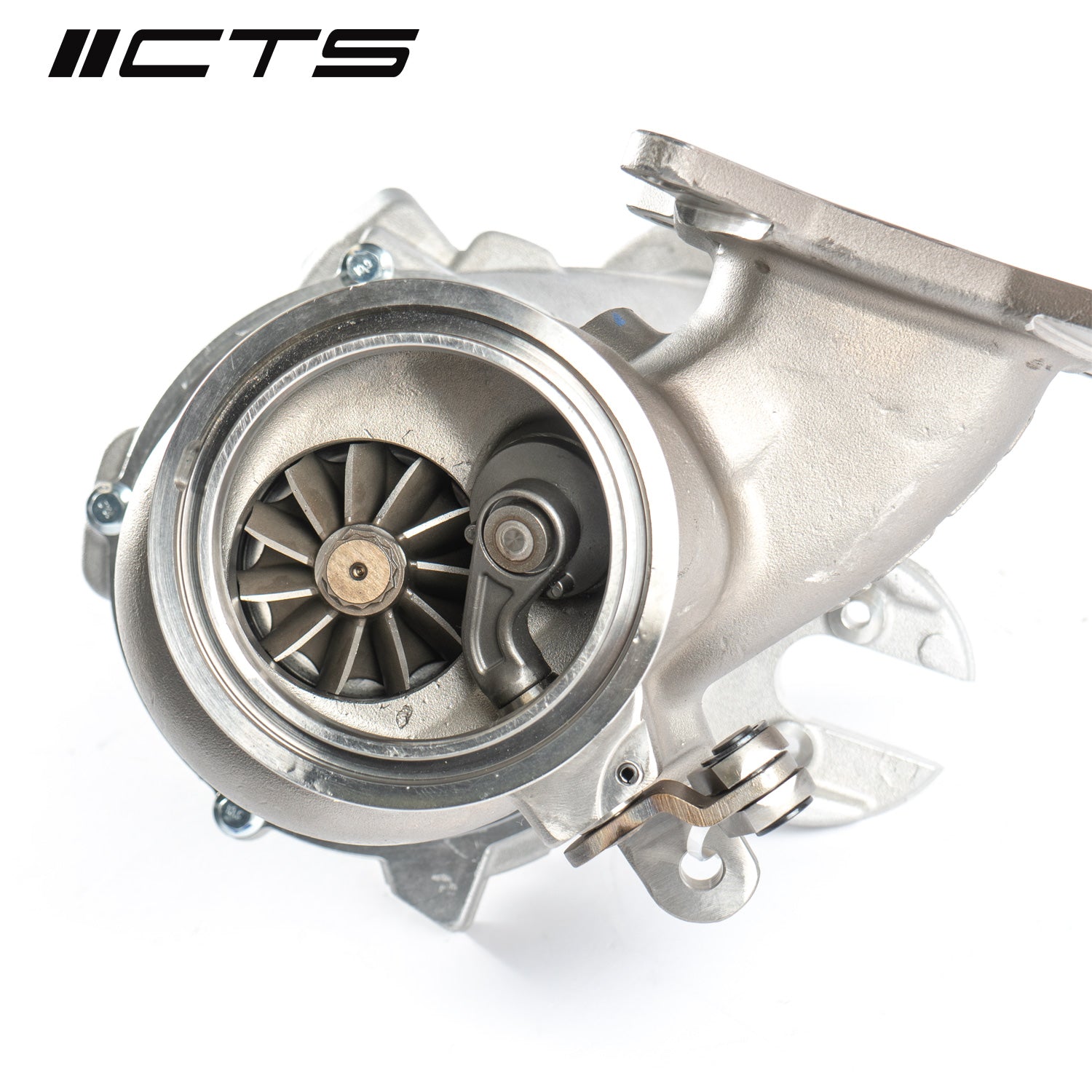

- Inconel TD06SL2 reverse rotation turbine wheel, 54mm exducer, 60mm inducer (11 blade configuration)
- Stainless Steel proprietary turbine housing, made precisely for factory fitment
- VSR Balanced to OE tolerances
- Compatible with most tuning solutions for popular hybrid turbos (United Motorsport, Eurodyne, COBB)
- Compatible with OE or replacement wastegate actuators
- Compatible with OE or aftermarket turbo inlets and turbo outlets, however we recommend our 2.5″ turbo outlet pipe, see below
Fitment is for all MQB-based EA888.3 vehicles:
- 2015-2019 VW Golf/Sportwagen/Alltrack
- 2015-2020 VW GTI
- 2015-2019 VW Golf R
- 2019-2023 VW Jetta GLI
- 2018-2021 VW Arteon
- 2015-2020 Audi A3
- 2015-2020 Audi S3
- 2015-2020 Audi TT
- 2015-2020 Audi TTS
- ROW models can vary
Required parts (not included):
- Performance downpipe
- Performance air intake
- Performance intercooler
- Factory or aftermarket wastegate actuator
- Software tuning for hybrid turbo
- Installation hardware for factory turbocharger, listed at the bottom of the page
Recommended parts (not included):
- 2.5″ turbo outlet pipe
- MPI kit and upgraded fuel pump, confirm with your tuner
- HPFP upgrade, confirm with your tuner
- High-flow exhaust
NOTE: Always follow the proper procedure for checking/adjusting the wastegate actuator when installing the turbo! Recommended wastegate actuator voltage: 3.4V-3.6V
Installation must be performed by a qualified technician. Always pre-fill the turbocharger, replace engine oil and filter, follow proper break-in procedures.
Installation hardware or gaskets (use same install kit as the factory turbo), wastegate actuator, turbo outlet fitting not included.
**result may vary, depending on your location, fueling, dyno, etc
Hardware and gaskets required for installation:
- 06L253039A – Turbo Inlet Gasket
- 5Q0253115B – Turbo Outlet Seal
- WHT007210 – Turbo Mount Nuts (x4)
- N90067202 – Turbo Oil Line O-ring (x2)
- WHT006112 – Turbo Oil Line Gasket
- WHT006113 – Turbo Oil Line Gasket
- WHT006114 – Coolant Hose O-Ring
- WHT006124 – Coolant Hose O-Ring
- WHT005558 – Coolant Hose O-Ring
