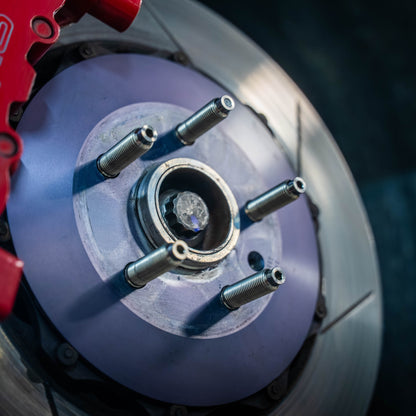

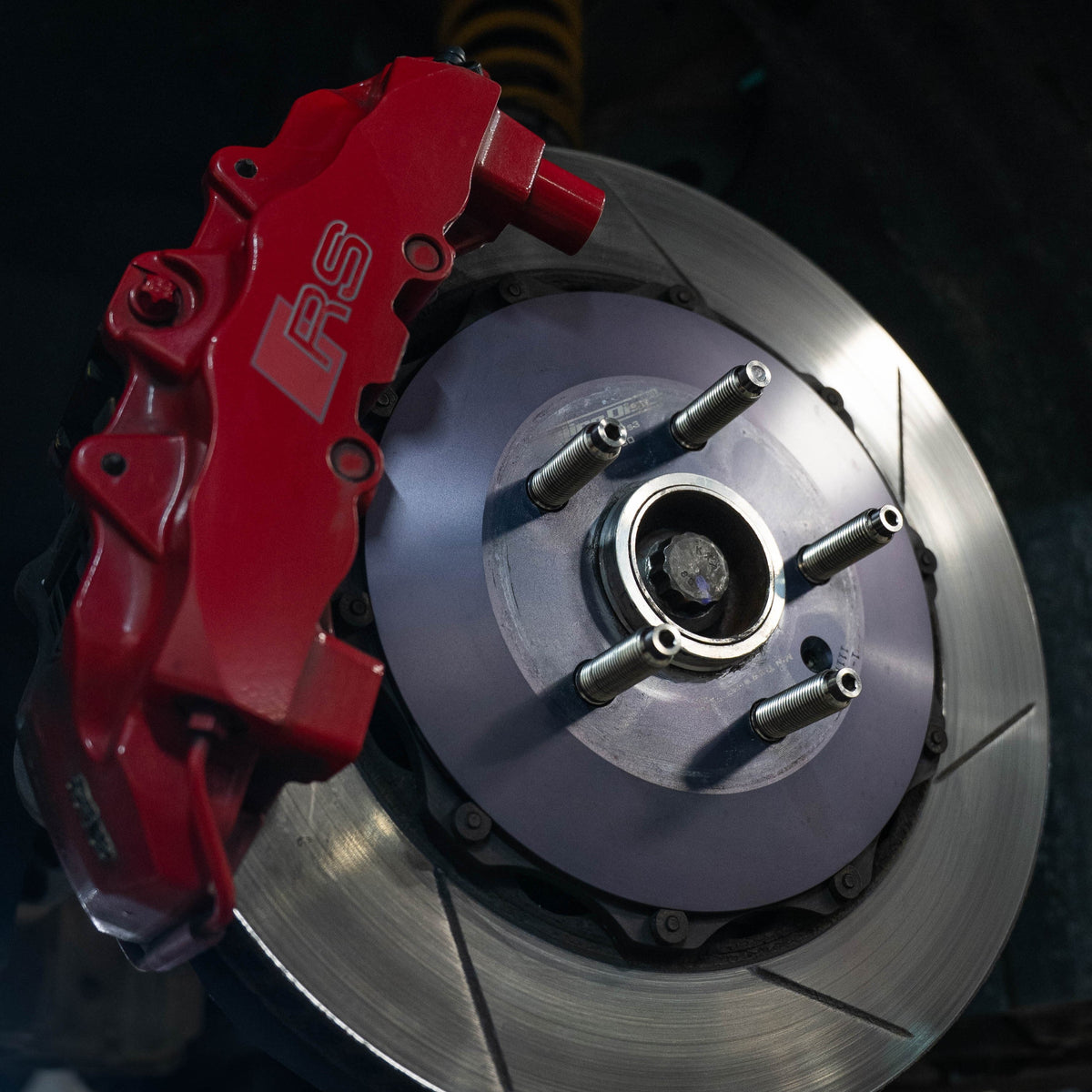

Titanium Wheel Stud Conversion Kit, Audi/VW

Overview

Ditch your heavy, ugly stock wheel bolts or rusty steel stud conversion and do your build some justice! We've been running these titanium alloy studs on both street and track cars (including dedicated time attack and drag cars) for years with zero issues. Unlike 100% titanium bolts/studs, our Ti-6Al-4V alloy is much stronger than comparable steel counterparts.

New: Select the extra nuts option if you want a second set of nuts for stock or aftermarket wheels. Handy if you're running two sets of wheels with different seats!

Details

Lightweight:

Stock wheel bolt: 0.1kg (100g) / 0.2lb (4oz)

Titanium stud/nut combo: 0.045kg (45g) / 0.1lb (2oz)

Total rotational/unsprung weight savings: 1.1kg (1100g) / 2.4lb (39oz)

High Strength:

GAS Titanium wheel studs: 950 mPa (138,000 psi)

Stock wheel bolts: 540 mPa (78,300 psi)

Features:

• 70mm overall length
• ~40mm of available thread, measured from the brake disc face
• Less than half the weight of OEM bolts
• Machined from Ti-6Al-4V aerospace grade titanium alloy
• Rolled threads for high strength & reliability
• Faster & easier wheel changes, no more balancing your wheel while lining up the bolts
• Titanium-vanadium composition is nearly twice as strong as OEM steel bolts
• Extremely high resistance to corrosion, perfect for areas with salt on the roads
• Threads rolled to a strict 6g/6H tolerance
• Allows the use of up to 15mm wheel spacers (wheel-dependent)
• Offered for both stock and aftermarket wheel fitment
• Head: 17mm (12 point)


Installation:

• Remove wheels
• If your hubs are rusty, cleaning the threads with an M14x1.5 tap before installation is highly recommended
• Install GAS wheel studs with supplied loctite on short threads
• Torque studs into hubs to 15nm using a 4mm hex socket
• Install spacers (if applicable) and wheels onto the new studs
• Torque wheel nuts to factory specifications

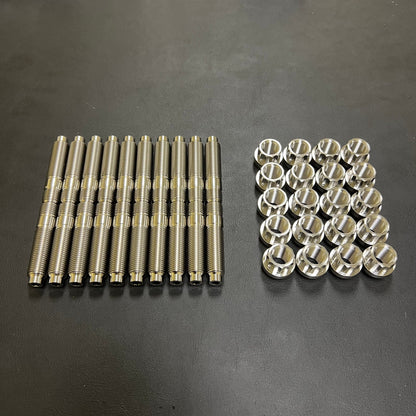

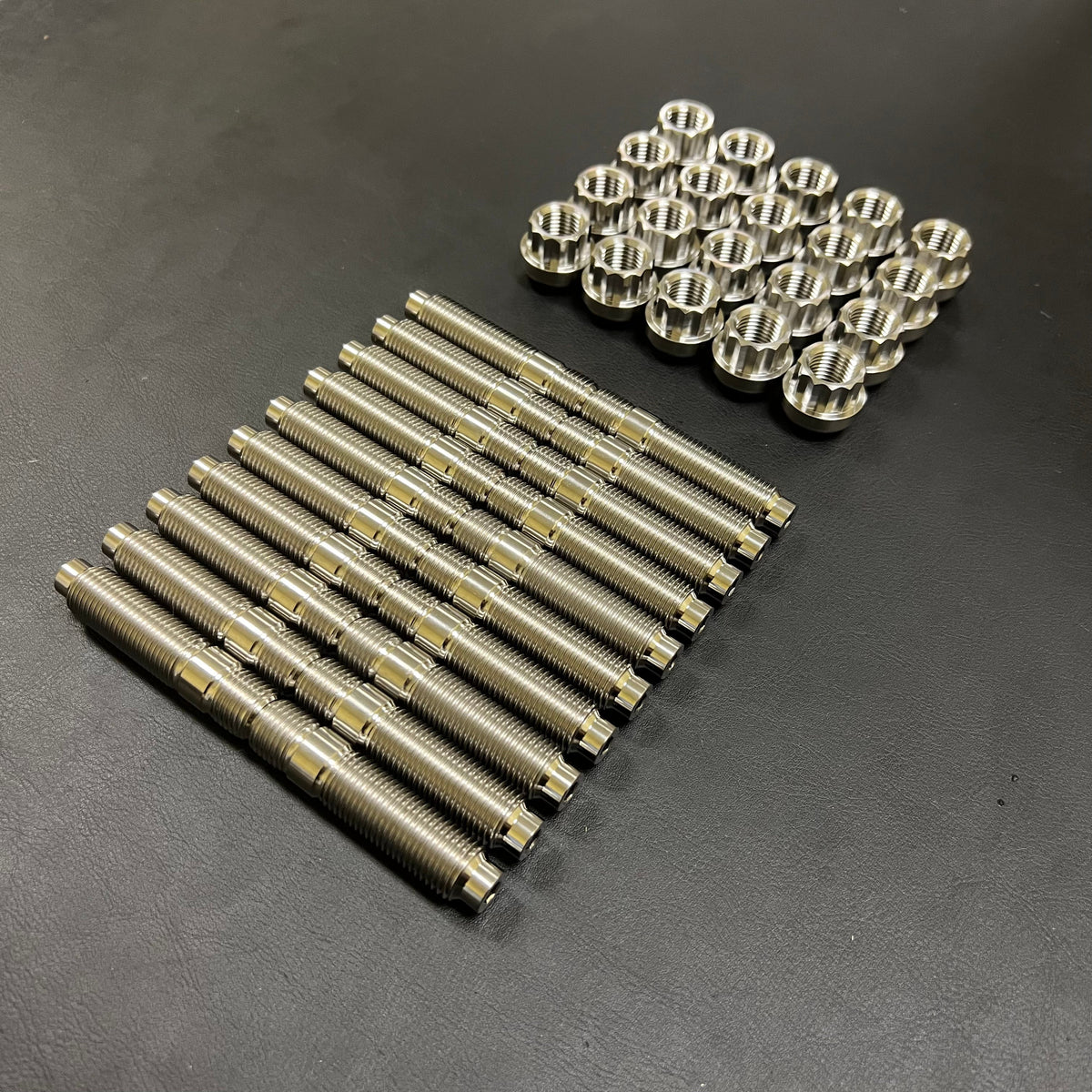

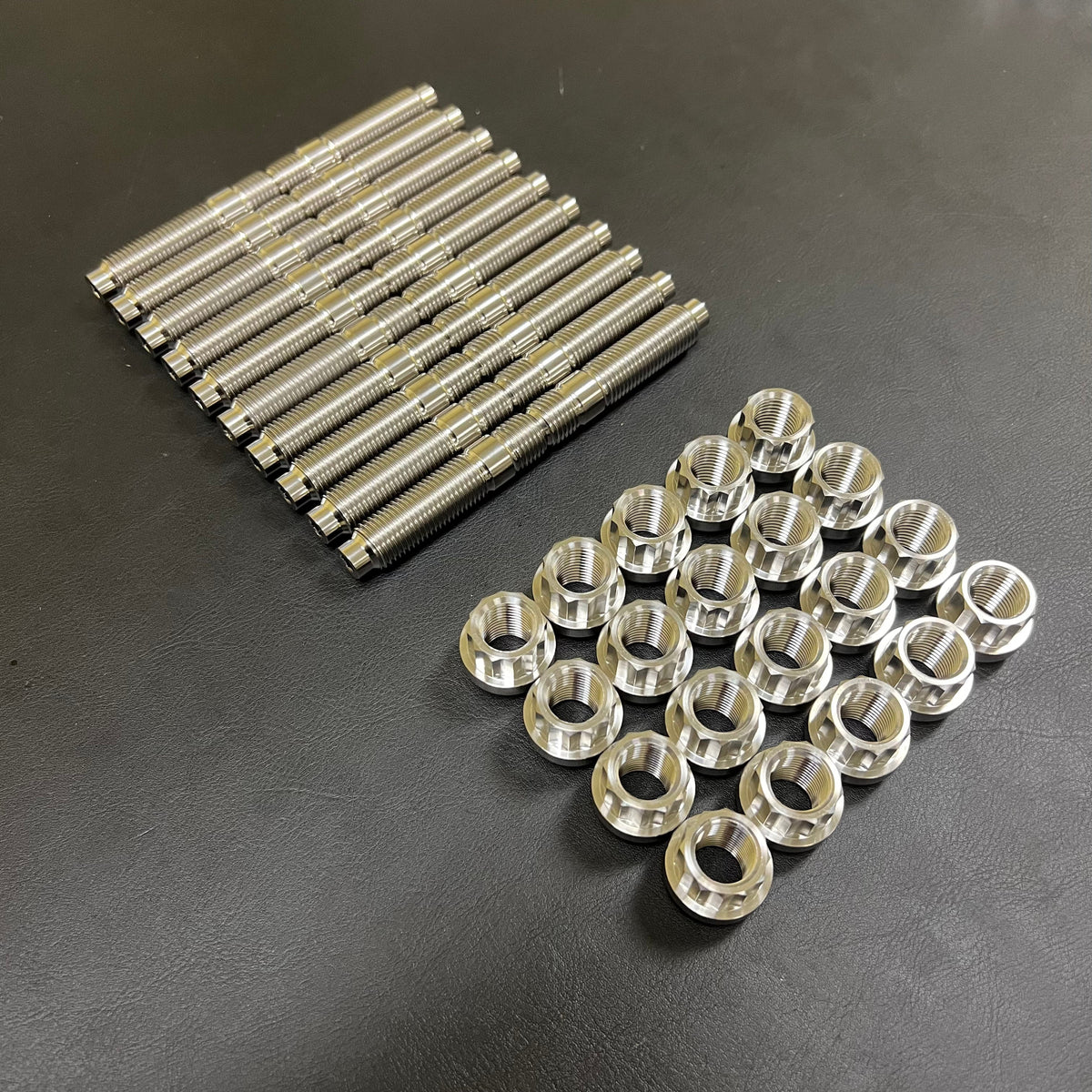

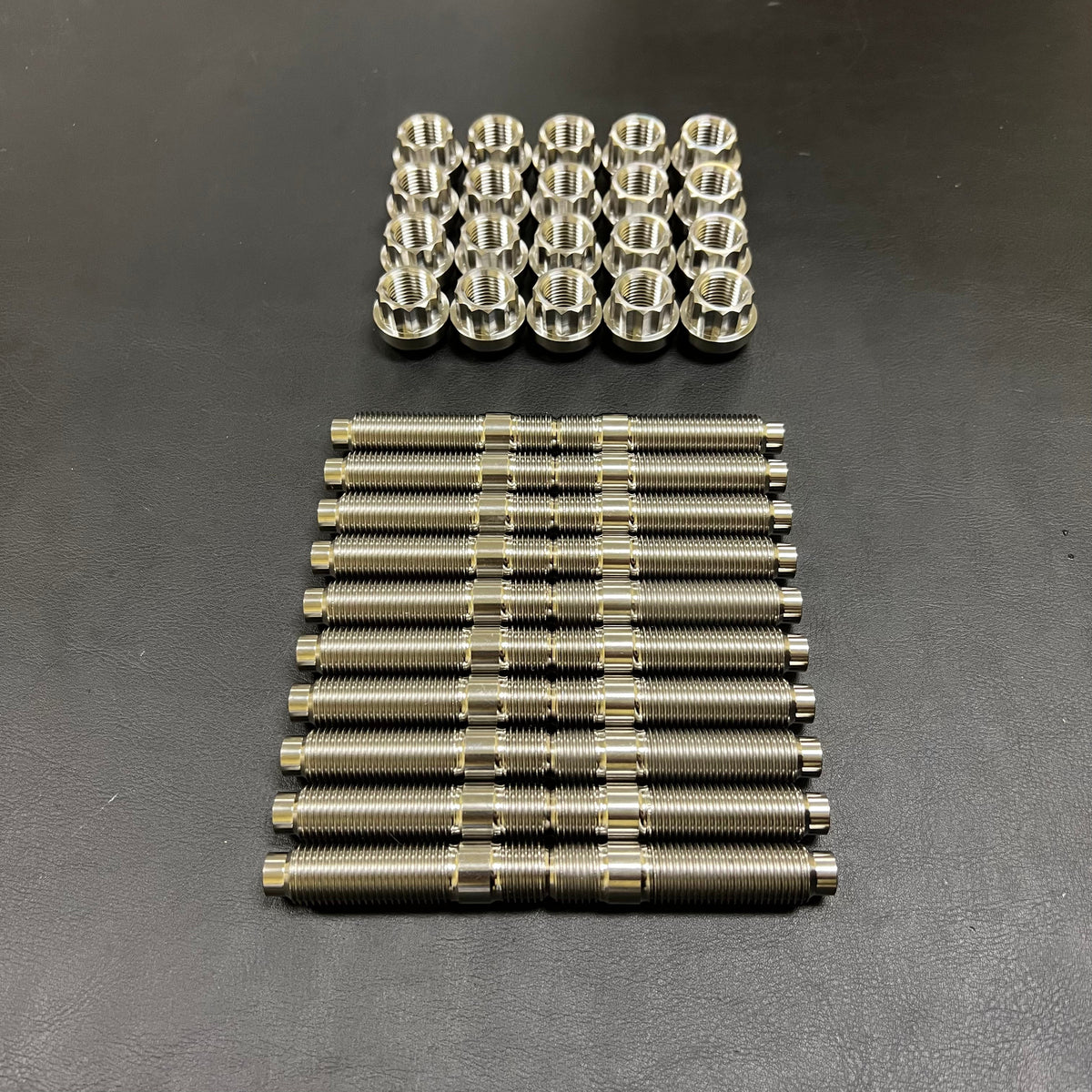

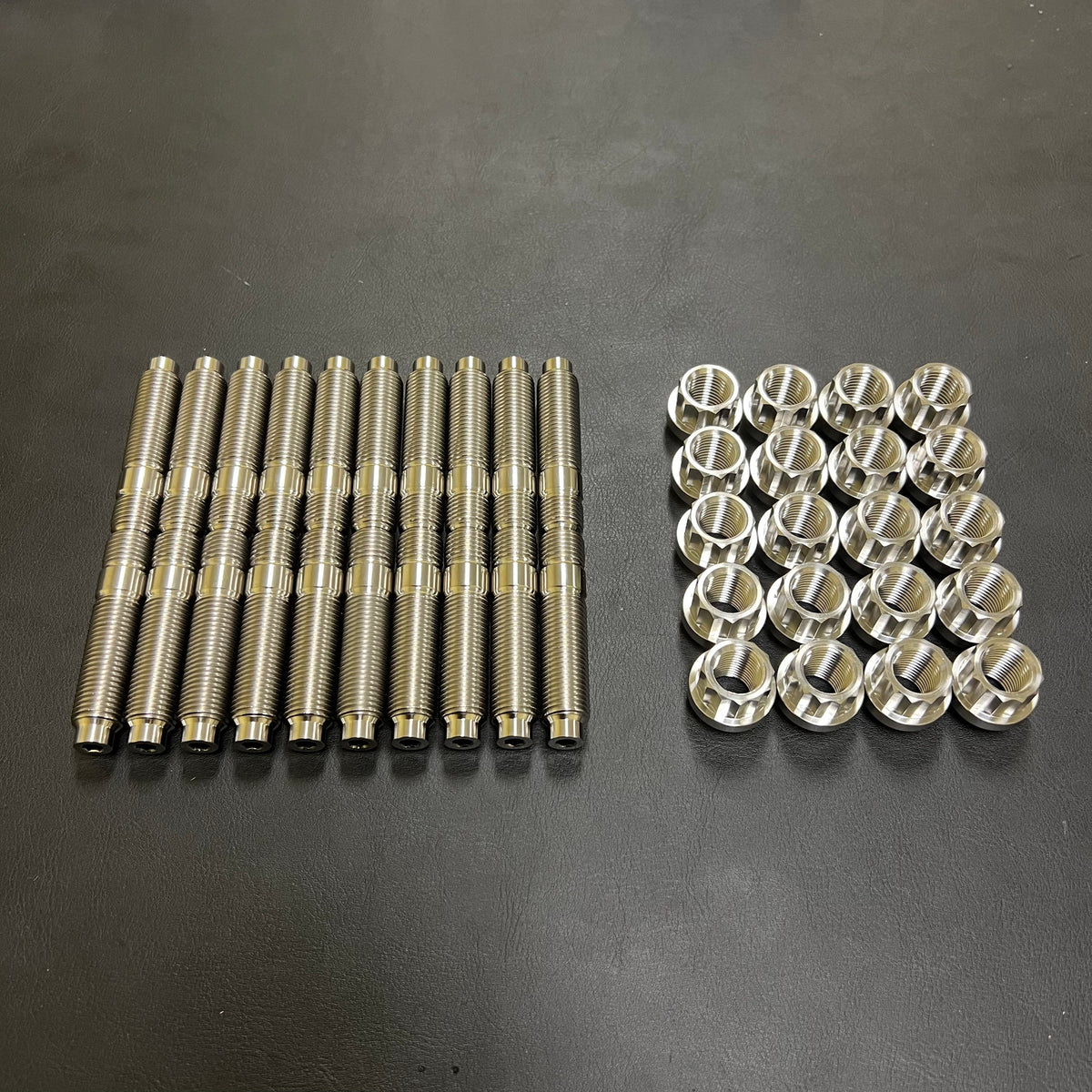

Includes:

• 20x M14x1.5 Titanium wheel studs
• 20x M14x1.5 Titanium wheel nuts

• Wheel nut socket

Fitment:

• Audi A3/S3/RS3 8L/8P/8V/8Y
• Audi TT/TTS/TTRS 8N/8J/8S
• Audi A4/S4/RS4 C4/B5/B6/B7/B8/B9
• Audi A5/S5/RS5 B8/B9
• Audi A6/S6/RS6 C4/C5/C6/C7/C8
• Audi A7/S7/RS7 C7/C8
• Audi A8/S8 D2/D3/D4/D5
• Audi Q5/SQ5 8R/FY
• Audi Q7/SQ7/Q8/SQ8/RSQ8
• Audi R8 MK1/MK2 (42/4S)
• Lamborghini Huracan (all models excl. center-lock)
• Lamborghini Gallardo (all models)
• Lamborghini Urus
• VW Golf/GTI/R MK4/MK5/MK6/MK7/MK8
• VW Jetta/GLI MK4/MK5/MK6/MK7/MK8
• VW Passat B5/B6/B7/B8/B9
• VW Tiguan 5N/AD/BW
• Porsche (cone seat wheels only, will not fit R14 ball seat)
• Mercedes (cone seat wheels only, will not fit R12 ball seat)
• Other makes/models using M14x1.5 wheel bolts
• More fitments added every day. Send us a message if you don’t see your vehicle listed

Note: If running aftermarket wheels, please verify your bolt/nut seat before ordering!
