Overview

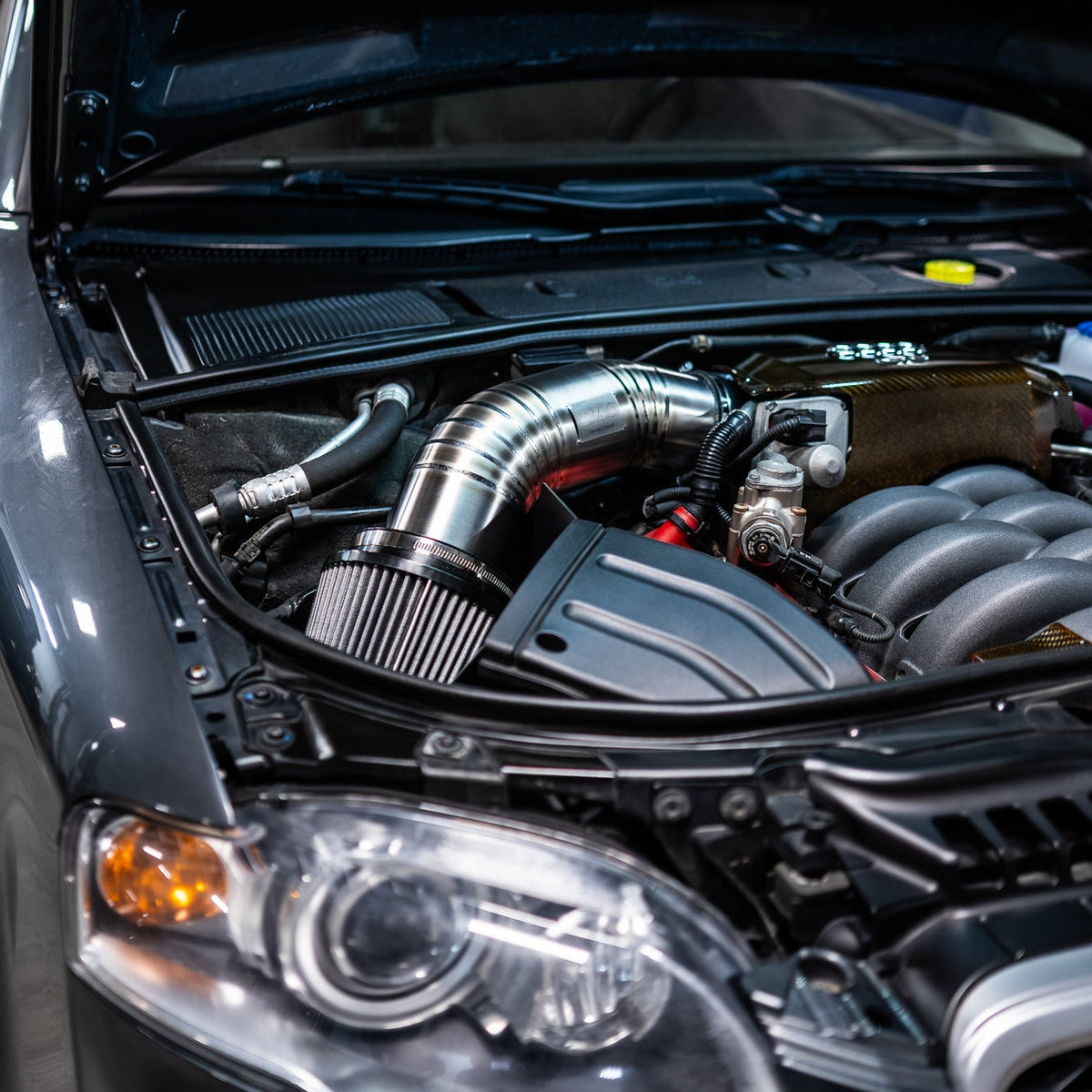

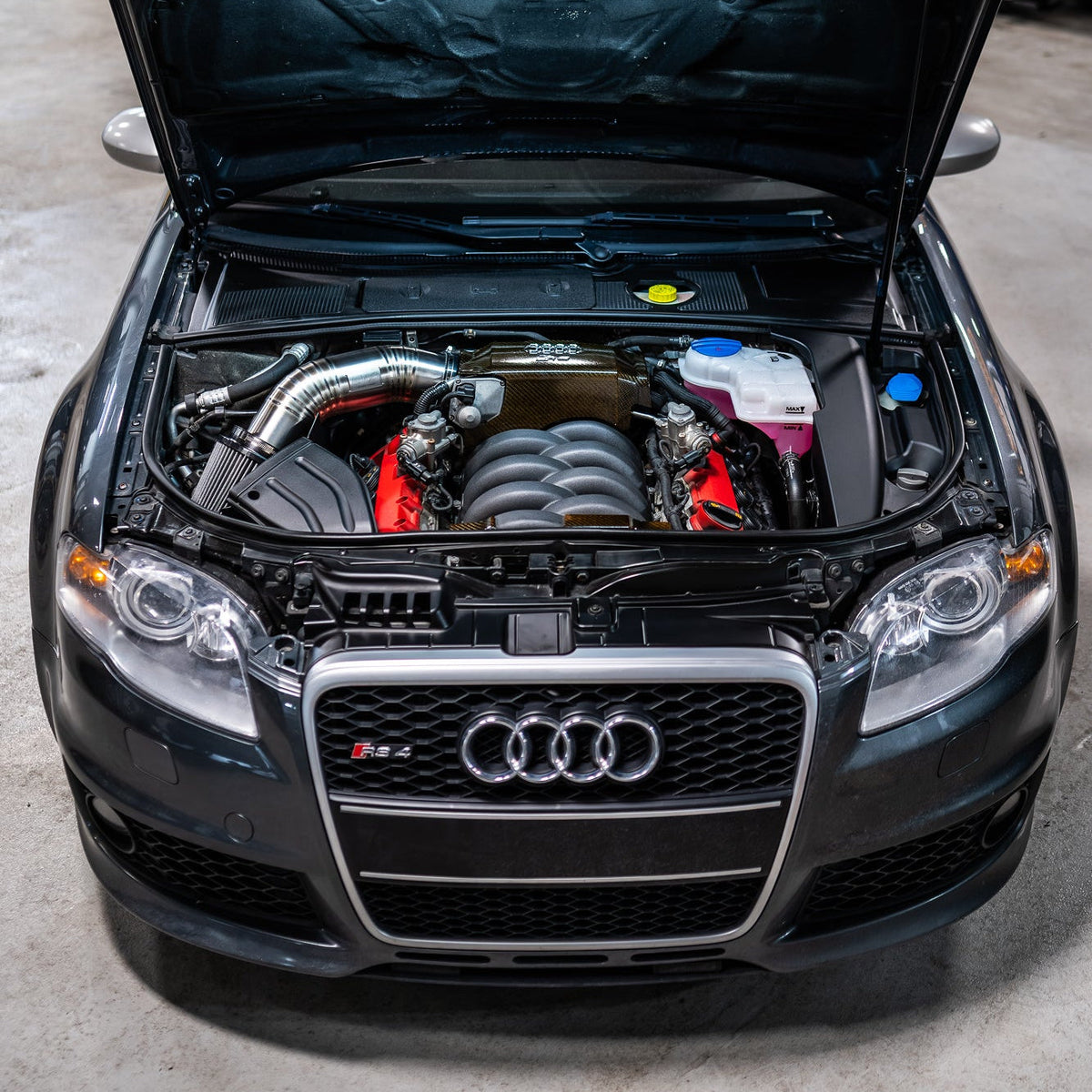

We are proud to announce the first and only full 102mm (4 inch) titanium intake for the B7 RS4! No reusing stock intake hoses or multicoloured intake setups.
Details
The Omega V2 is here.
After years of setting the bar for what a no-nonsense intake should be, we asked ourselves: how could we make the most influential intake on the market even better? After a few months of testing, we are proud to introduce the Omega V2. With a new integrated titanium velocity stack built into the intake tube, we eliminated multiple connections and the issues that went along with a composite velocity stack, including the frustrating loose-filter issue. By building the stack into the tube itself we've shed extra weight and added more titanium to the intake, further highlighting it's beauty without hiding it underneath silicone couplers.

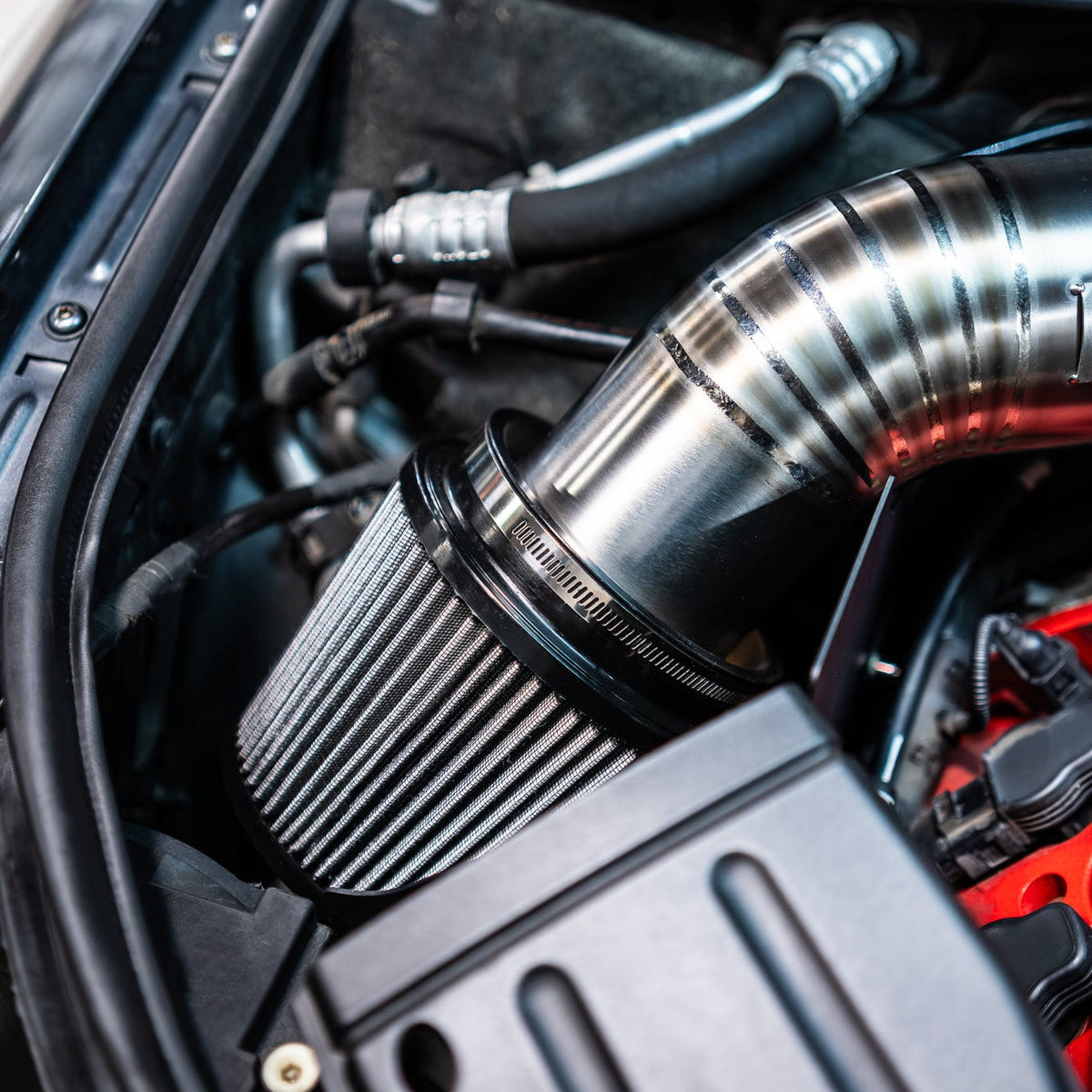

When examining the filter itself, we listened to the community's feedback and spent months testing and tweaking our new dry filter. With 4 layers of synthetic dry media, we were able to keep filtration high without sacrificing flow. We've also added a secondary filter to the end cap, replacing the closed design of the K&N we've been using for years. This allowed us to move to a slightly more compact filter design while adding even more filtration area than the previous filter, prioritizing proven airflow over physical size. Back-to-back dyno testing and logging shows zero flow difference between our air filter and no filter at all!
Thoughtful Design
During the design of this intake system, we knew we had to put out more than a piece of pipe and an open filter. We sat down and answered a few questions:
- Can we replicate the factory MAF configuration to avoid running issues?
- Can we provide a one-piece design that replaces the entire intake tract from the filter to the throttle body?
- Can we develop a box that will provide near-factory IATs with the little space available in the B7 engine bay?

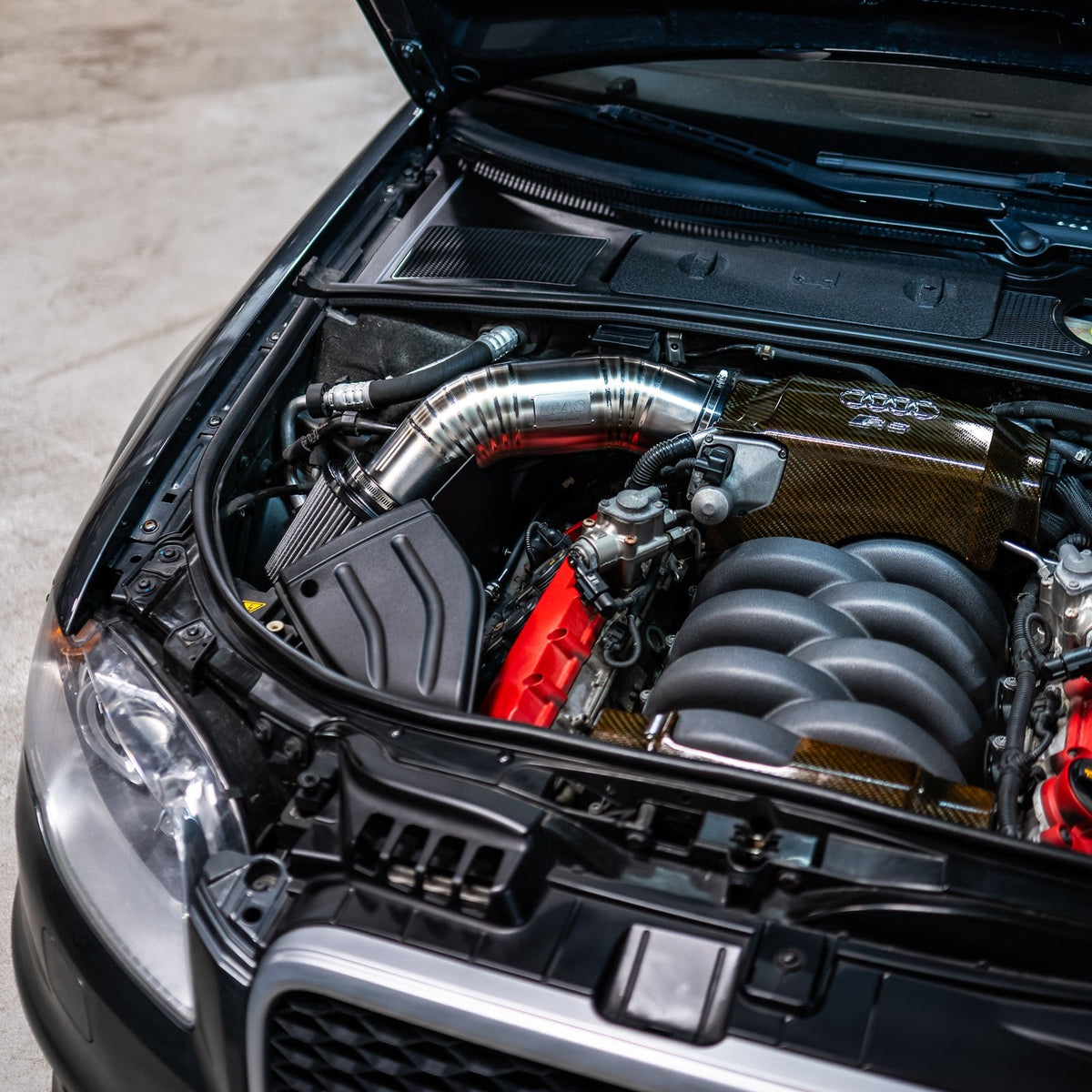

After a little CAD work and some 3D printing, we produced a model that we were happy with and got to work building it. What we were left with is a one-piece titanium intake system that resists heat soak, eliminates inconsistent or turbulent MAF readings, and keeps high IATs at bay.
Not A Hot Air Intake
During our R&D process, we found other intakes on the market featured a semi-open box, drawing a large portion of their air from directly above the right side exhaust manifold. During logging, we found that this caused elevated intake air temperatures significantly higher than ambient during low-mid speed driving.
By utilizing all 3 intake air sources that the engineers at Quattro provided as well as a thoughtful airbox design, we were able to keep fresh air coming into our airbox rather than forcing the system to draw from the hot engine bay. Use of the factory frontal air duct ensures a constant feed of cool air from the front grille area. We also took advantage of the WOT flap feed area under the headlight by allowing unobstructed flow from down low.
Integrated MAF Design

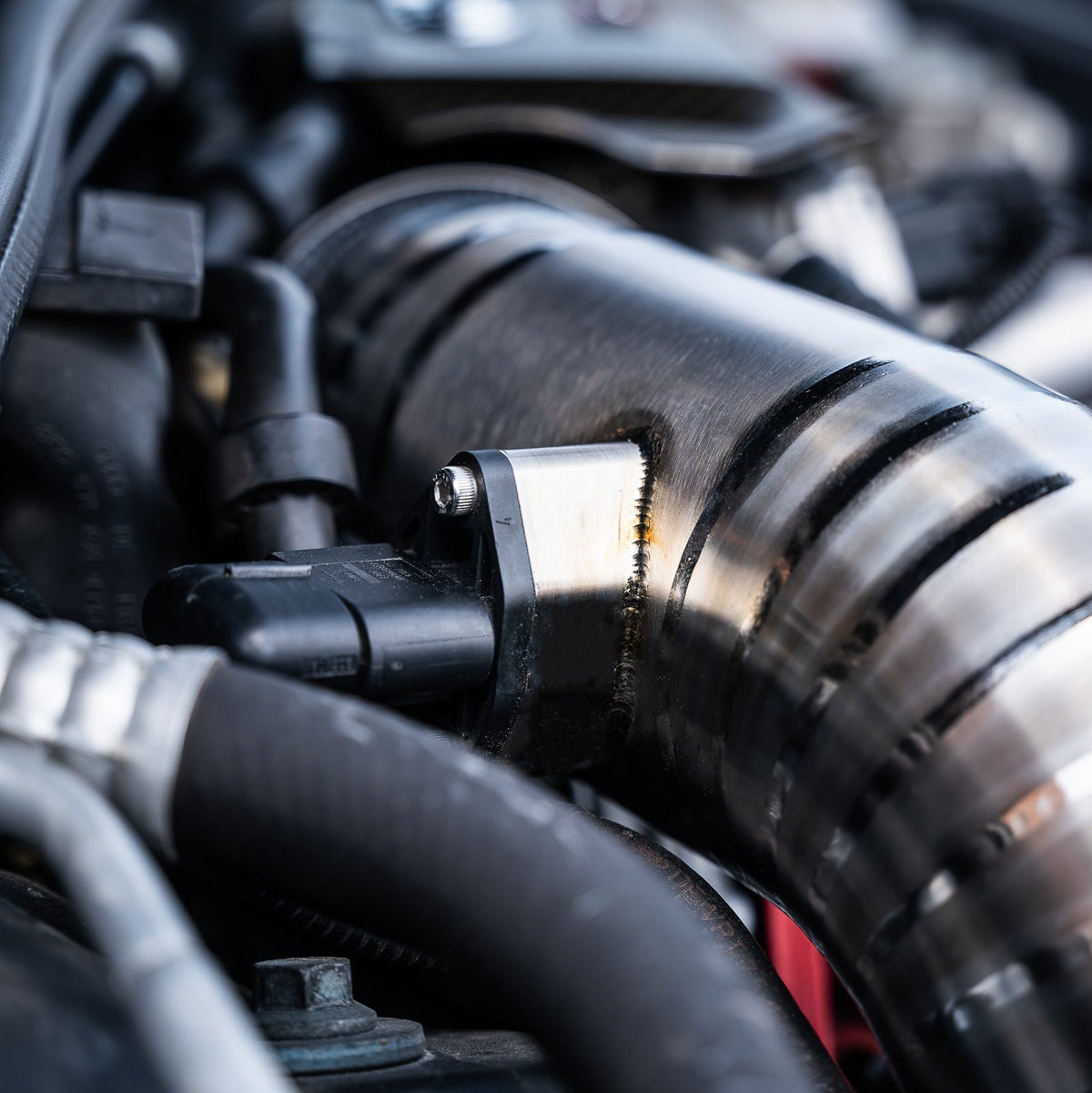

Our integrated MAF design repositions the sensor behind the tube while keeping it above a 90-degree angle, preventing oil or moisture fouling while cleaning up the engine bay a bit. We also took special care when designing the flange to position the sensor element to match the OEM offset into the tube, ensuring smooth readings and consistent AFRs. Our choice to build the MAF into the intake tube also means less connections and less clamps.
When it comes to the B7 RS4, the choices for upgraded intake systems are slim, to say the least. Other systems on the market are a mix of the stock intake hose, coloured silicone couplers, and a "big" MAF housing. By integrating our titanium MAF flange into the intake tube, we were able to focus on optimizing the entire intake design rather than being confined to building half of an intake (even if it's an attractive one).

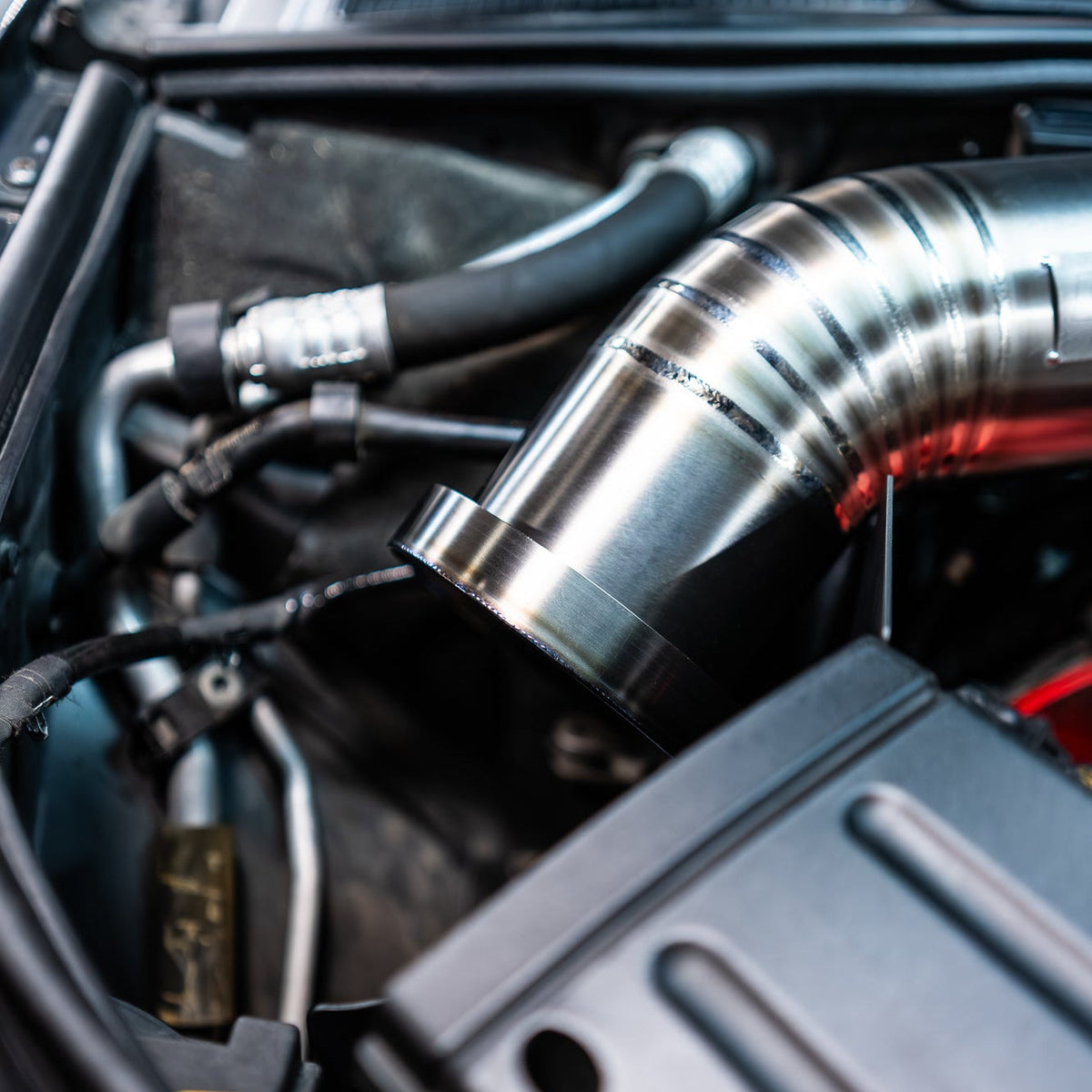

Velocity Stack
Years of back to back testing on naturally aspirated and turbocharged engines has shown consistent gains from smoothing and accelerating the transition of air from the filter through the intake. By reducing turbulence in the intake, your engine doesn't have to work as hard to process the incoming air. This further reduces pressure drop at the inlet and frees up some extra air density. Denser air = more boost!
Titanium... why?

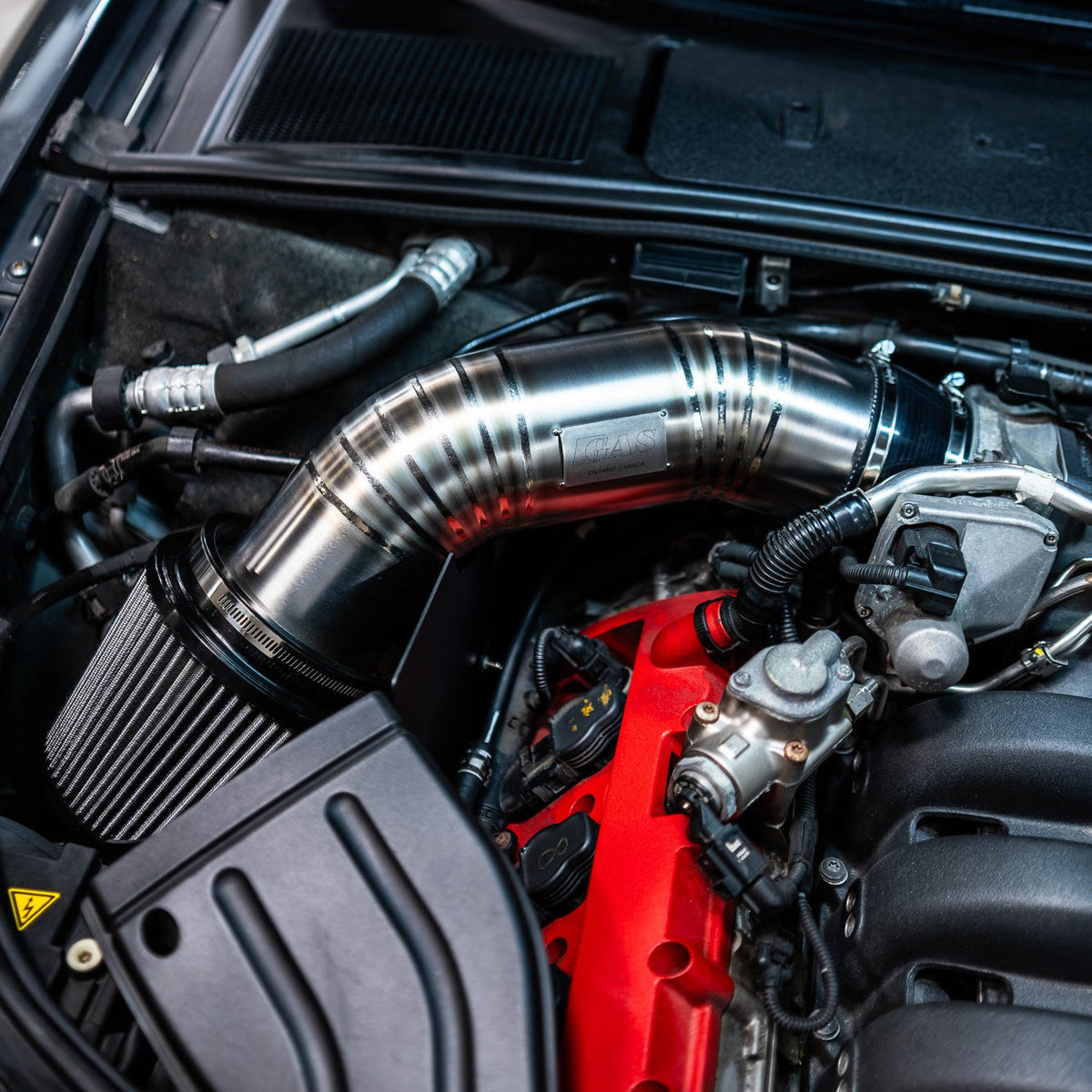

The decision to go with CP1 titanium was not one we took lightly. Titanium is not a cheap material to work with, but ignoring the benefits of this aerospace material was not something we could overlook. Piggybacking on our years of success with the 3.0T platform, we couldn't go with anything else.
Titanium is what we like to call "functionally beautiful". Aside from being one of the most lightweight metals available, titanium has a very low heat transfer rate (16 W/m-K) compared to aluminum (152 W/m K), which means it is highly resistant to heat transfer from the engine bay. Intake temperatures play a key role in power production. While other manufacturers sidestep this issue by powder coating or heat shielding their intake tubes, we opted to go straight to the source by choosing a material that will naturally keep intake temps down.
In addition to its excellent thermal properties, titanium has a much higher strength-to-weight ratio than aluminum, meaning that much thinner tubing can be used in our intakes. This means larger internal diameters when compared to aluminum with the same outer diameter. Our 4" titanium intake, as a result, boasts a 5% increase in intake area when compared to a 4" aluminum intake. A higher strength-to-weight ratio also means lighter parts.
Titanium Grade 4, also known as titanium CP1, is the strongest of all commercially pure titanium grades. It combines excellent corrosion resistance with good strength and toughness. This means that your intake will continue to look beautiful well past your engine's expiration date. The lack of paint or powder coating also ensures that the finish will hold up for the long run! Occasional cleaning is all that's required.
Benefits:
- Extremely lightweight
- TRUE 4.0" diameter from start to finish
- Available in multiple finishes (Raw finish shown)
- Pie cut from 100% CP1 grade titanium, hand TIG welded, and back-purged for longevity
- Tested on our Mustang AWD dyno and on the street for proven performance and verified low IATs
- Average +15HP increase over other systems
- Compatible with the factory intake air duct
- Proudly Made in Canada
Includes:
- 4.0" Titanium Inlet Pipe
- 6.0" high-flow filter with velocity stack
- Heat shield
- All required hardware & couplers
- Our kits no longer include an SAI filter. Removal of SAI is generally recommended due to frequent system-related issues, even with the stock intake.
