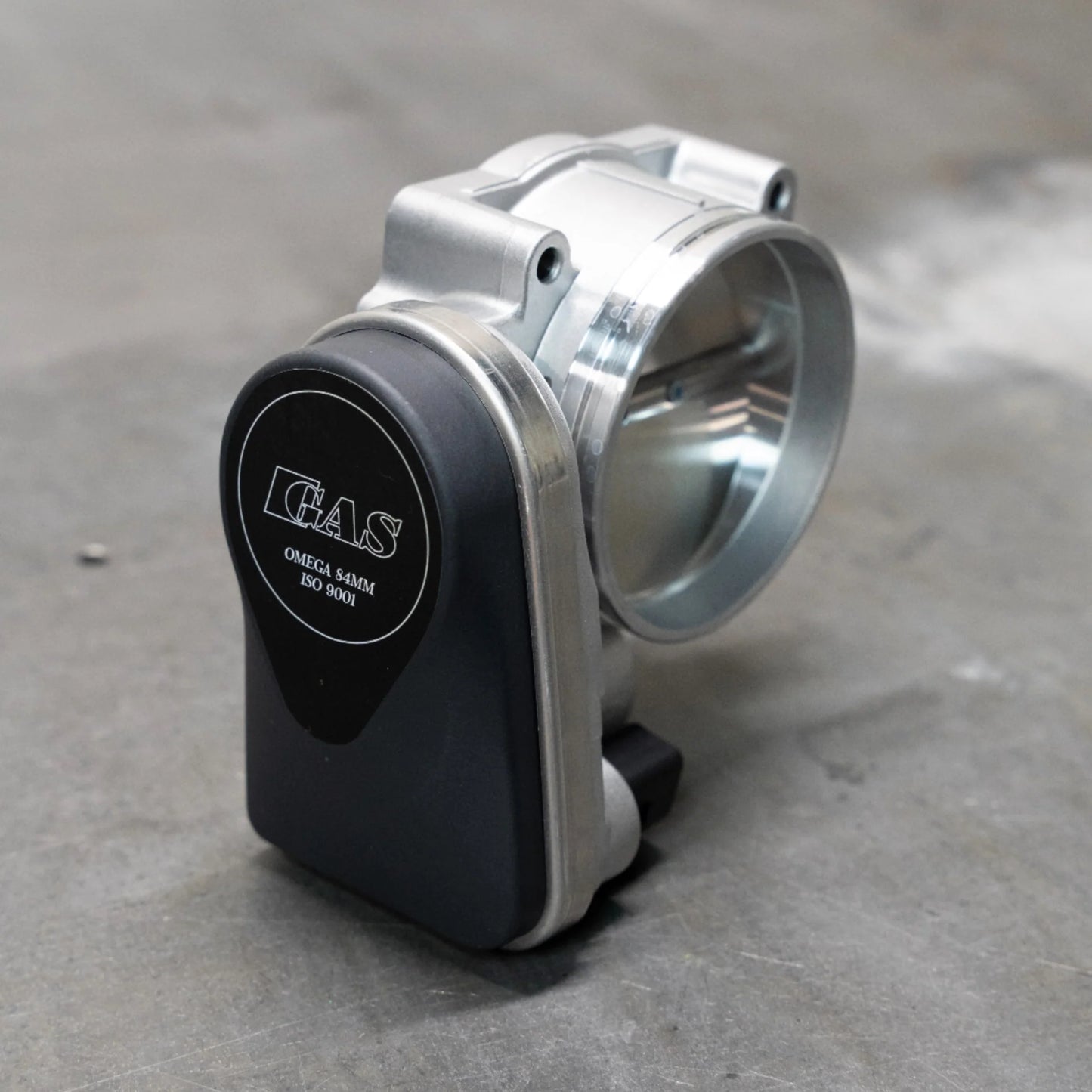

GAS 84mm Throttle Body Upgrade for Audi 3.0T EA837

Upgraded 84mm stock location throttle body for your supercharged EA837 3.0T

PRE-PORTED 84MM-80MM ADAPTER PLATES ARE NOW AVAILABLE!

IMPORTANT: PLEASE READ BEFORE INSTALLATION

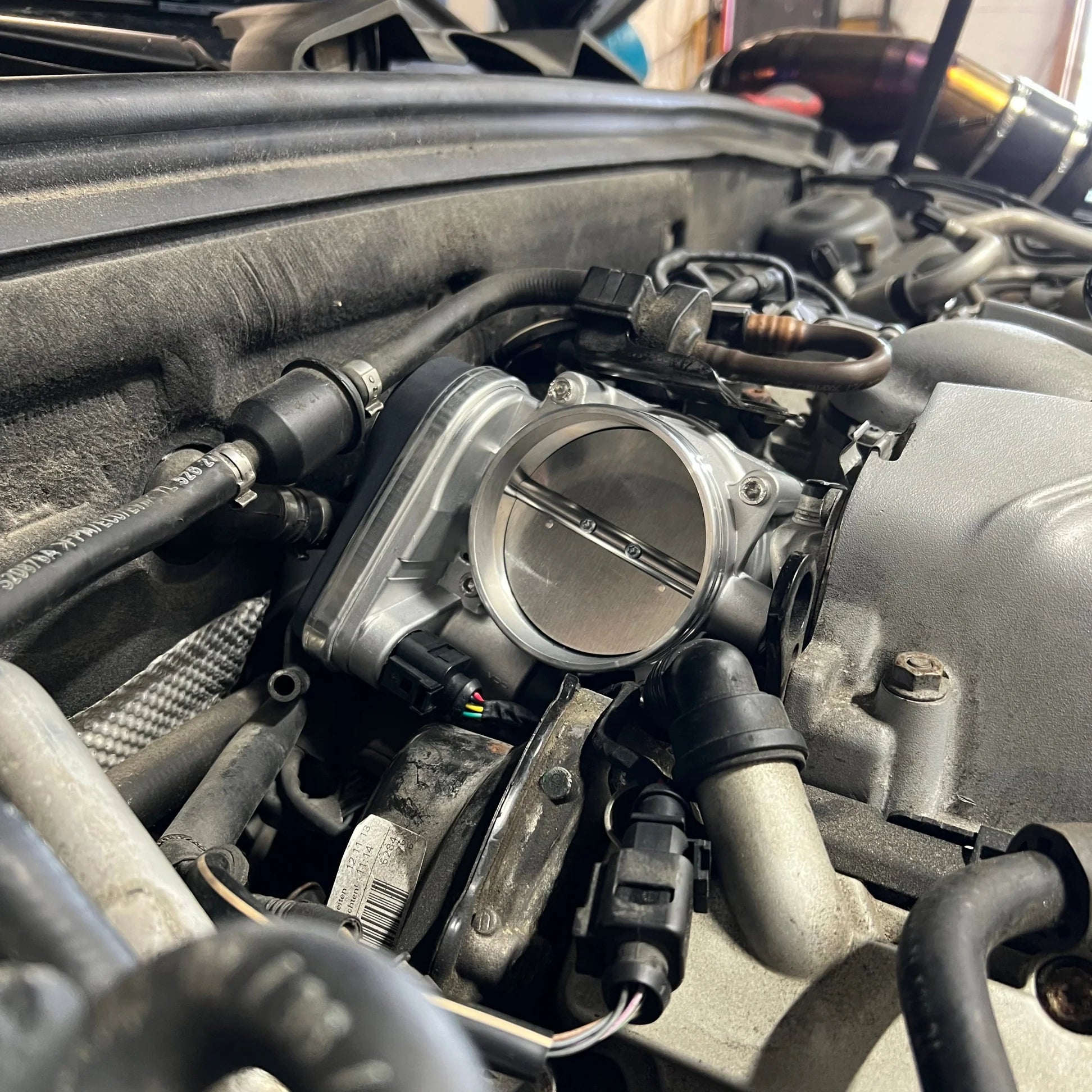

The GAS throttle body upgrade mounts in the factory location, removing any need to purchase a proprietary intake. Any 3.5" intake you already have on your car will be a direct fit for this throttle body upgrade (with the exception of certain intakes such as IE, 034, and others that are made of silicone or use proprietary silicone boots), or you can choose to upgrade to the GAS Omega 4" intake kit for maximum flow! This kit replaces the previous 80mm offering and gets away from the failure-prone 80mm Hemi throttle bodies.

A Perfect Fit, Ported or Stock!

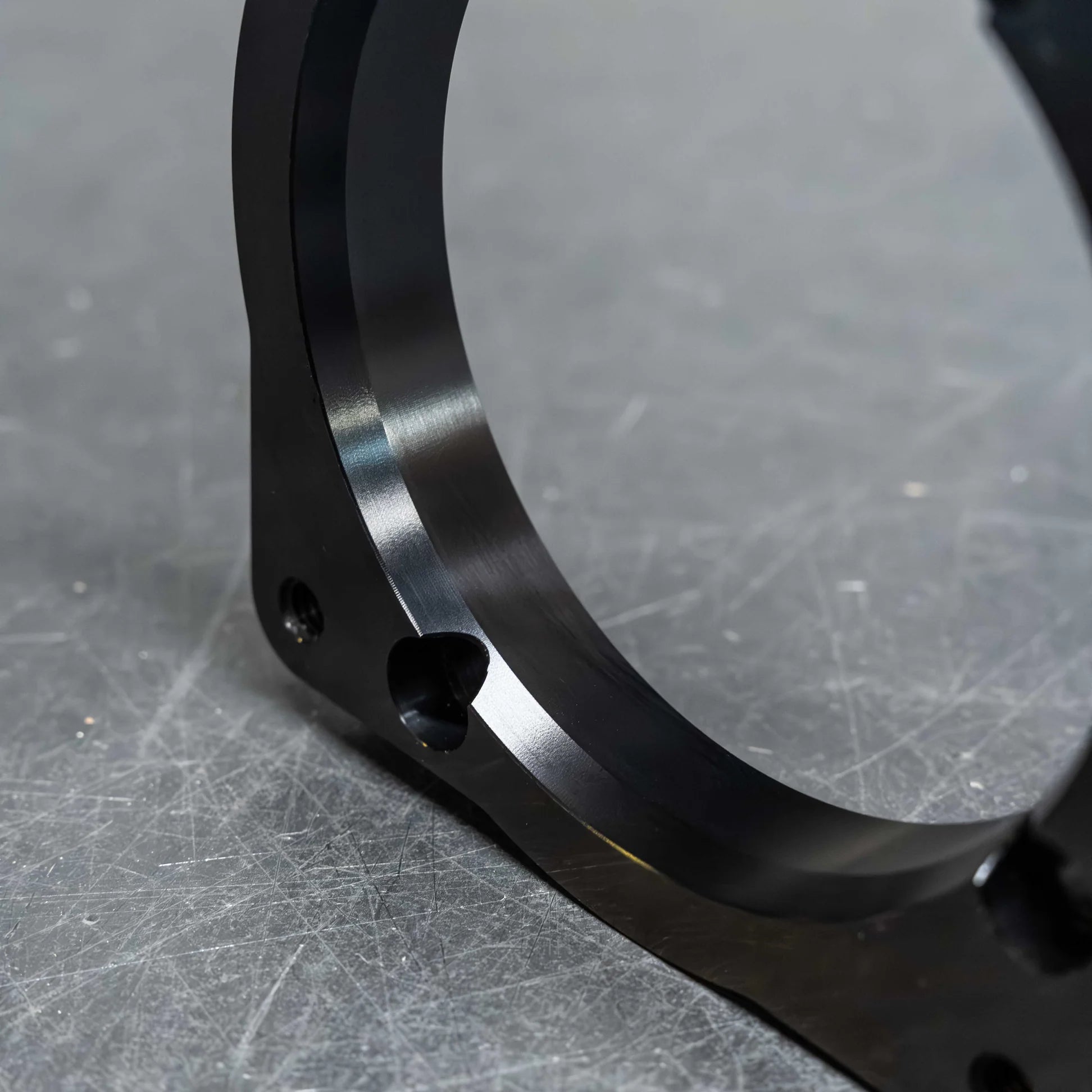

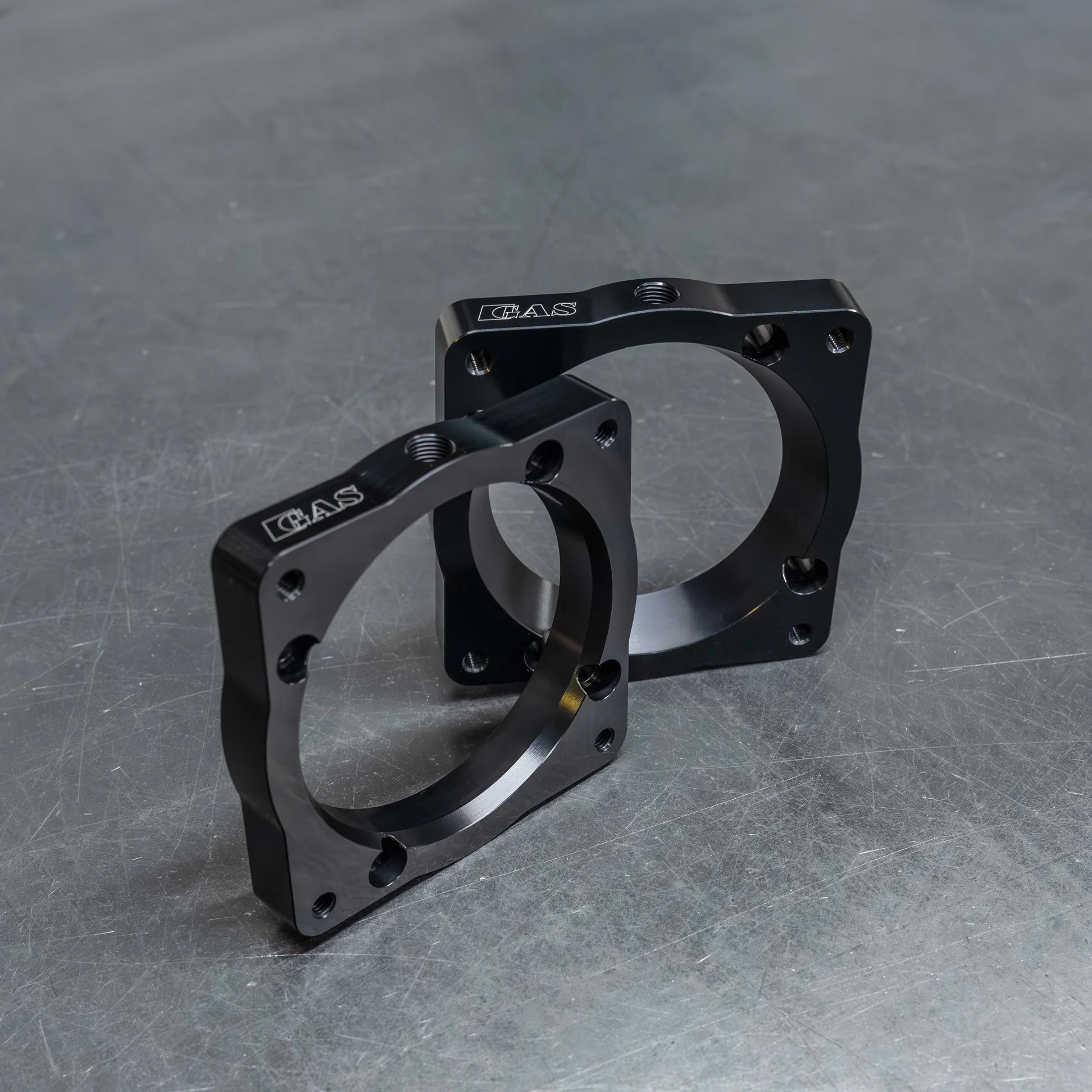

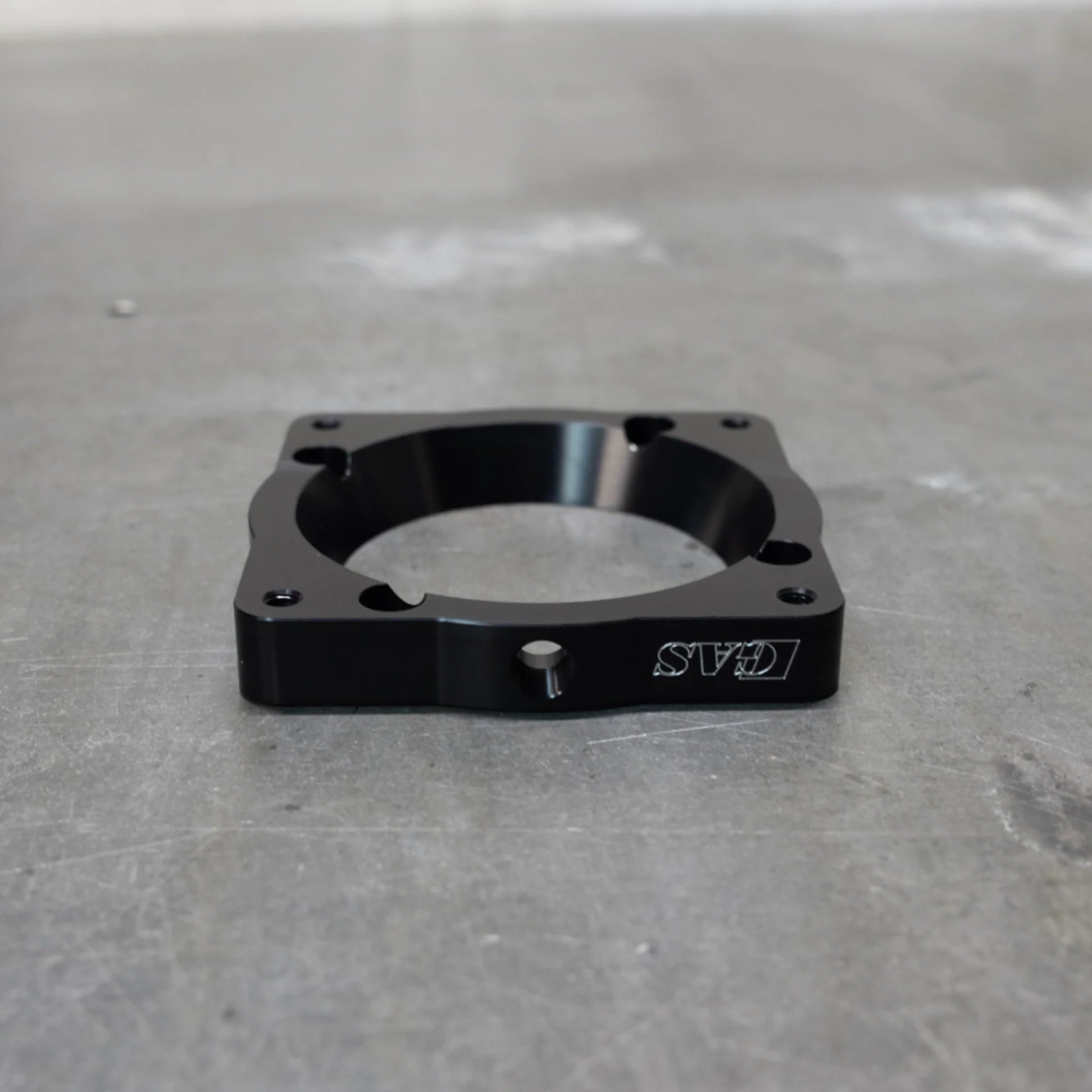

Our billet throttle body adapters feature a smooth taper and are milled to perfectly match the OEM 70mm supercharger inlet. We have engineered these plates to be able to be easily ported up to 80mm to match even the most aggressively ported superchargers, something you simply can't do with other upgraded TB kits due to their snout-style design. The lack of a snout on a ported charger also means much less restriction at high RPMs.

WMI Ready

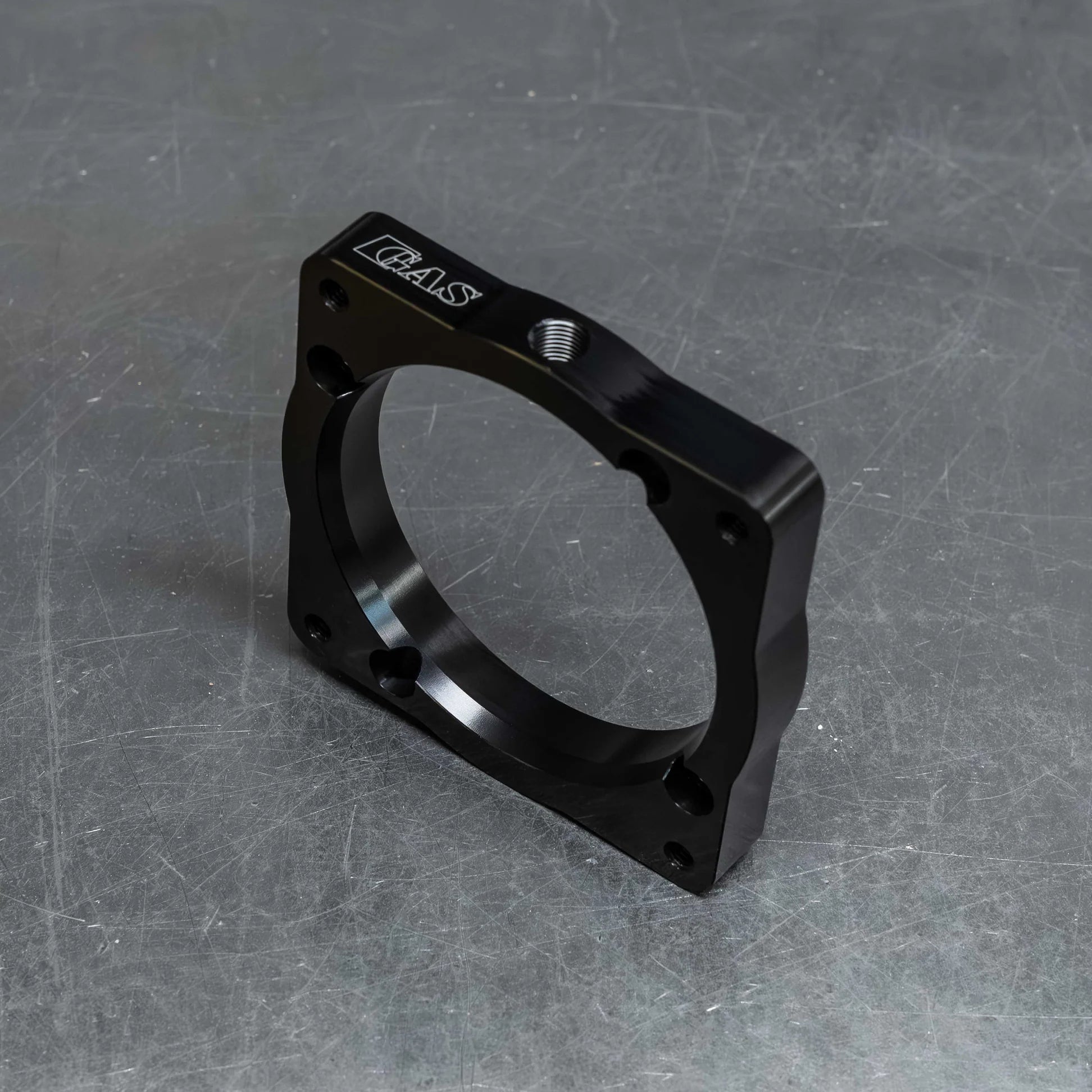

Our adapter plates have a meth bung machined into the top face for easy WMI installation just after the throttle body, eliminating the need to drill your intake or supercharger inlet. WMI bungs will come pre-plugged with a stainless 1/8" NPT plug.

Every kit will include a harness for plug-and-play operation, but a wiring diagram can be found here in case you don't have a wiring harness.

ISO9001 Certification

With more than one million certificates issued to organizations in 189 countries, ISO 9001 is the most widely used quality management standard in the world. Within the ISO 9000 family, which defines seven quality management principles including a strong customer focus and continual improvement, ISO 9001 is the only standard that can be certified to (though certification is not mandatory). This means that our kits deliver consistent quality, time after time.

Upgraded throttle body software is required! Our kit is compatible with all major tuning companies' software.

Features:

• 84mm throttle body provides huge flow, especially when matched to a ported supercharger
• 44% larger opening than the stock throttle body for maximum performance
• Pre-tapped for WMI, just connect your kit and go!
• Billet reducer is easily port-matched to any supercharger inlet size
• Compatible with any upgraded TB ECU software you may have such as Jackal, APR, 034 or IE (re-pinning is required for 034 software)
• Stock-location mounting means compatibility with your existing intake. No intake purchase is necessary to run our TB kit (silicone intakes are not compatible)
• 100% compatible with the MercRacing MRA1900 supercharger upgrade!

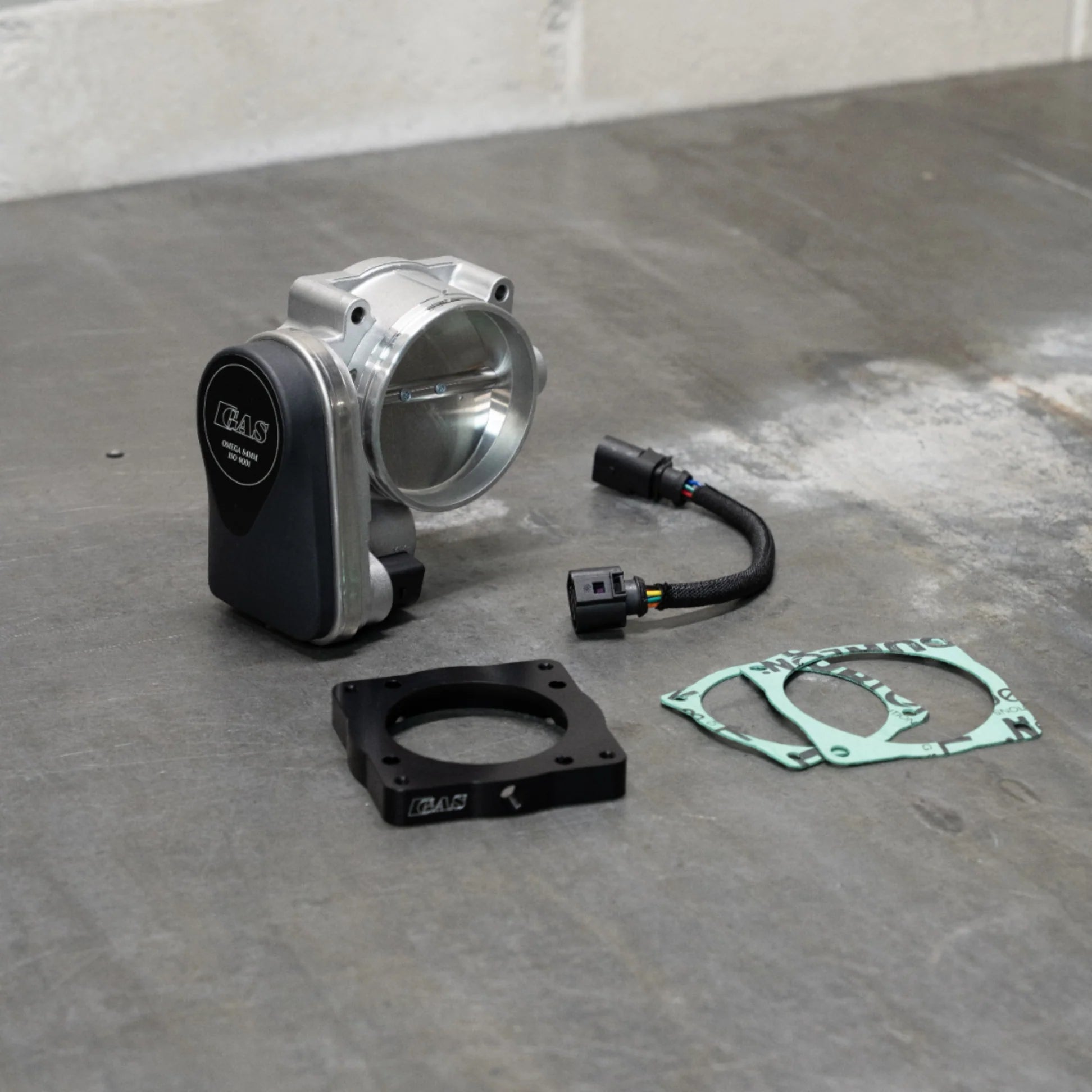

Includes:

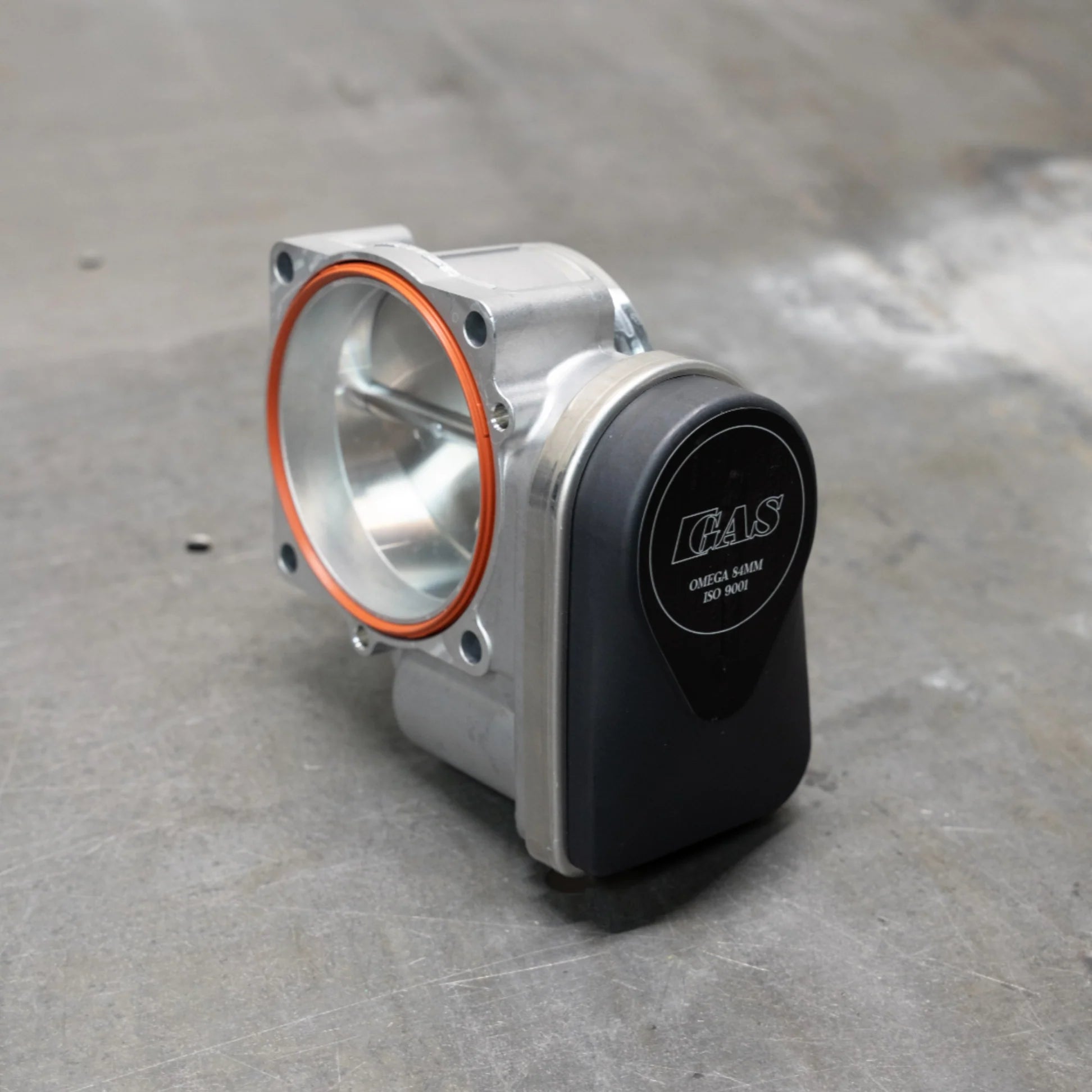

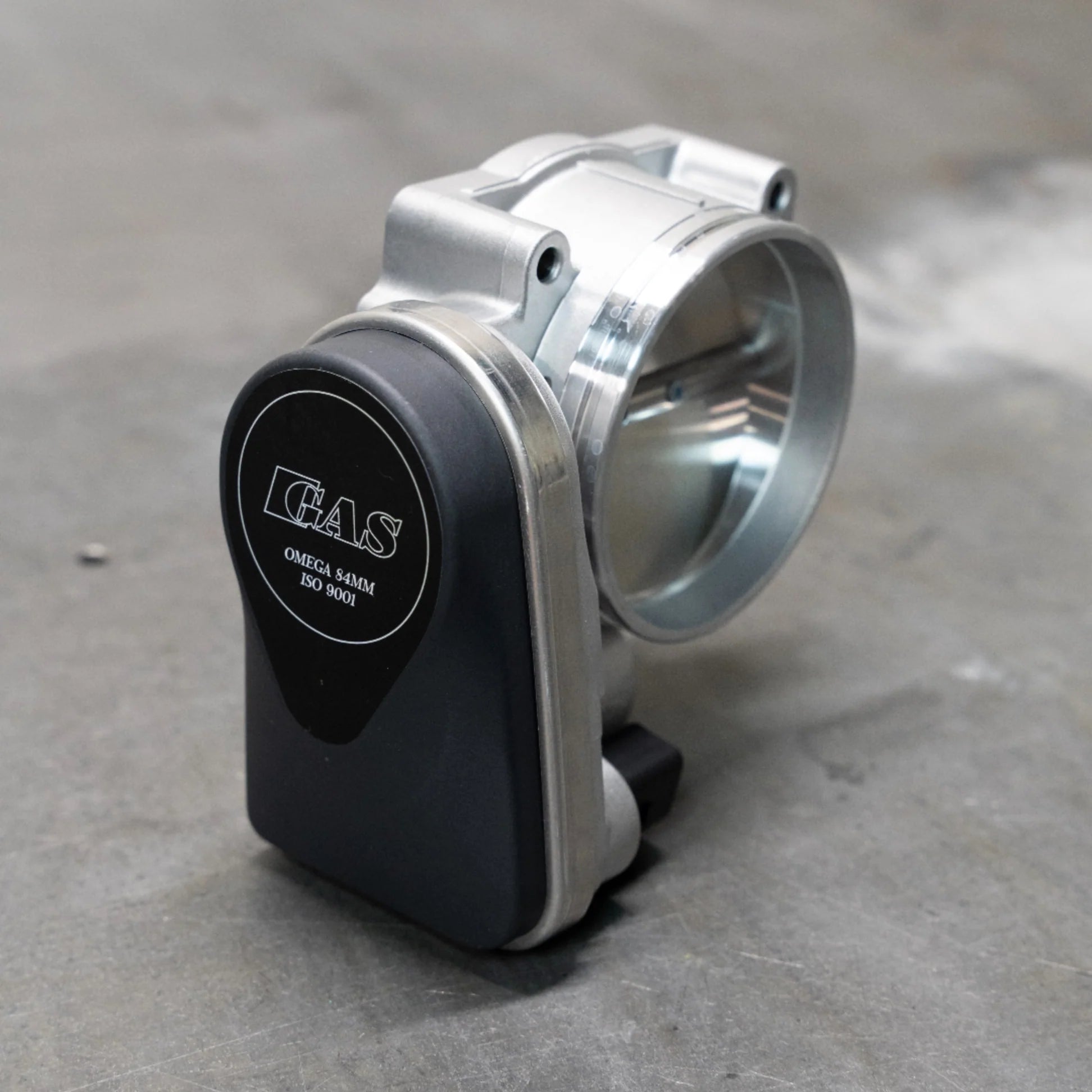

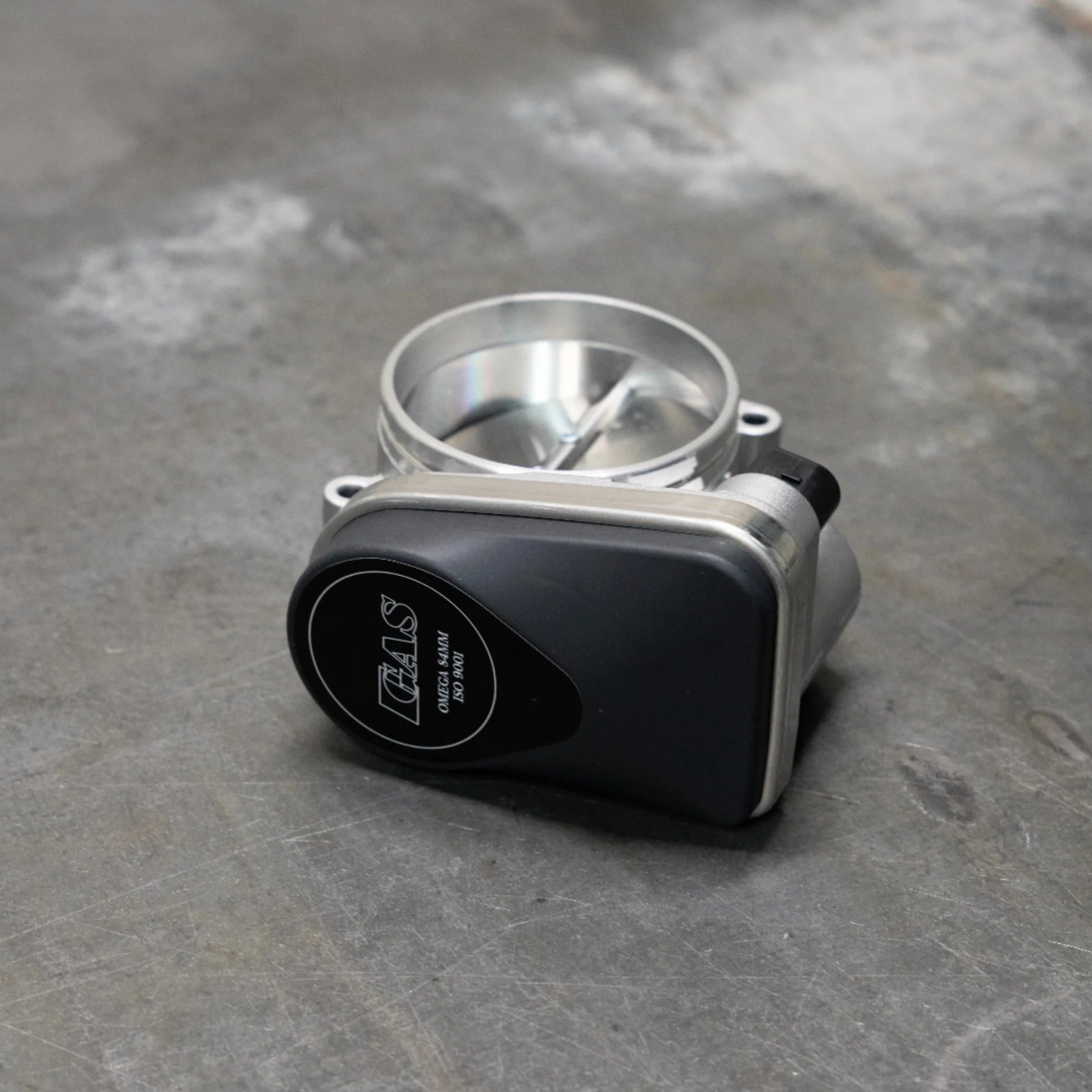

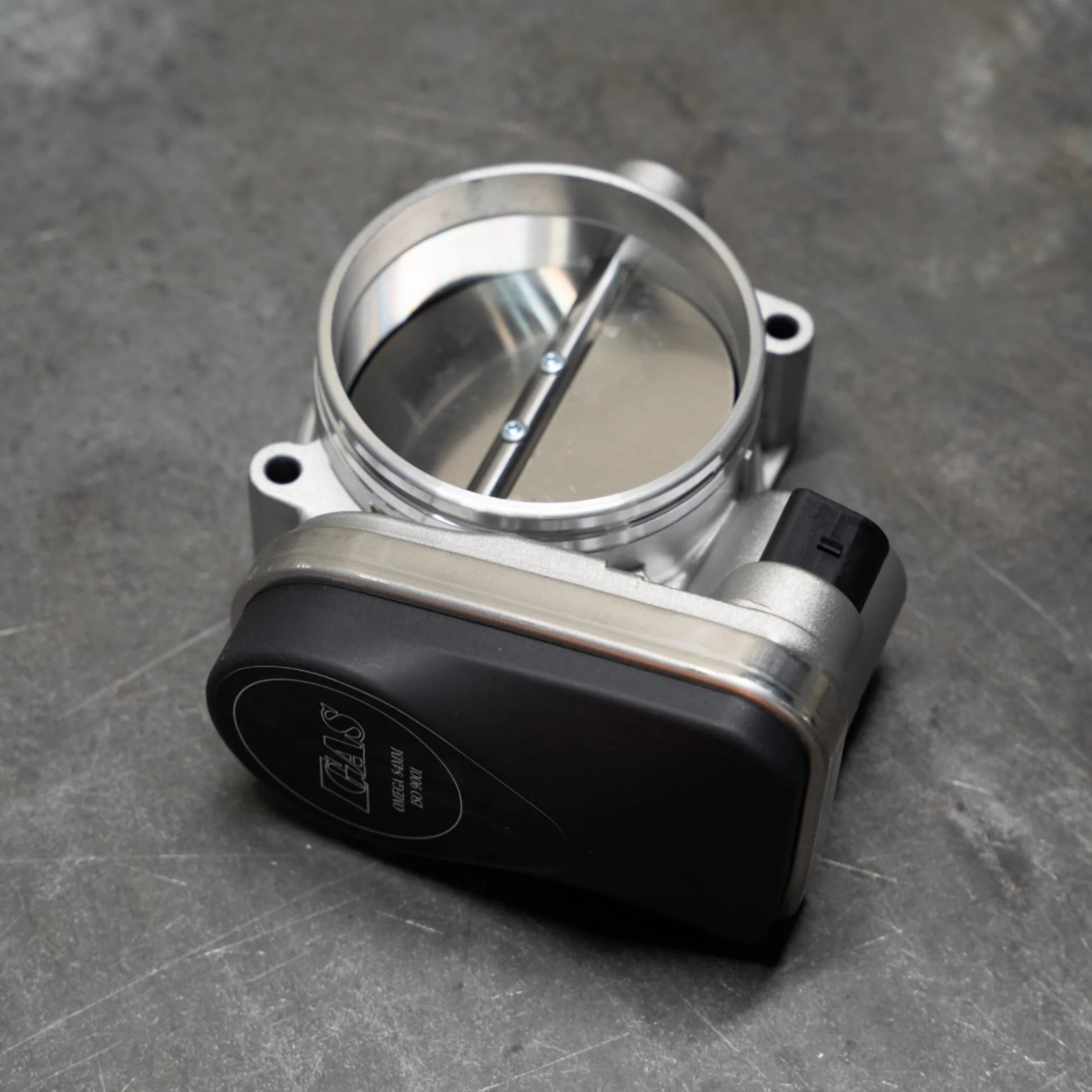

• Genuine VDO 84mm throttle body

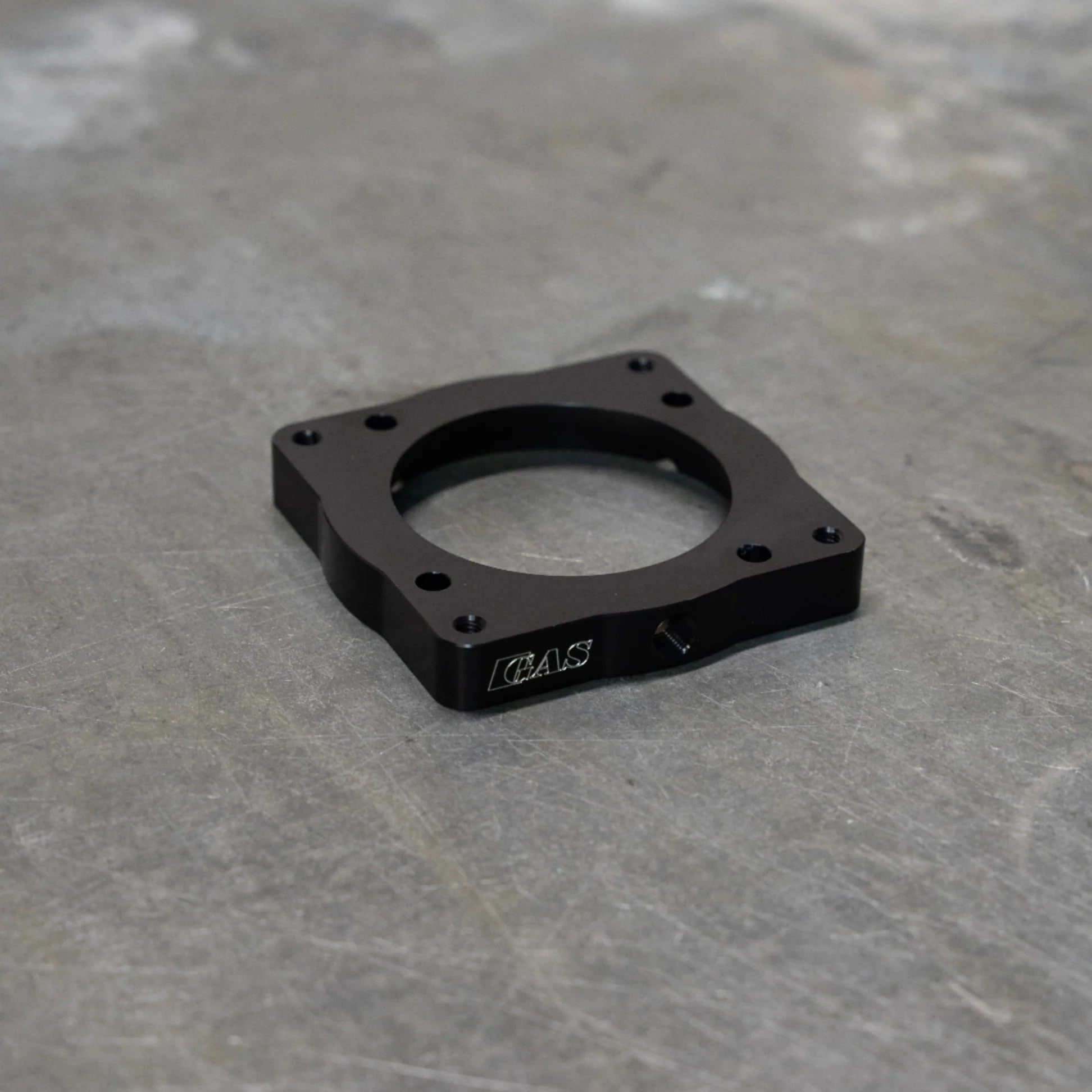

• Billet adapter plate with WMI port
• Wiring harness pinned for Jackal/APR ECU software
• Hardware for throttle body and supercharger
• 1/8" NPT stainless WMI plug
• Fuel/oil & methanol resistant gasket set

Notes:

• This kit will ship with a 3.5" coupler included. If you require a different coupler, please include it in the notes. If you order the throttle body with our 102mm Omega kit, a 3.5" to 4" reducer will be included.
• This kit ships with an o-ring pre-installed into the throttle body, as well as 2 gaskets. The first gasket is meant to be used with the orange o-ring, and provides a flat surface for the o-ring to seal. Do not discard any of the provided seals!
