Overview

Ultra-high performance 2.0T EA113 FSI forged piston set

Details

Forged from 2618 T6 aluminum alloy

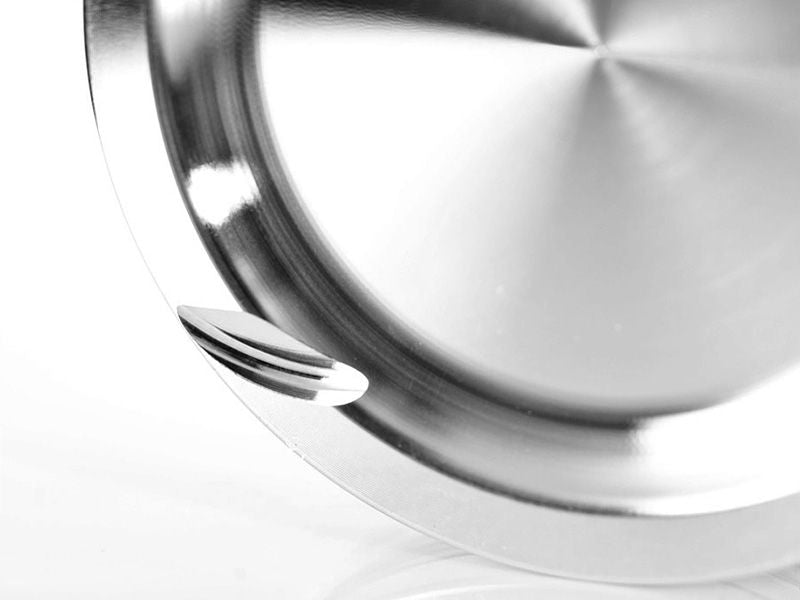

Optimized dish & dome design with valve reliefs; tighter tolerances on 14 critical areas

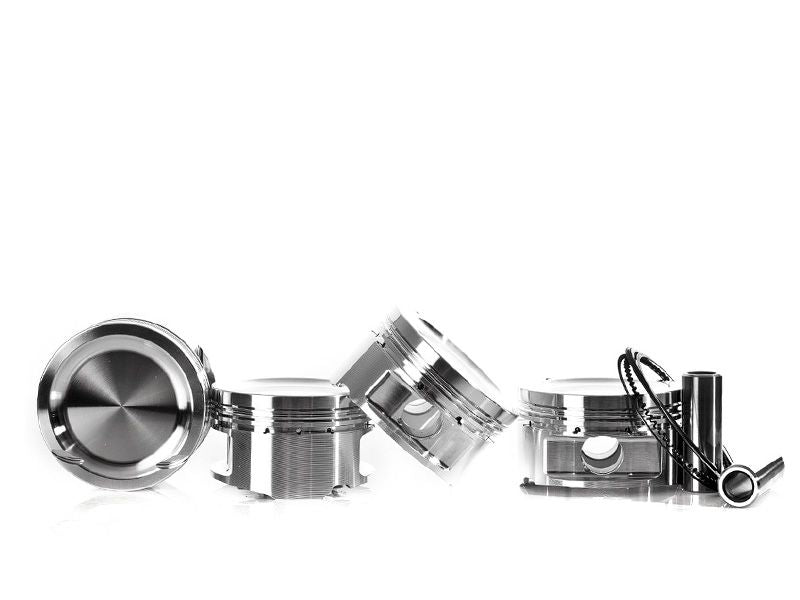

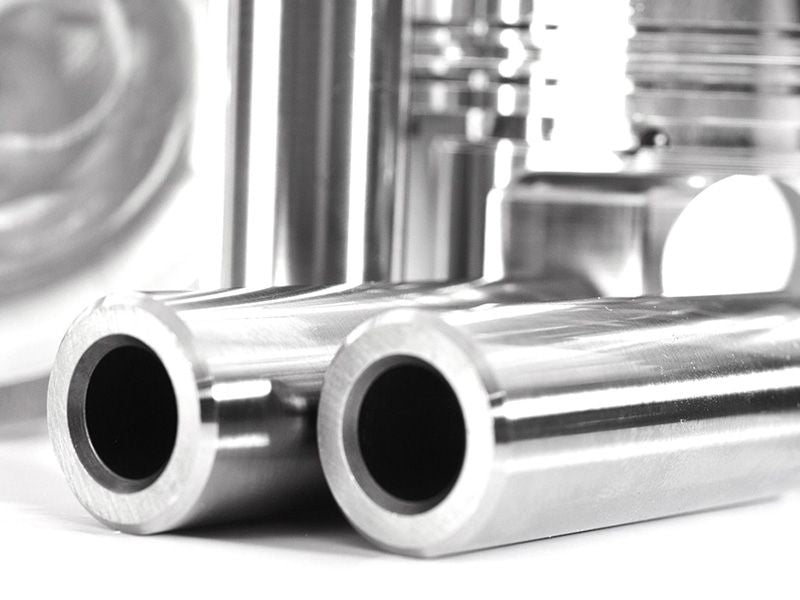

Includes 4 pistons, 4 Pro Seal ring sets, 4 carbon steel wrist pins, 8 pin locks; no dish deburring needed
Stock bore 82.5mm; stroke 92.8mm; rod 144x20
10.3:1 compression ratio recommended for direct injection precision and higher boost tolerance
Tolerates acceleration forces exceeding 8000 Gs and 200+ direction changes/second; piston weight 290-301g depending on CR
Each piston individually serialized; 23-point post-production inspection with dimensional conformity report

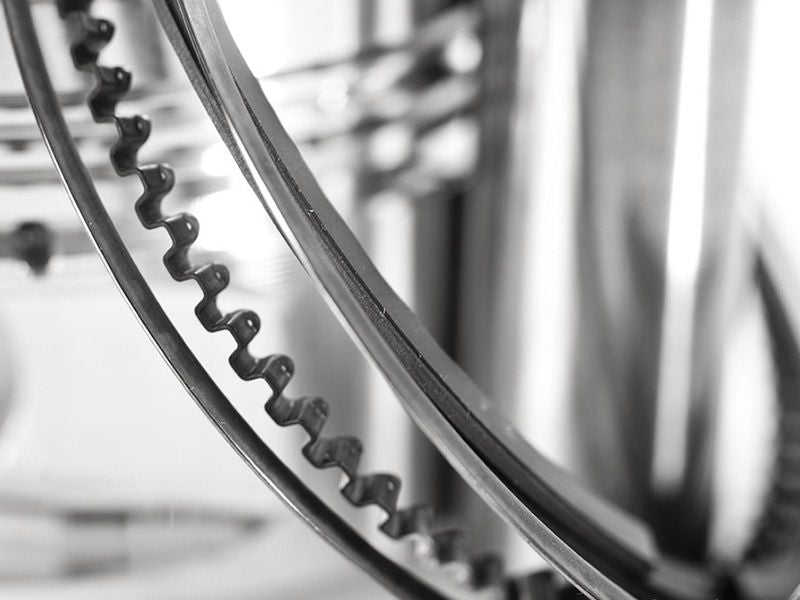

Pro Seal rings: barrel-faced tops with plasma-moly inlays; taper-faced second ring, reverse torsional, phosphate coated
Fits 2.0L 8V EA113 timing-belt engines only; NOT compatible with TSI EA888 timing-chain variants
Compatible with Audi A4/A6/TT/A3/S3 and VW GTI/Golf R/Jetta/Passat/EOS, 2005-2015
Drop-ship item, 1-4 week lead time; optional 180 Tool Steel wrist pin upgrade available separately for engines over 125 HP/cylinder
