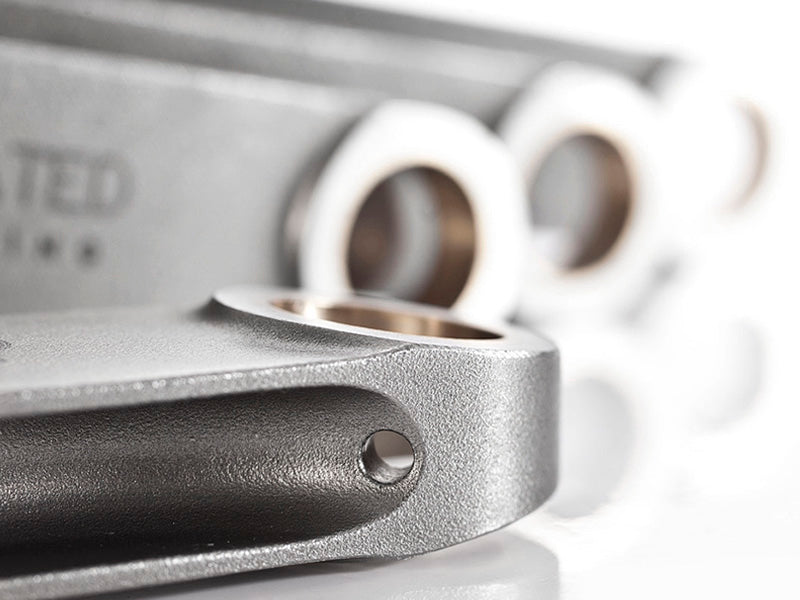

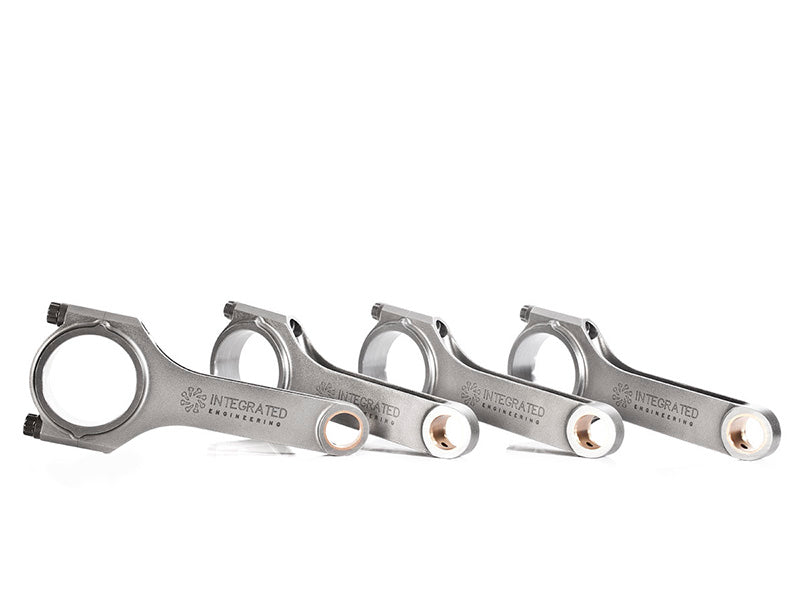

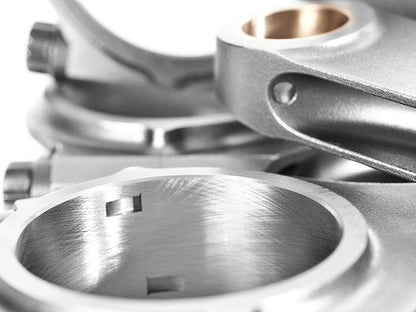

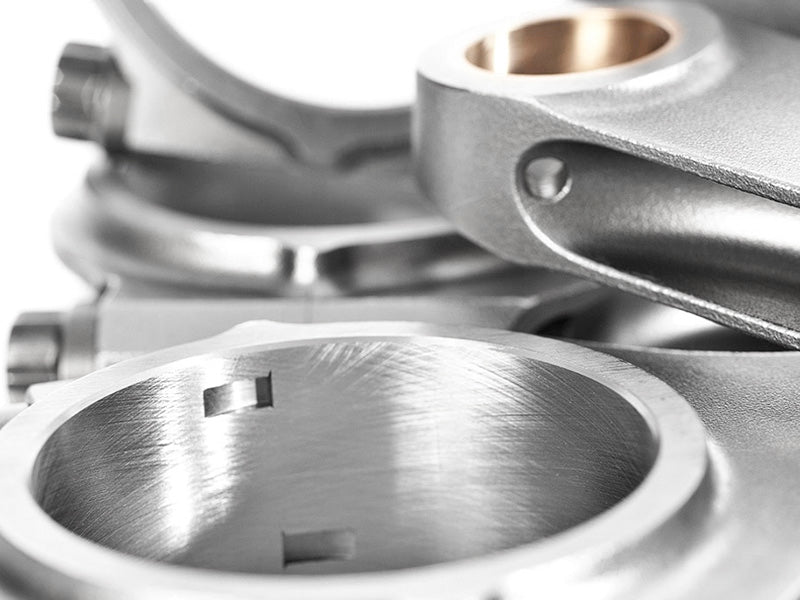

Forged Drop-In Connecting Rods VW & Audi 144X21 | MK6/B8 2.0T EA888 Gen 1 & 2 With Stock Pistons | Integrated Engineering

Overview

Forged from vacuum-drawn 2-piece 4340 chrome-moly steel, H-beam design, computer-optimized

Details

• Tested to 700+ HP on 4-cylinder engines; drop-in for factory 21mm tapered wrist pin pistons only
• Honed to tolerances within 250 millionths of an inch; sets balanced within +/-1 gram
• Dimensionally and magnaflux inspected; multi-stage heat treatment for fatigue life
• Center-to-center: 144mm; wrist pin diameter: 21mm (tapered); big end journal 50.60mm dia
• Average rod weight: 522 grams with bolts

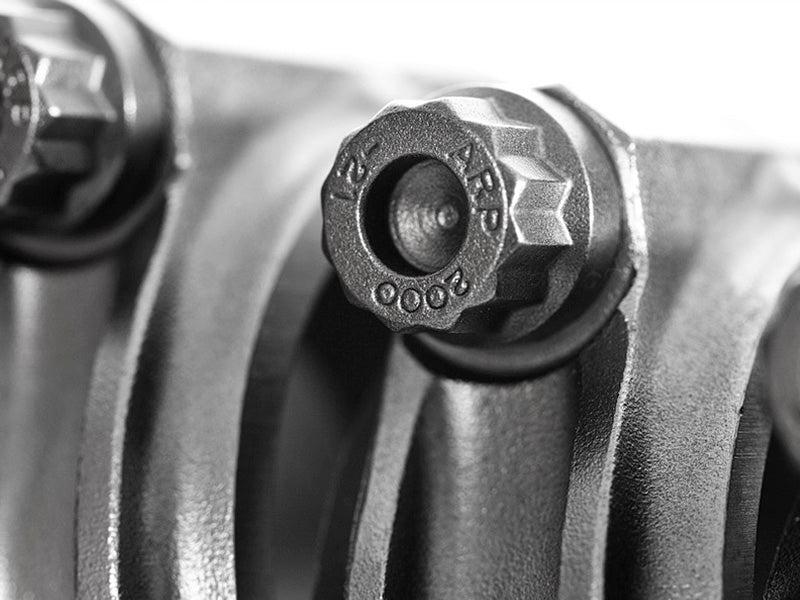

• Includes ARP 2000 spec rod bolts stamped IE (3/8" x 1.5" UHL); torque spec 50 ft-lbs with supplied lube
• Fits VW GTI, Jetta, Jetta GLI, Jetta SportWagen, CC, Passat, EOS, Beetle
• Fits Audi A3, A4, A4 Allroad, A5, A6, TT, Q3, Q5 (2006-2015)
• Engine codes: CCTA, CCZA, CCZB, CBF, CBFA, CAEB

Fitment
