Forged Drop-In Connecting Rods VW Audi 144X20 | MK5/B7 FSI 2.0T EA113 With Stock Pistons | Integrated Engineering

Overview

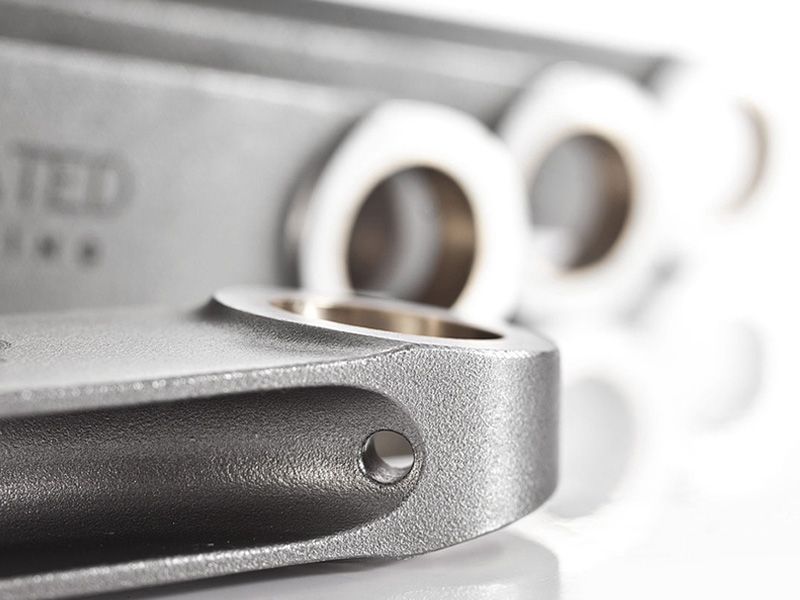

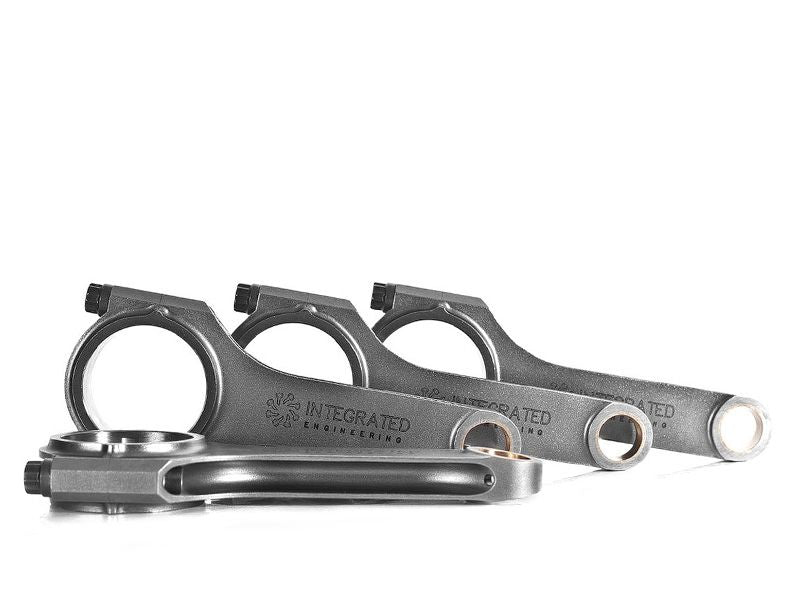

Forged from vacuum-drawn 2-piece 4340 chrome-moly steel, H-beam design

Details

• Multi-stage heat-treated for stability and fatigue resistance
• Rated for 700+ HP on 4-cylinder engines; magnaflux inspected
• Individual computer-optimized design per engine application
• Center-to-center: 144mm; wrist pin diameter: 20mm (tapered, stock piston compatible only)

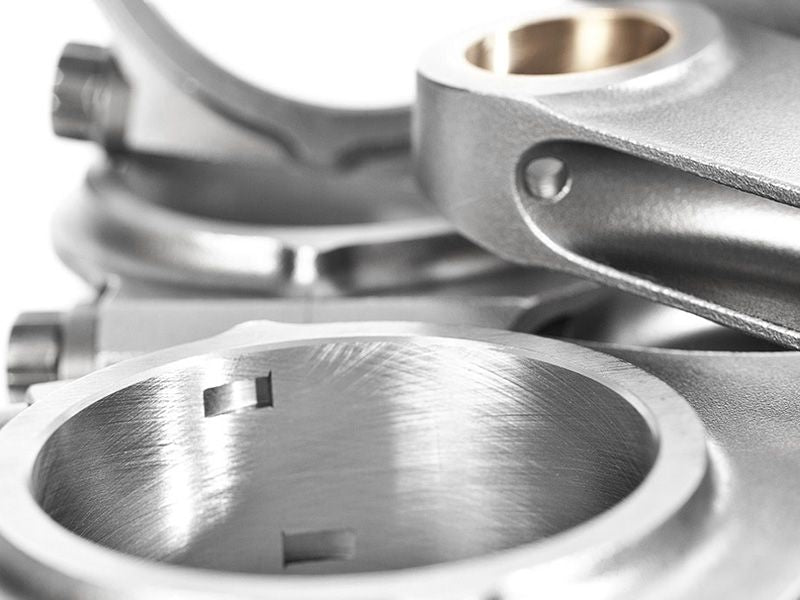

• Big end journal: 50.60mm diameter, 24.90mm width; rod weight 552 grams with bolts
• Rod bolt 3/8" x 1.5" UHL; sets balanced within +/-1 gram

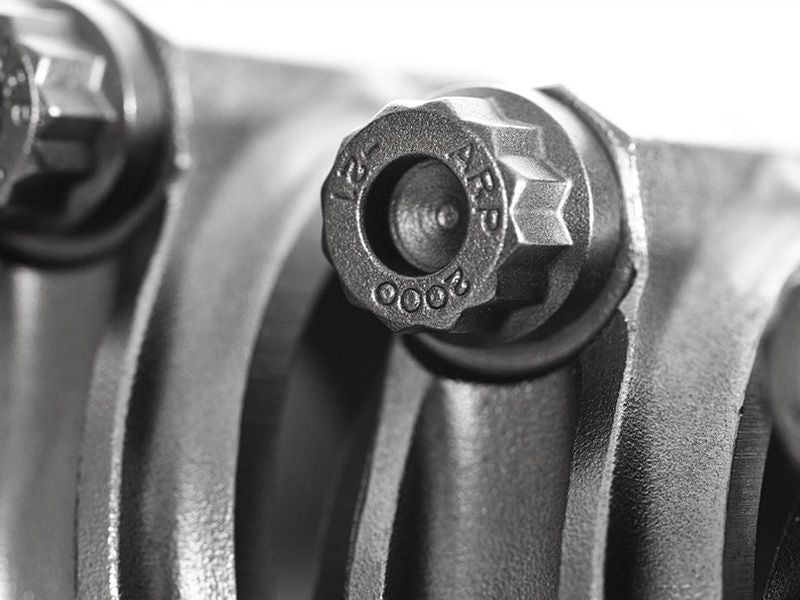

• Honed in-house to 250 millionths of an inch tolerance; includes ARP 2000 rod bolts stamped IE
• Drop-in replacement for VW/Audi EA113 2.0T FSI engines (MK5 GTI, Jetta, Passat; B7 A4; C6 A6; A3, TT)
• Only compatible with stock 20mm tapered wrist pin pistons; engine codes BUL, BWA, BWE, BWT, BYK
• Ready-to-install, no additional machine work required; new rod bearings recommended
• Bearing tang orientation exhaust side preferred; torque spec 50 ft/lbs with ARP lubricant, stretch method preferred at .006"

Fitment
