Forged Drop-In Connecting Rods VW & Audi 144X19 | 1.8T 20V 06A With Stock Pistons | Integrated Engineering

Option No Rifle Drilling Rifle Drilled

$542.99

Fully secure checkout
Trusted
Rated and reviewed

Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

10% offSold out

Overview

Drop-in rod, 19mm tapered wrist pin, for use with stock 19mm pistons only

Details

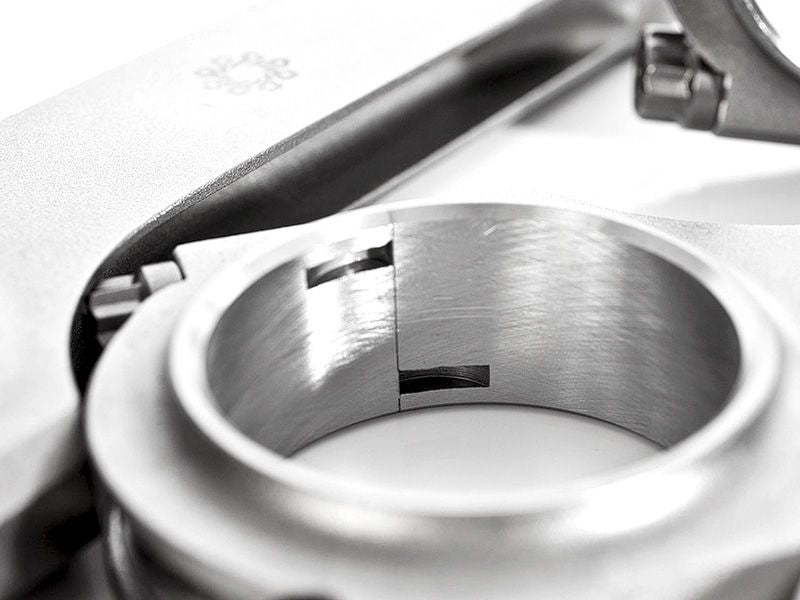

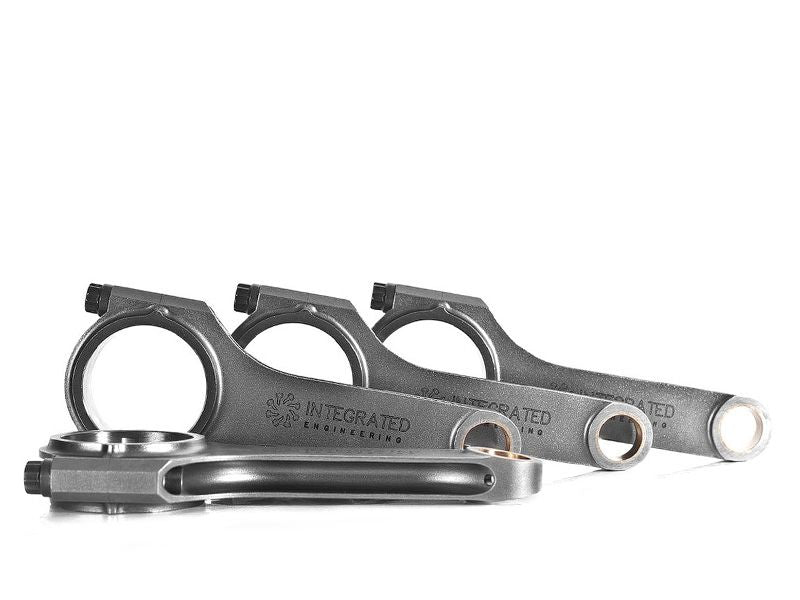

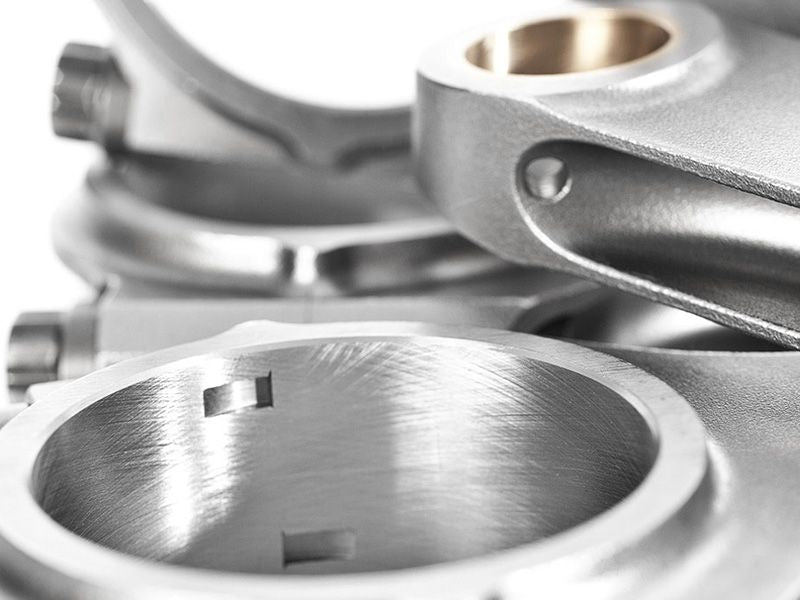

Forged vacuum-drawn 2-piece 4340 chrome moly steel construction, H-beam design
Combination tested to 700HP on 4 cylinder engines

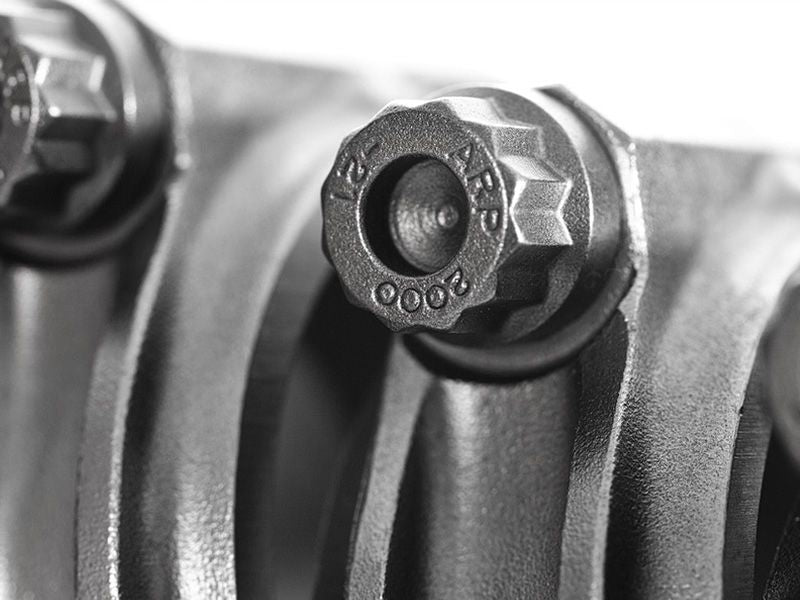

Includes IE-stamped ARP 2000 rod bolts with assembly lubricant
Each set balanced to within +/-1 gram
Center-to-center: 144mm; wrist pin diameter: 19mm (tapered); big end journal 50.60mm dia x 24.90mm width
Average rod weight with bolts: 546 grams; rod bolt 3/8" x 1.5" UHL
Honed to tolerances within 250 millionths of an inch; dimensionally and magnaflux inspected

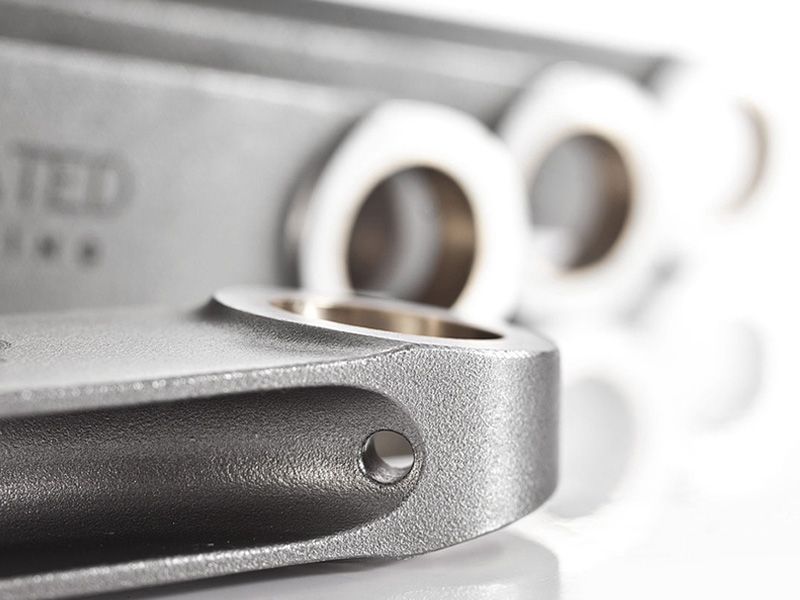

Multi-stage heat treatment; optional rifle drilling (forced pin oiling) available for extended wrist pin life
Fits VW 1.8T 20V 06A engines with stock 19mm tapered wrist pin pistons
Compatible with Audi A3, A4, A6, TT and VW Golf, GTI, Jetta, Beetle, Passat, Corrado, EOS; engine codes AMB, ARX, ARY, AUM, AUQ, AWM, AWP, AWW, BJX
Ready to install, no additional machine work needed; torque spec 50 ft/lbs (ARP 2000) or .006" stretch
New rod bearings recommended; max RPM 8500 with ARP 2000 bolts, upgrade to ARP 625+ for higher RPM
Rod bearings sold separately (Mahle Motorsport, Calico/ACL, OEM)
