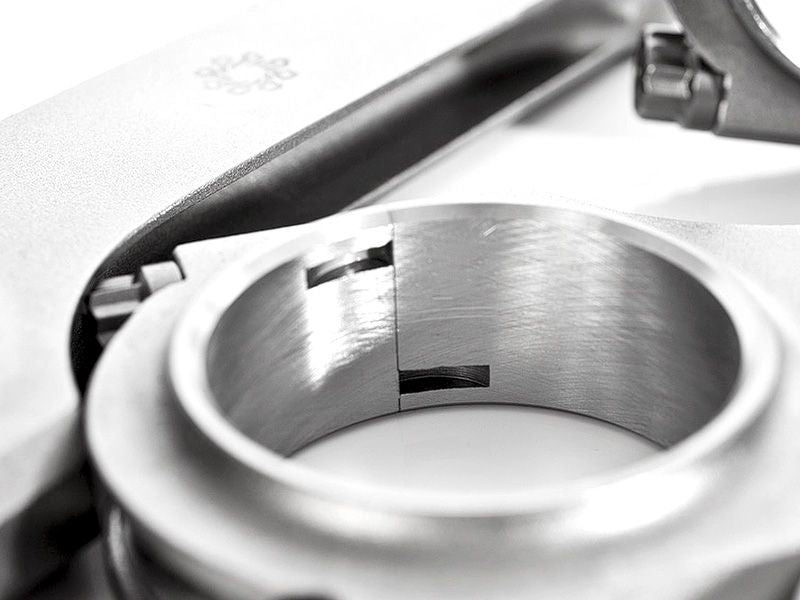

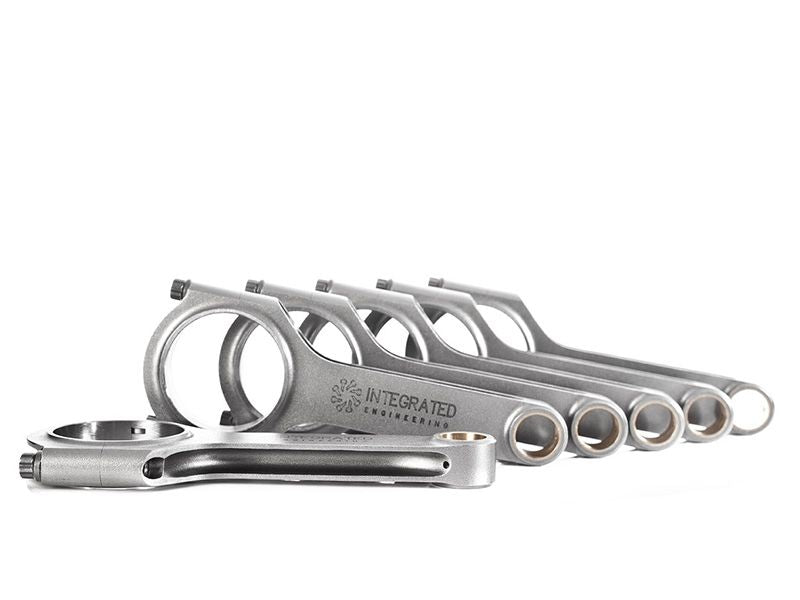

Forged Connecting Rods Audi 154X21 | 2.7T V6 and 2.8L 30V V6 engines | Integrated Engineering

Overview

Note: handle says 145x21 but title/spec text says 154X21 (center-to-center 154mm) - likely a naming discrepancy on the source site, flagging for review

Details

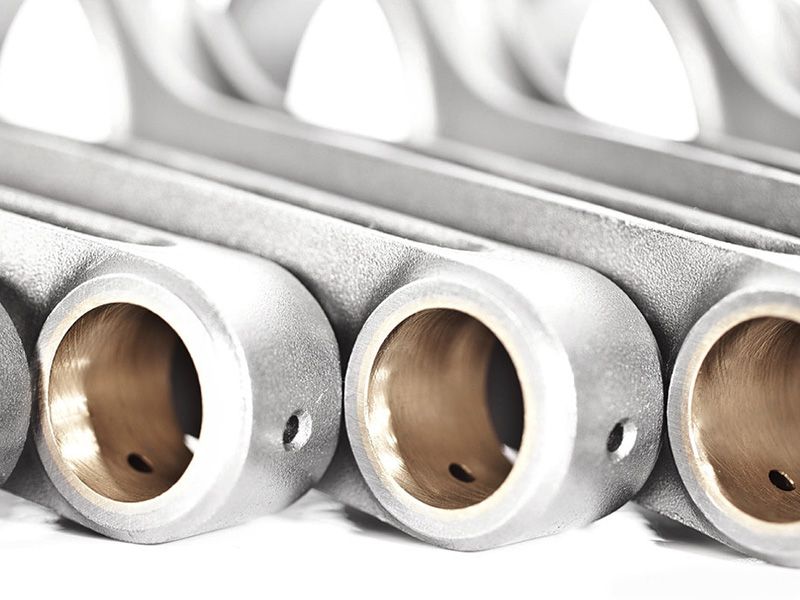

• 21mm wrist pin diameter for factory or aftermarket pistons
• Forged from vacuum-drawn two-piece 4340 chromemoly steel with H-beam design
• Rated for 700+ HP on six-cylinder applications

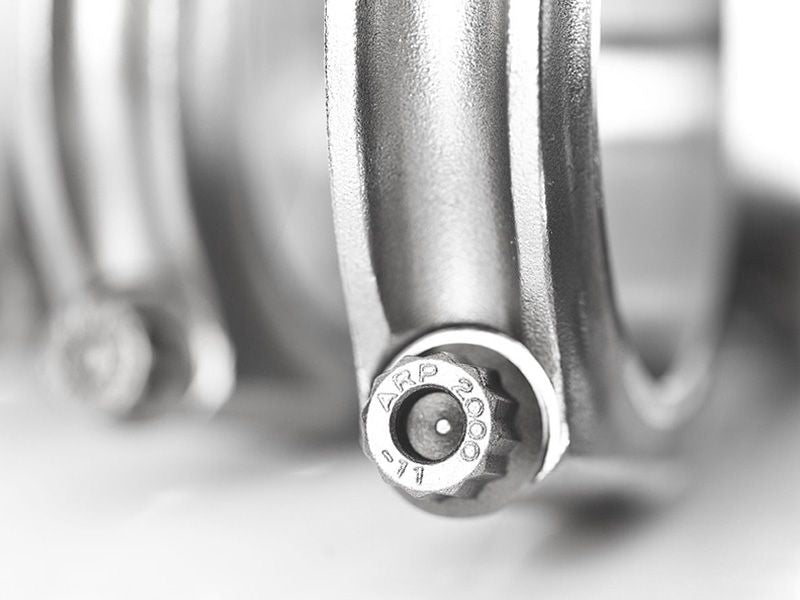

• Includes ARP 2000 rod bolts with IE stamp
• Computer-optimized individual design with FEA analysis validation
• Honed to tolerance within 250 millionths of an inch; balanced within +/-1 gram
• Multi-stage heat treated; dimensionally and magnaflux inspected
• Rod specifications: 154mm center-to-center, 57.60mm big-end journal, 586g weight
• Torque specification: 26 ft/lbs or .0056" stretch using included ARP lubricant
• Compatible with Audi S4/A4/A6 (B5/C5) and VW Passat (B5) 2.7T/2.8L engines
• Not compatible with Audi B5 RS4 2.7T engines

Fitment
