Forged Connecting Rods Audi 144X20 | Fit 10V and 20V 5 Cylinder Engines | Integrated Engineering

Overview

20mm wrist pin compatible with aftermarket and stock pistons

Details

• Forged vacuum-drawn 4340 chrome-moly steel; H-beam design increases strength and durability
• Tested to 700 HP on 4-cylinder engines

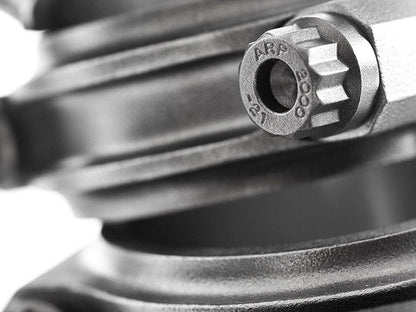

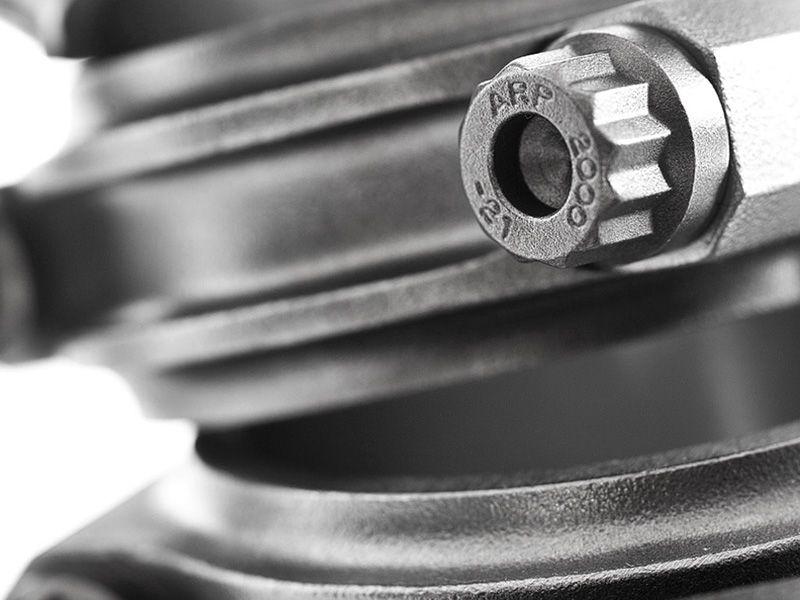

• Includes IE-stamped ARP 2000 rod bolts for authenticity verification
• Computer-optimized design for specific VW/Audi applications; honed to 250 millionths-of-an-inch tolerances
• Rod sets balanced within ±1 gram; multi-stage heat treatment; dimensionally and magnaflux inspected
• Center-to-center 144mm; big end journal 50.60mm diameter x 24.90mm width; average weight with bolts 574g
• Rod bolt: 3/8 inch x 1.5 inch UHL; max RPM 8500 with ARP 2000 bolts
• Fits Audi 10V/20V inline 5-cylinder engines (codes: 3B, 7A, AAN, ABY, ADU, KV, NG, NM)
• Ready-to-install, no additional machine work required; sold in pre-balanced sets

Fitment
