DQ381 G2 (DSG) TCU Tune | VW MK8/MK8.5 GTI | 034Motorsport

Overview

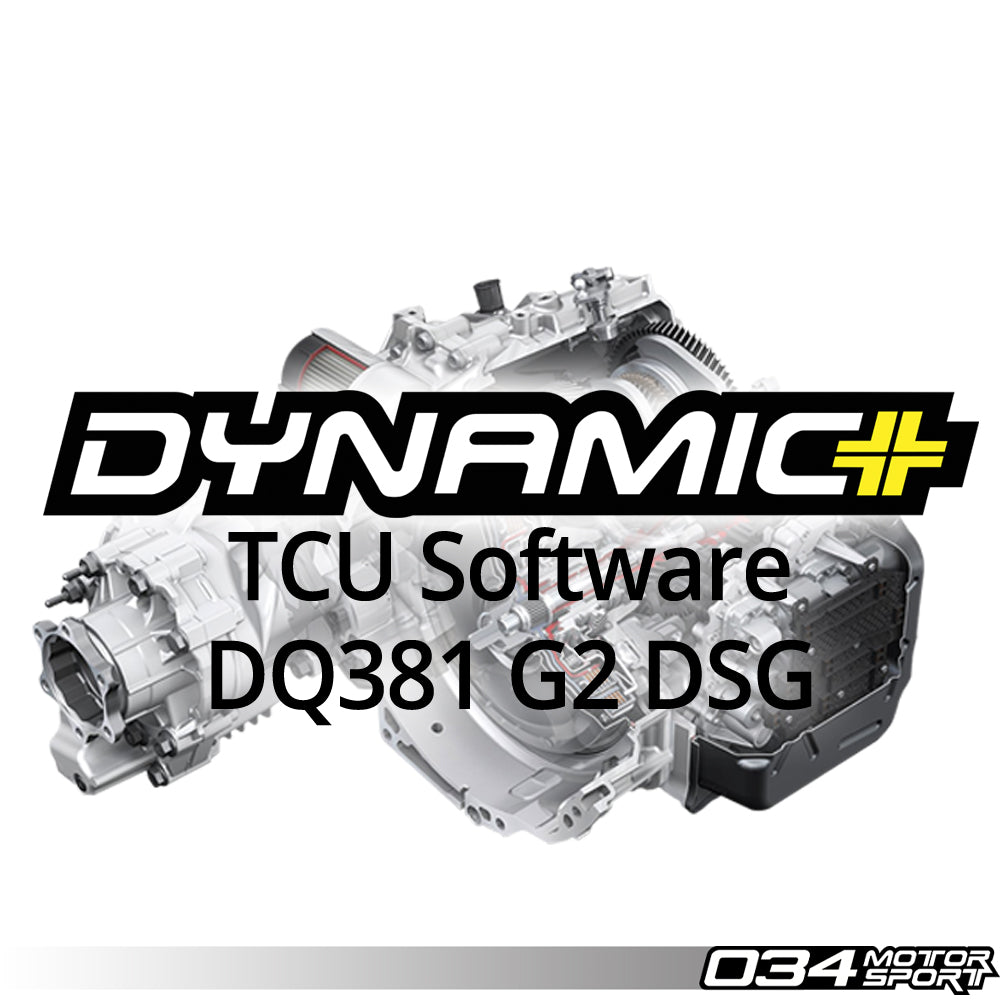

034Motorsport's Dynamic+ TCU Software Upgrade unlocks the full potential of the DQ381 G2 7-Speed DSG transmission found in MK8 Volkswagen GTI models. Flashed directly through your vehicle's OBD-II port, 034Motorsport's proprietary calibrations for the DQ381 G2 TCU safely and effectively raise the torque limits of the DSG, allowing your car to make full use of Dynamic+ Stage 1, Stage 2, or Stage 3 Performance ECU Software. Stage 1 TCU Tuning unlocks the full torque available from ECU tuning, while Stage 2 and Stage 3 further enhance shifting and acceleration.

TCU Compatibility:

2022+ MK8 GTI model-year vehicles are equipped with TCU flashing protections that prevent OBD unlocking and tuning, known as the 401 bootloader. In order to unlock your TCU, add the Boot Loader Unlock (BLU) Harness at checkout — click here for more details. This harness allows for a one-time unlock, enabling OBD flashing via 034SPI so you can flash your Dynamic+ TCU tune. BLU is only compatible with 034SPI and requires that you own a 034Motorsport TCU tune.

Details

As with any automatic transmission vehicle, the ECU and TCU computers work synchronously to properly apply torque to the vehicle's drivetrain in a safe and reliable manner. Within both the ECU and TCU, there are factory safety tables that limit overall torque output based upon what the factory first tuned the car for. The ECU reports the output of torque from the engine to the TCU, and the TCU decides if this is suitable, or too much — if it is too much, the TCU will command the ECU to reduce torque output based upon its safety tables.

034Motorsport takes a holistic approach with its Dynamic+ Tuning, and aims to retain as many OEM safety protocols as possible. While it is possible to tune around the factory TCU torque limiters from the ECU side, this is done at the expense of torque safety features that are integral in keeping your transmission running safely. 034Motorsport's calibrators tune the ECU to work with the TCU to provide accurate torque values, and recalibrate the appropriate safety ranges for the TCU. Taking these extra steps to retain OEM safety systems on the ECU and TCU side is just one of the many reasons that Dynamic+ software provides substantial yet reliable performance increases.

TCU Features

Torque Safety Strategy Enhancements

The Dynamic+ ECU Tuning accurately reports torque values to the TCU to ensure that all safety systems are intact in both control units, and the added torque from tuning is properly adjusted for when driving/shifting, including all safety systems designed to protect the engine and transmission. This results in better shift quality as the transmission is not having to reduce engine torque or having to adapt to misreported inputs.

Clutch Pressure Increases

In order to safely apply the increased horsepower and torque, DSG Clutch Pressures are increased in all drive modes. Expect to feel firmer and more solid shifts!

Optimized Shift Points (Stage 2 & Stage 3)

In order to take advantage of the increased powerband from the turbocharger, Dynamic+ Tuning optimizes the shift points in Drive & Sport Mode to maximize acceleration while retaining smooth drivability.

Improved Shift Speeds (Stage 2 & Stage 3)

To further enhance the acceleration of your GTI, the DQ381 G2 shift times are dramatically decreased in all driving modes, which ultimately results in quicker acceleration.

Launch Control Optimizations (Stage 2 & Stage 3)

From the factory, the DQ381 G2 launch control strategies used are very neutered and designed for a vehicle on a non-optimal surface with low-grip tires. 034Motorsport Engineers have optimized the launch by raising the factory torque limit to take advantage of a better surface and a grippier tire, ensuring your GTI will 60ft much more effectively and efficiently. Additionally, significant work was put into refining how AMAX shifts are applied during Launch Control, ensuring that each shift maximizes potential acceleration without inducing wheelspin.

EMISSIONS DISCLAIMER

• This product is sold for racing use as well as use on vehicles not registered for on highway use.
• By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.
