PRODUCT DESCRIPTION:

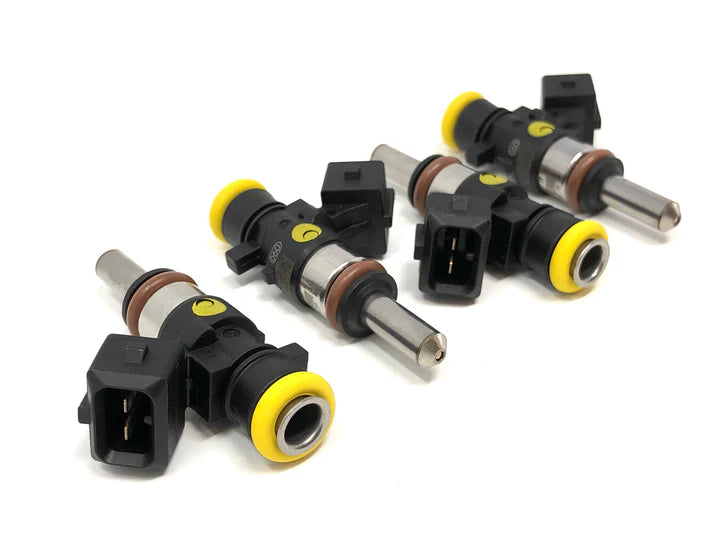

The Precision Raceworks Genuine Bosch Motorsports EV14 extended tip fuel injectors featuring EV1 connector matched and packaged in pack of 4 or 6 units.
Features
- Full stainless wetted internals for corrosion resistance compatible with all known fuels
- Proprietary spray pattern perfect for use in EA888.3 & center fire BMW manifolds
- Strong magnetic valve design capable of stable operation up to 10 bar
- Advertised flow rates
-
925cc* Version
- Minimum Flow 800cc @ 3bar (43.5 PSI)
- Minimum Flow 925cc @ 4bar (58 PSI)
- Minimum Flow 1050cc @ 5 bar (72.5 PSI)
-
1300cc* Version
- Minimum Flow 1125cc @ 3bar (43.5 PSI)
- Minimum Flow 1300cc @ 4bar (58 PSI)
- Minimum Flow 1450cc @ 5 bar (72.5 PSI)
- Matched both Static and Dynamic within 2%
- Certificate of Conformance provided with each set proving actual flow data
- Individually serialized injectors that match flow data from Certificate of Conformance
For more product details see the specifications tab
*Actual flow rate may vary, as the advertised rate is based upon an overall average.
Injector Dead Times
1300cc / 925cc - Injector Dead Times
|
8v |
10v |
12v |
14v |
16v |
| 2bar |
2.071 |
1.487 |
1.138 |
0.0649 |
0.0806 |
| 3bar |
2.906 |
1.801 |
1.362 |
0.914 |
0.814 |
| 4bar |
X |
2.017 |
1.481 |
1.143 |
1.036 |
| 5bar |
X |
2.222 |
1.874 |
1.164 |
1.114 |
|
