Blaze Performance AToM V2 Intake System - VW/Audi MQBe Golf R (Mk8) / S3 (8Y) 2.0T
Blaze Performance AToM V2 Intake System - VW/Audi MQBe Golf R (Mk8) / S3 (8Y) 2.0T
Regular price
$550.00
Sale price
$550.00
Regular price
$480.00
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted
- Rated and reviewed
Question about this product?
We're happy to help.
Blaze Performance is located in South Africa. Due to the many variations of the Blaze AToM intake, your order will be drop shipped from South Africa to the USA. Please expect an approximate of a 3 week delivery time frame.
Upgrades from certain intakes may necessitate revision to boost strategy. Please submit a datalog to your calibrator for review to ensure tune optimization.
*Fitment Note: Due to the large ducting to scoop maximum amounts of air, certain aftermarket hoods that have center vents may have clearance issues. We recommend checking out Vaarticus' install video as a reference for clearance.

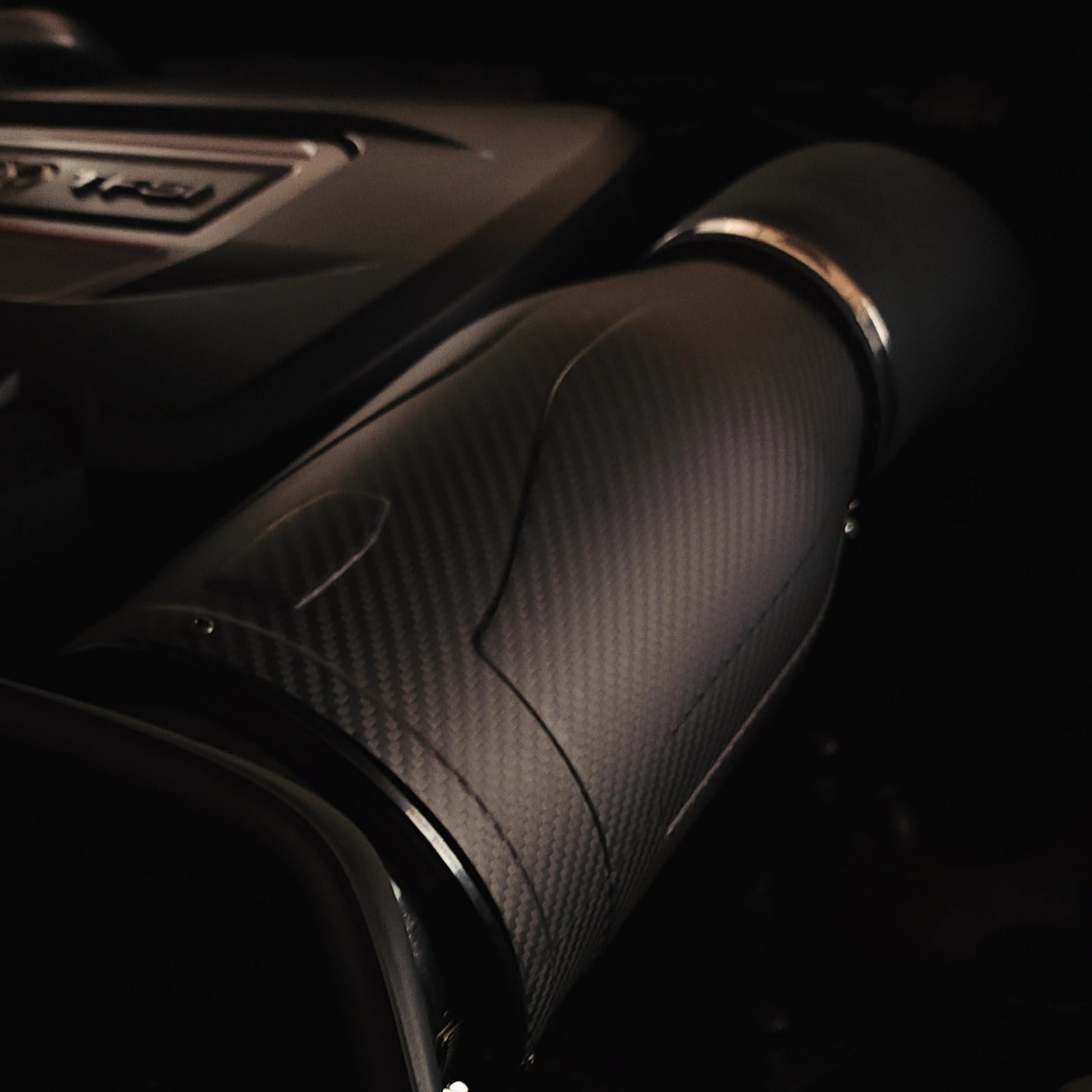

This intake system features a full-width air deflector to ram as much air as possible into the engine through the massive 120mm air filter!
Significant gains have been shown on our Stock Turbo powered Mk8 Golf R when compared to the factory inlet/intake which can be seen on the dyno chart below where all testing was performed back to back on our Mustang chassis dyno, with identical ambient conditions. We also took great care to make sure fluid and even tire temperatures were consistent. Finally, we chose the average runs out of each set of 4 for the comparison. No cherry picking here, we really wanted to see what kind of gains these parts offer in a fair environment.
Cleaning Instructions
For filter cleaning instructions, check out our FAQ
As you may know, the MK8 Golf R has a turbine speed sensor built in from the factory. This is an extremely valuable tool in determining effectiveness of aftermarket parts and tuning and gathering general data. So the final chart you will see below is an overlay of log data including boost (in psiA), and turbine speed.
Both sets of data are from our OTS Stage 1 E85 tune; red is with the stock intake, and blue is with the Blaze intake. You can see that while boost levels remain very similar, the turbine speed with the stock intake is significantly higher throughout the pull. At the top end, you can see that it peaks and starts to drop off as it hits the speed limit we set in our tune. With the Blaze intake installed, the turbine speed is well under that limit and actually allows the ECU to hold a bit more boost at the very top.
Features
- 100mm (4") Case Outlet
- 4-Ply Steel Reinforced Turbo Inlet Pipe
(100mm Inlet ID, 76mm Outlet ID) - 56mm ID Turbo Inlet Flange with Viton O-Ring
- 160mm Air Accumulator / Heat Shield
- Rubber Seal for a tight fit to the hood
- Reverse Mounted 120mm Washable Cone Filter
- Full-Width Cowl for optimum airflow
Vehicle Fitment
- VW Golf R (Mk8 / Audi S3 (8Y)
Installation
For Installation instructions click HERE (Coming Soon)
Dyno Charts
Golf R (Stage 1): E85
- Crank Horsepower
- Wheel Horsepower
Golf R (Custom Tune): E60
- Crank Horsepower
- Wheel Horsepower
