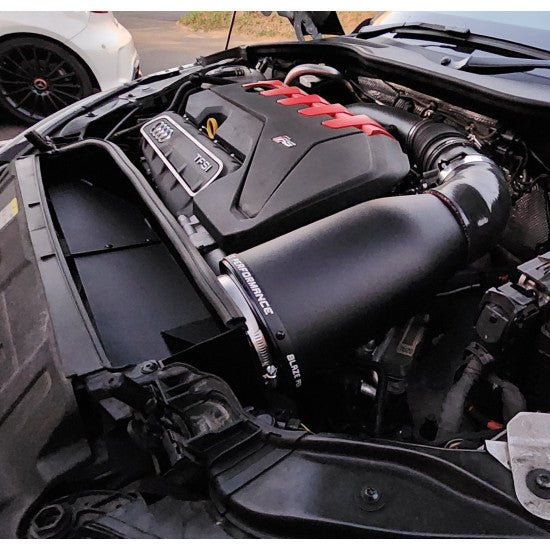

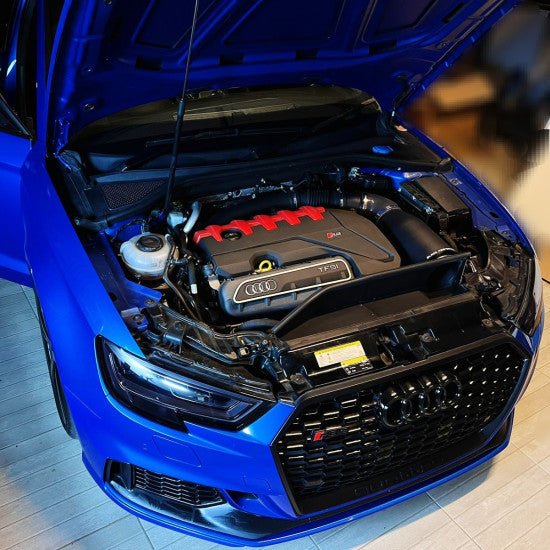

AToM Race RS - An Advanced Air Intake System Exclusively Engineered for Audi MQB/e RS3 / TT-RS 2.5T (8V/8Y/8S)
We have a fresh take on our renowned AToM Race air intake system, re-imagined specifically for the engine requirements of the Audi RS3 and TTRS 2.5T EVO MK3.
We have optimized the design of the air inlet duct to maximize airflow into the air intake tract. This gets air in through the grille and past the slam panel to increase airflow whilst reducing resistance. In conjunction with the strategically placed rubber seal, the design mitigates the intake of air from the hotter under-bonnet area, thus ensuring optimal ram air effect.
The system guides the air into a high-flow 120mm/4.7-inch reverse-mounted cone filter. Its unique inverted cone design allows for peak engine breathing and unparalleled performance.
Further enhancing the AToM Race RS's efficiency, the cone filter is housed within a 160mm/6.3-inch air accumulator. Doubling as a heat shield, it navigates and shapes the air as it exits through a 100mm/4-inch outlet.
The AToM Race RS air intake system is designed to ensure minimal flow resistance, maximum ram effect, and isolation of engine air from the airflow path.
Key Features:
-
Full-Width, Stepped Back Air Guide: The air guide catches air from both grille inlet ducts without blocking them. This minimizes turbulence as air rushes into the grille, allowing it to pass smoothly. The duct seals against the hood, creating a large clean space for air to enter and be guided into the 120mm filter inlet for maximum ram air effect.
-
Reverse Mounted, Washable, Reusable 120mm (4.7_) Dry Cotton Filter: This large diameter filter inlet minimizes resistance to flow, providing a huge mouth for air entry. The shaped filter outlet ensures air exits as smoothly as possible.
-
100mm (4_) Outlet heat shield: Sealed inside a powder-coated aluminium case, the air filter shields against hot air from the engine bay. This provides a large volume for air accumulation, and a 100mm (4_) outlet ensures high-volume airflow.
-
Silicone coupling: Perfectly matched, 4 Ply silicone coupling from intake to stock intake piping.

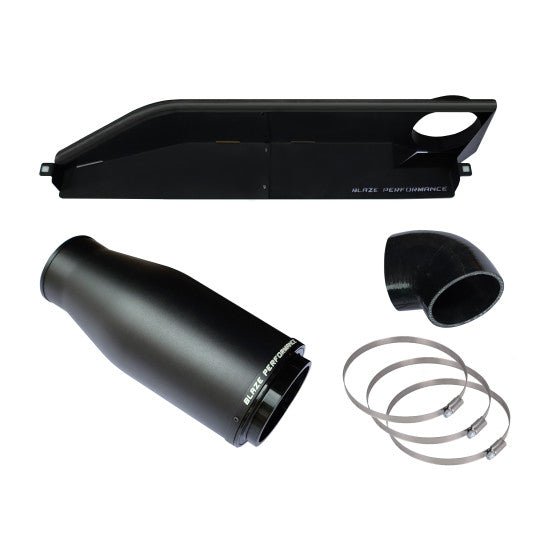

Specifications:
- 100mm (4_) Outlet, Powder-Coated Closed Aluminium Casing
- 120mm (4.7_) Dry Cotton Filter
- 4 Ply Silicone coupling
- Bolt-on fitment
Vehicle Fitment Guide:
-
Audi RS3 2.5T EVO (EA855) Ð 2018 onwards.
-

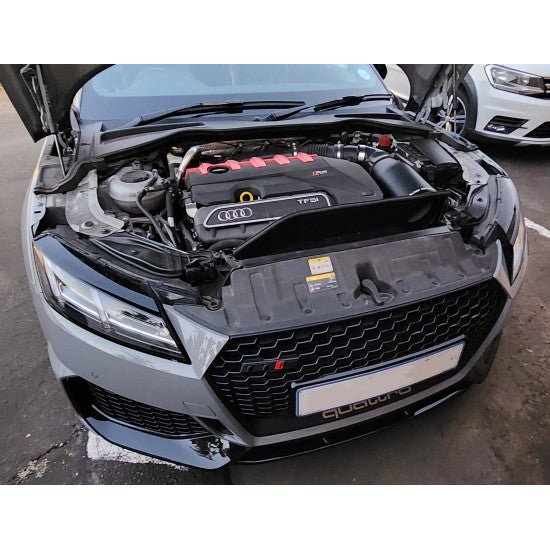

Audi TTRSÊ2.5T EVO (EA855) Ð 2018 onwards.
