AL552 (ZF8) TCU Tune | Audi B9/B9.5 S4/S5/SQ5 | Integrated Engineering

Overview

Unlock the full performance potential of your B9/B9.5 Audi S4, S5, or SQ5 with the Integrated Engineering (IE) Performance TCU Tune. Designed to work seamlessly with IE ECU calibrations, this transmission software delivers faster shifts, optimized gear selection, improved launch control, and enhanced torque management for quicker acceleration and a more responsive driving experience. Whether you're daily driving or pushing your Audi at the track, the IE TCU Tune refines transmission behavior while maintaining smooth, OEM-like operation. Installation is quick and convenient through the IE POWERlink mobile app using your vehicle's factory OBD-II port.

Details

• Performance-Optimized Shifting: Dramatically faster shift speeds, revised shift points, and optimized gear selection maximize acceleration while keeping the engine in its ideal powerband.
• Optimized Shift RPM: Each gear is recalibrated to shift at the ideal RPM for maximum acceleration in Drive, Sport, and AMAX modes. Manual mode retains full driver control with a 6,500 RPM rev limit in every gear.
• Enhanced Launch Control: Reworked Launch Control improves off-the-line performance. 2017–2020 (B9) models feature user-selectable Street, Aggressive, and Race launch settings, while 2021+ (B9.5) models receive an optimized launch strategy for improved 0-60 performance.
• Manual Mode Enhancements: Enables a 6,500 RPM rev limit in every gear, allows downshifts into 1st gear without coming to a complete stop, and reduces delays during multi-gear downshifts for faster throttle response.
• Improved Driveability: Revised Drive and Sport mode calibrations reduce unnecessary gear hunting, enable 7th and 8th gears in Sport Mode, and deliver quicker power on demand with smoother transmission behavior.
• Increased Transmission Performance: Optimized torque mapping, increased clutch holding capability, and transmission slip protection help the gearbox confidently handle increased engine output from performance ECU tuning.
• ECU Tune Integration: Specifically calibrated to complement IE ECU Tunes for seamless engine and transmission communication, maximizing performance and drivability.

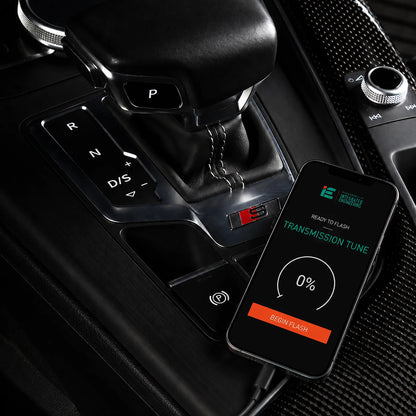

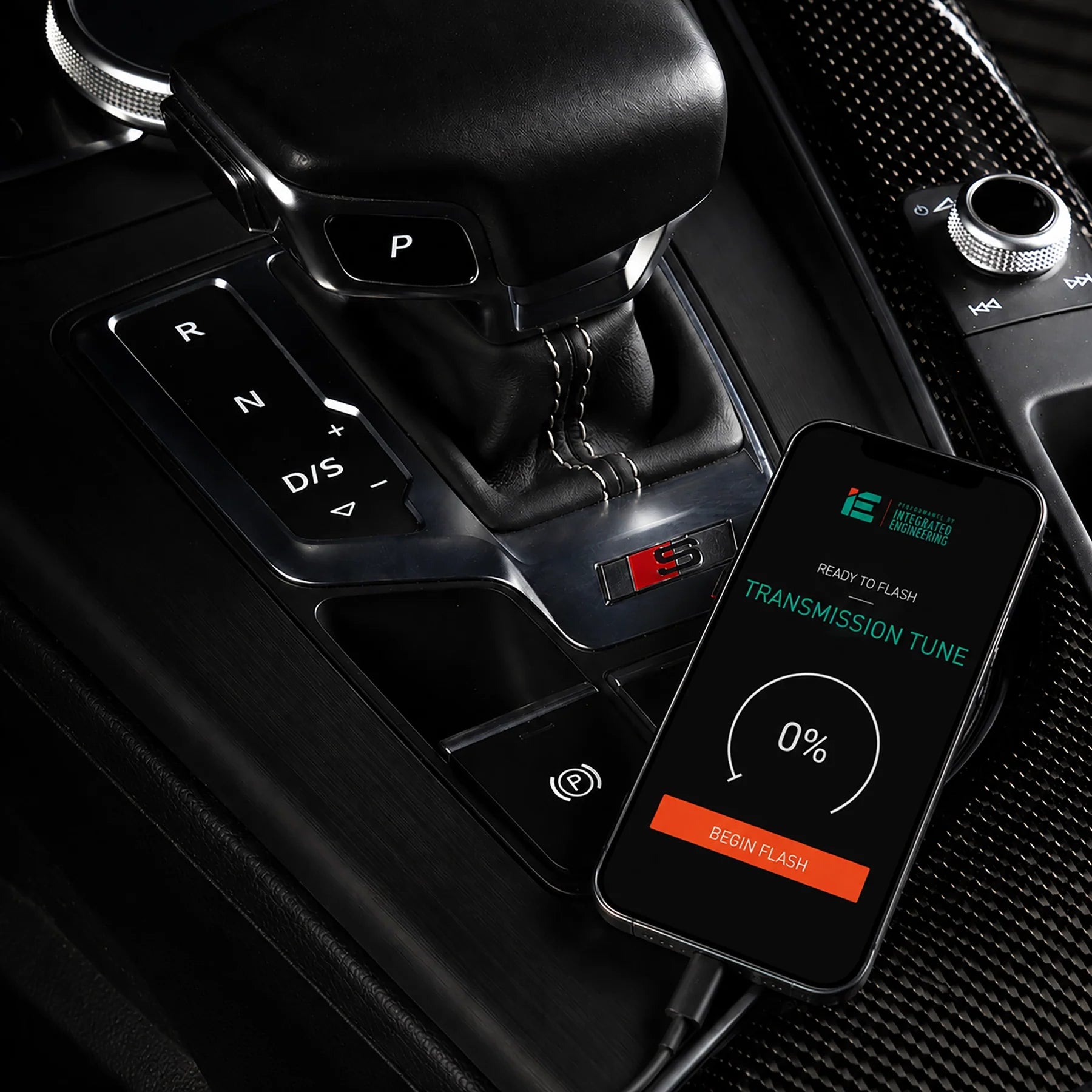

• Easy Mobile Flashing: Flash, update, or restore your TCU tune directly from your smartphone using the IE POWERlink Suite App and POWERlink cable. A single POWERlink device can flash both IE ECU and TCU tunes, eliminating the need for multiple cables.

Compatibility Notes

• Designed to work with Integrated Engineering ECU Tuning
• Flashes through the factory OBD-II port using the IE POWERlink Suite App
• 2022–2024 (B9.5) vehicles may require TCU unlock verification before tuning due to factory transmission security.

Important Notes

• Some 2022–2024 (B9.5) transmissions are equipped with factory security protections that cannot currently be unlocked for tuning. Verify compatibility using the IE POWERlink Suite App before purchasing.
• User-adjustable Launch Control settings are available
• Optimized automatic shift RPM is approximately:
  • 1st: 6,150 RPM
  • 2nd: 5,850 RPM
  • 3rd: 5,600 RPM
  • 4th: 5,650 RPM
  • 5th: 5,650 RPM
  • 6th: 5,650 RPM
• Manual mode retains a 6,500 RPM rev limit in every gear for complete driver control.
• One IE POWERlink cable can flash both ECU and TCU tunes if purchased together.
