034Motorsport is proud to offer the ultimate rear sway bar upgrade for the B8/B8.5 Audi Q5/SQ5 & C7/C7.5 A6/S6/RS6, A7/S7/RS7! The 034Motorsport Adjustable Solid Rear Sway Bar is made from high-quality spring steel and utilizes one-piece construction for maximum rigidity. Engineered to be used effectively with the stock front sway bar, the 034Motorsport Adjustable Solid Rear Sway Bar substantially reduces body roll while greatly improving turn in and off throttle oversteer, without compromising comfort on the street. This Sway Bar also utilizes greaseless Teflon-lined bushings for a service-free and silent driving experience!
Please Note: We highly recommend using this upgrade in conjunction with Spherical Rear Sway Bar End Links for maximum performance.
Please Note: For lowered vehicles, always check all clearances over the full articulation of the suspension in order to identify possible interference. We recommend running 034Motorsport suspension components, as they have been designed and tested to work together, without interference.
034Motorsport is proud to offer the ultimate rear sway bar upgrade for the B8/B8.5 Audi Q5/SQ5 & C7/C7.5 A6/S6/RS6, A7/S7/RS7! The 034Motorsport Adjustable Solid Rear Sway Bar is made from a single piece of high-quality, 25.4mm thick spring steel for maximum rigidity, and is designed to combat understeer while reducing body roll under hard cornering.
This product was tested thoroughly on the street and track on multiple enthusiast-owned Q5/SQ5 and C7 chassis Audi models before release. The 034Motorsport Adjustable Solid Rear Sway Bar substantially reduces understeer and body roll on B8/B8.5 Audi Q5/SQ5 & C7/C7.5 A6/S6/RS6, A7/S7/RS7 vehicles without compromising comfort on the street.
In addition, the 034Motorsport B8/B8.5 Audi Q5/SQ5 & C7/C7.5 A6/S6/RS6, A7/S7/RS7 Rear Sway Bar is engineered to be used effectively with the stock front sway bar. No upgrade in the front is required. The addition of a stiffer front bar can positively affect turn-in feel, but ultimately worsens the platform's tendency to understeer. With the stock front sway bar and upgraded 034Motorsport Solid Rear Sway Bar, body roll is virtually eliminated while turn in and off throttle oversteer are greatly improved.
Features:
- 25.4mm Diameter
- Solid Spring Steel Construction
- One-Piece Design
- 2-Way Adjustable
- Designed to be used in conjunction with the stock front sway bar.
- Greaseless, Maintenance Free, Teflon Lined Polyurethane Bushings
- Teflon and Polyester Composition Liner That Virtually Eliminates Noise, Vibration and Harshness (NVH).
- Improves Sway Bar Response Speed
- Extended Service Life
- No Additional Lubricant Needed, and Should Not Be Added
- Hydrophobic and Waterproof, Will Not Absorb Water or Be Affected In Even The Wettest Environments
- Is Not Chemically Reactive and Will Not Be Affected By Common Chemicals Present In The Automotive Environment
- Heat Resistant, Can Operate Continuously At Temperature Up to 500°F, Much Higher Than What Any Bushing Would See
- Limited Lifetime Warranty, Covering Manufacture Defects:
- Material Cracking
- Separation Of Teflon Liner and Polyurethane Bushing
- Squeaking Under Normal (Street/Track) Conditions.

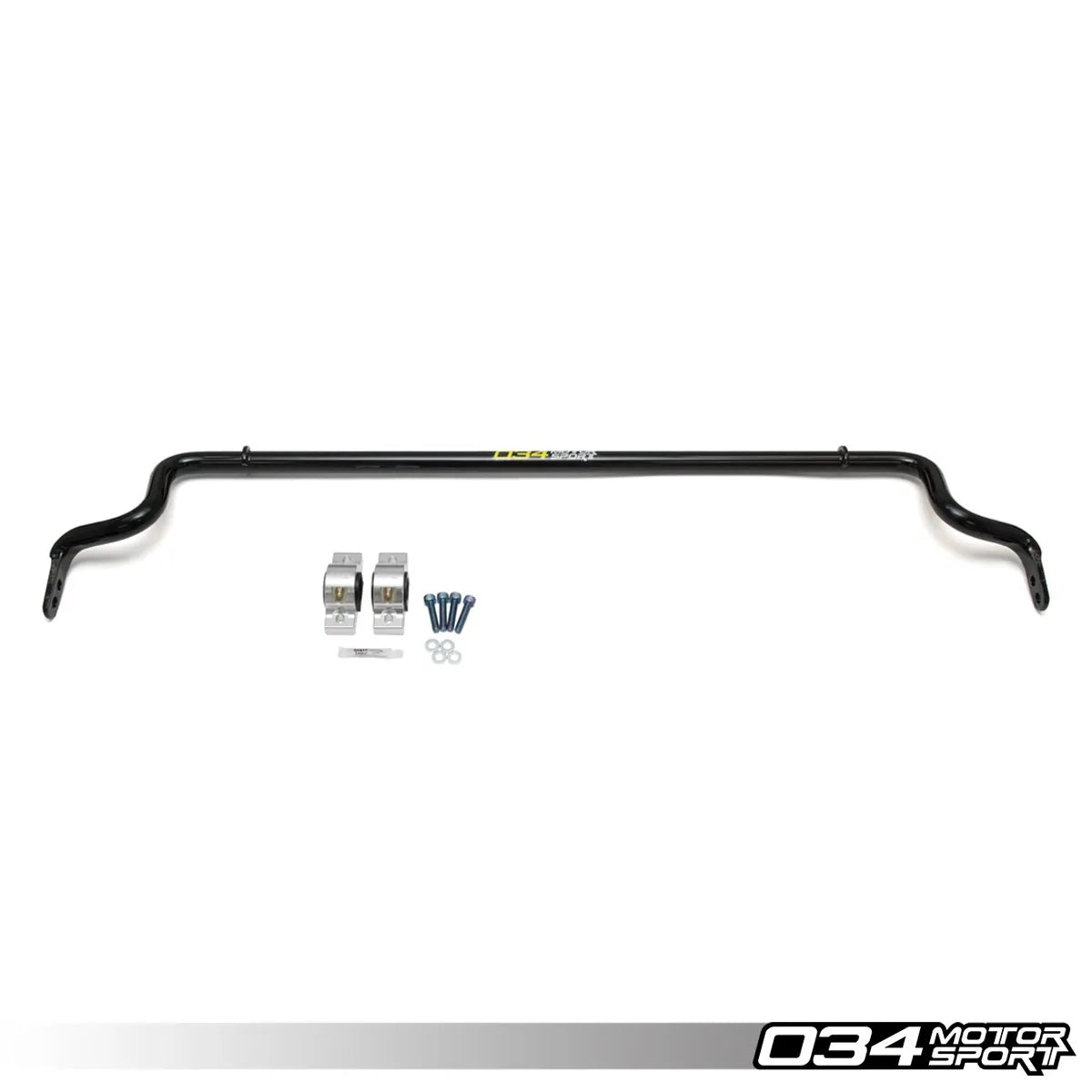

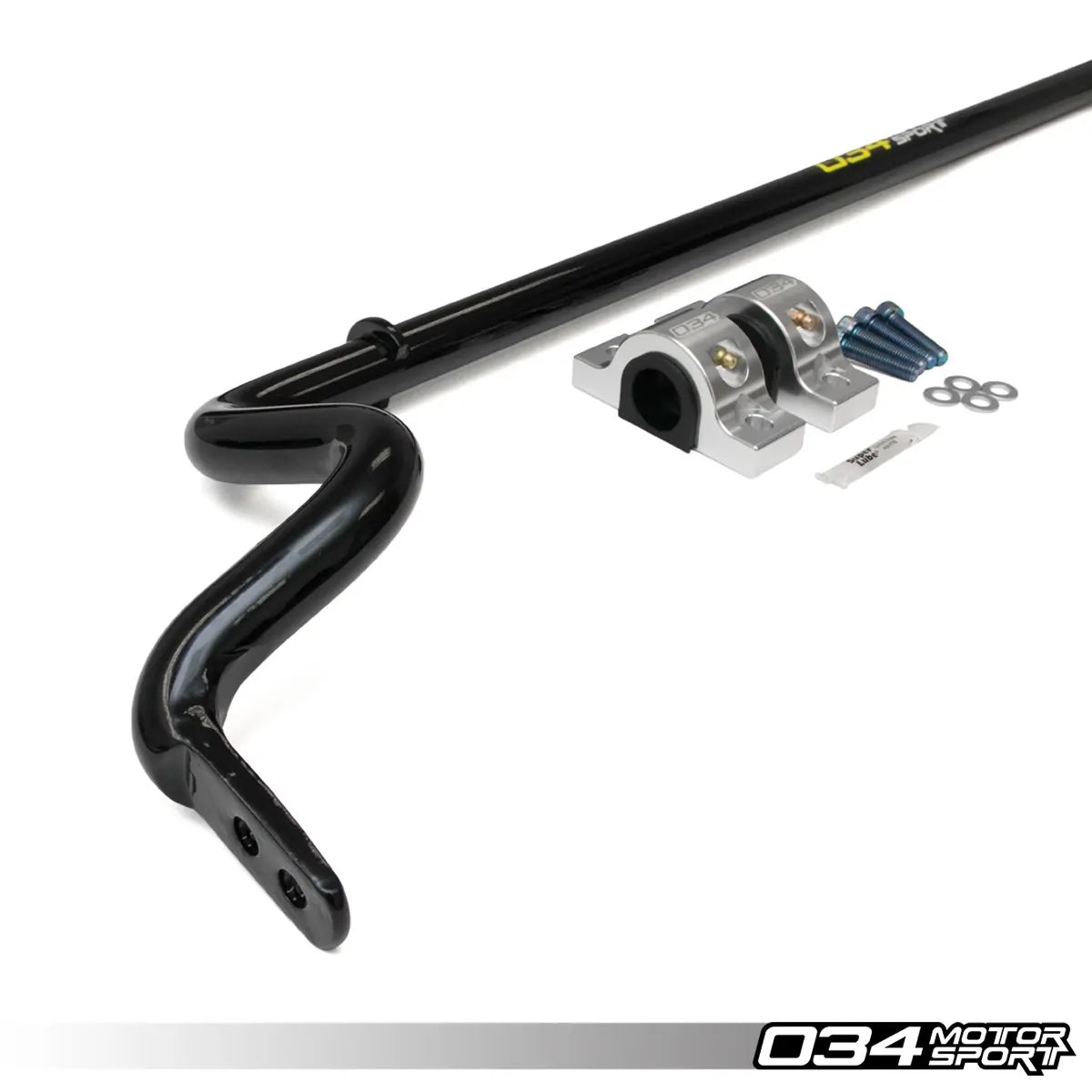

What's Included:
- 034Motorsport B8/B8.5 Audi Q5/SQ5 & C7/C7.5 A6/S6/RS6, A7/S7/RS7 Adjustable Solid Rear Sway Bar

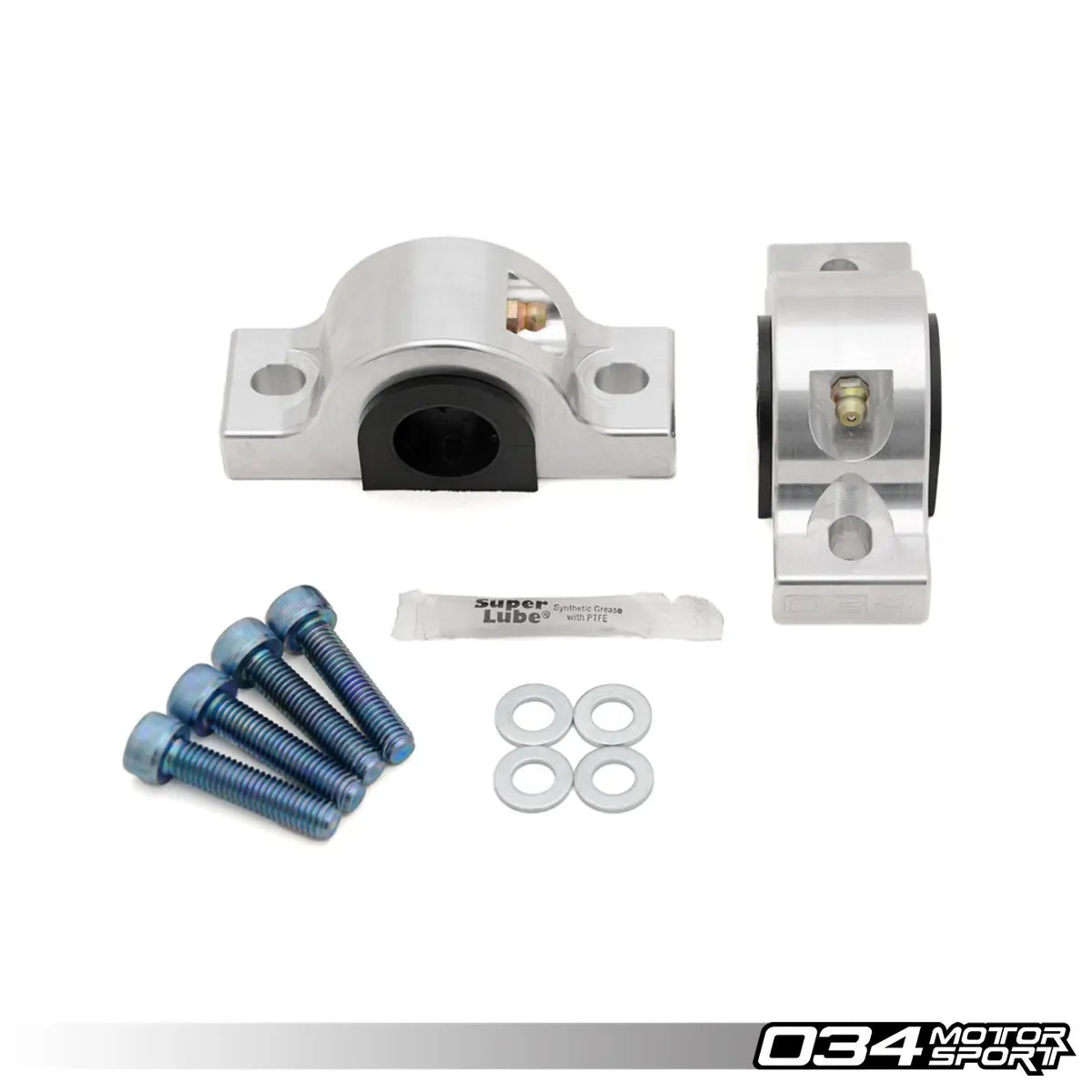

- Teflon Lined Polyurethane Sway Bar Bushings
- Billet Aluminum Sway Bar Brackets
- Sway Bar Bracket Installation Hardware Kit
Fitment:
- 2009 - 2017 Audi Q5 (B8/B8.5)
- 2012 - 2017 Audi SQ5 (B8/B8.5)
- 2012 - 2017 Audi A6 (C7/C7.5)
- 2012 - 2017 Audi S6 (C7/C7.5)
- 2012 - 2017 Audi RS6 (C7/C7.5)
- 2012 - 2017 Audi A7 (C7/C7.5)
- 2012 - 2017 Audi S7 (C7/C7.5)
- 2012 - 2017 Audi RS7 (C7/C7.5)
Installation Instructions:
Please Note: We recommend upgrading to our Spherical B8/B8.5 Audi A4/S4/RS4, A5/S5/RS5, Q5/SQ5 Rear Sway Bar End Links to attain the maximum performance benefit when installing this rear sway bar upgrade. Vehicles that see extended track time, especially heavy vehicles like the Q5, will need to inspect their bushings for wear more frequently.
