034Motorsport Performance Tuning Software for Audi B9/B9.5 A4/A5/Allroad EA888.3 2.0T

034Motorsport Dynamic+ Performance Tuning Software for the B9 Audi A4, A5, & Allroad equipped with the EA888 Gen 3 2.0T inline-four engine is designed to transform the driving experience of your vehicle! Flashed directly through your vehicle’s OBD-II port, 034Motorsport’s proprietary calibrations for the ECU safely and effectively increase the power output of the turbocharged inline-four in a refined manner. The result is a significant improvement in acceleration and throttle response without sacrificing driveability or reliability.

Included at an extra cost is the Stage 1 Dynamic+ Performance TCU Software for B9 Audi A4, A5, & Allroad equipped with the DL382 G1 7-Speed DSG transmission to further enhance the shifting and acceleration of your DSG Equipped 2.0T! Flashed directly through your vehicle’s OBD-II port, 034Motorsport’s proprietary calibrations for the DL382 TCU safely and effectively optimize operation for Stage 1/2 & 1/2+ Dynamic+ Performance ECU Software. The result is a noticeable improvement in acceleration without sacrificing comfort or reliability.

034Motorsport Dynamic+ Tuning is also suited for rare 6-speed manual transmission equipped B9 Audi A4 & A5!

Stock: 264 HP / 279 TQ

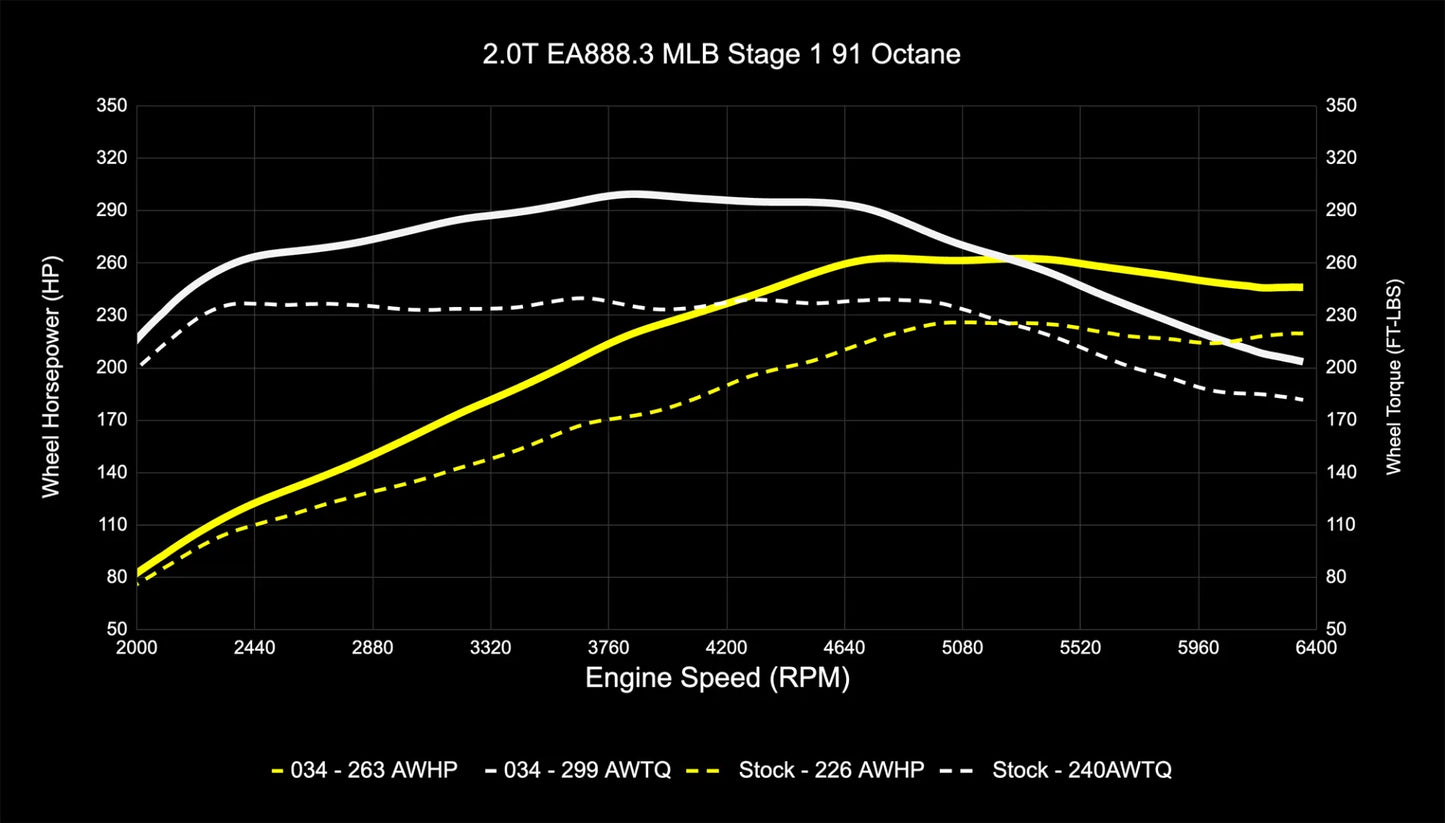

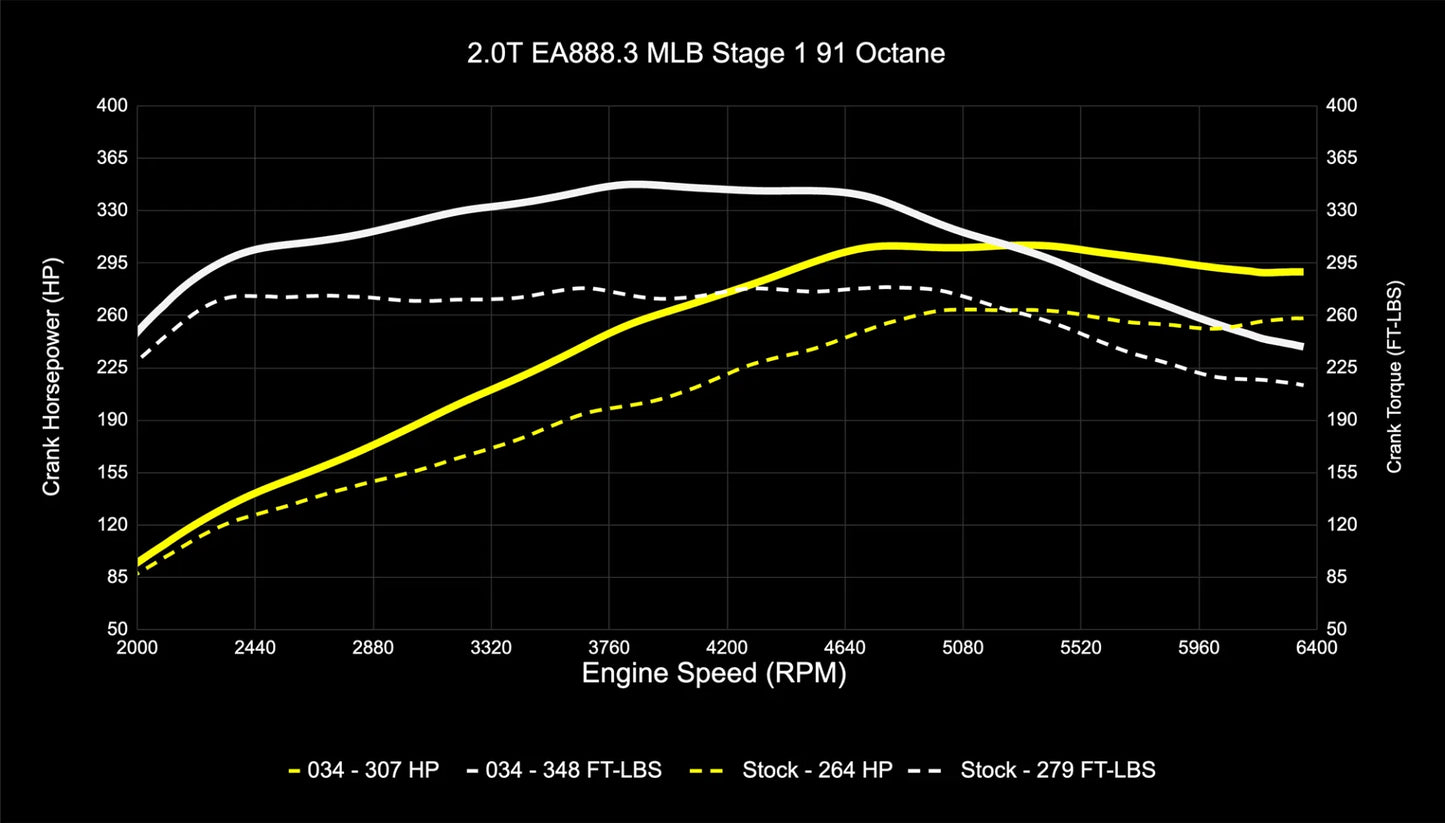

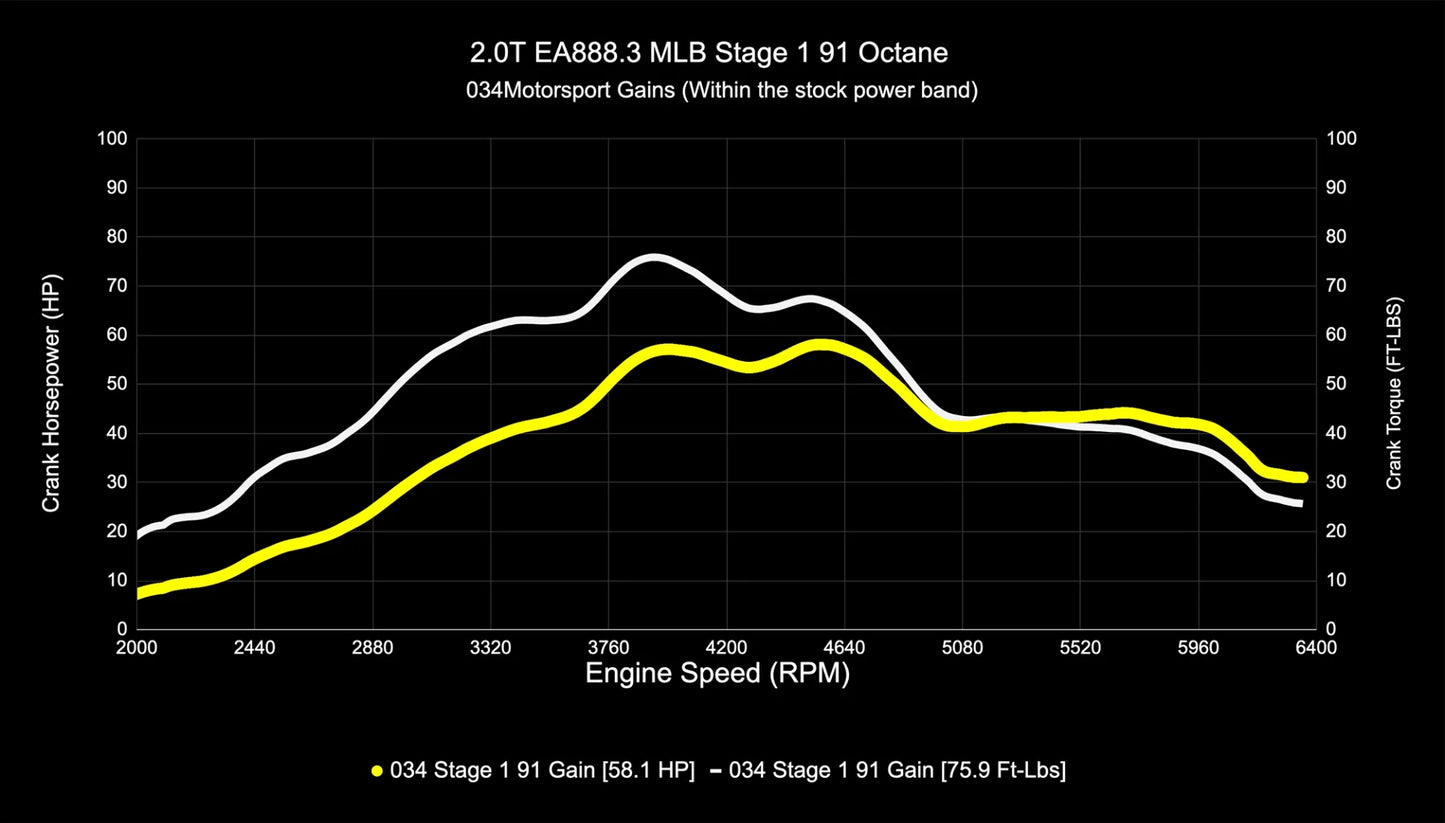

Stage 1/1+ 91: 307 HP / 348 TQ

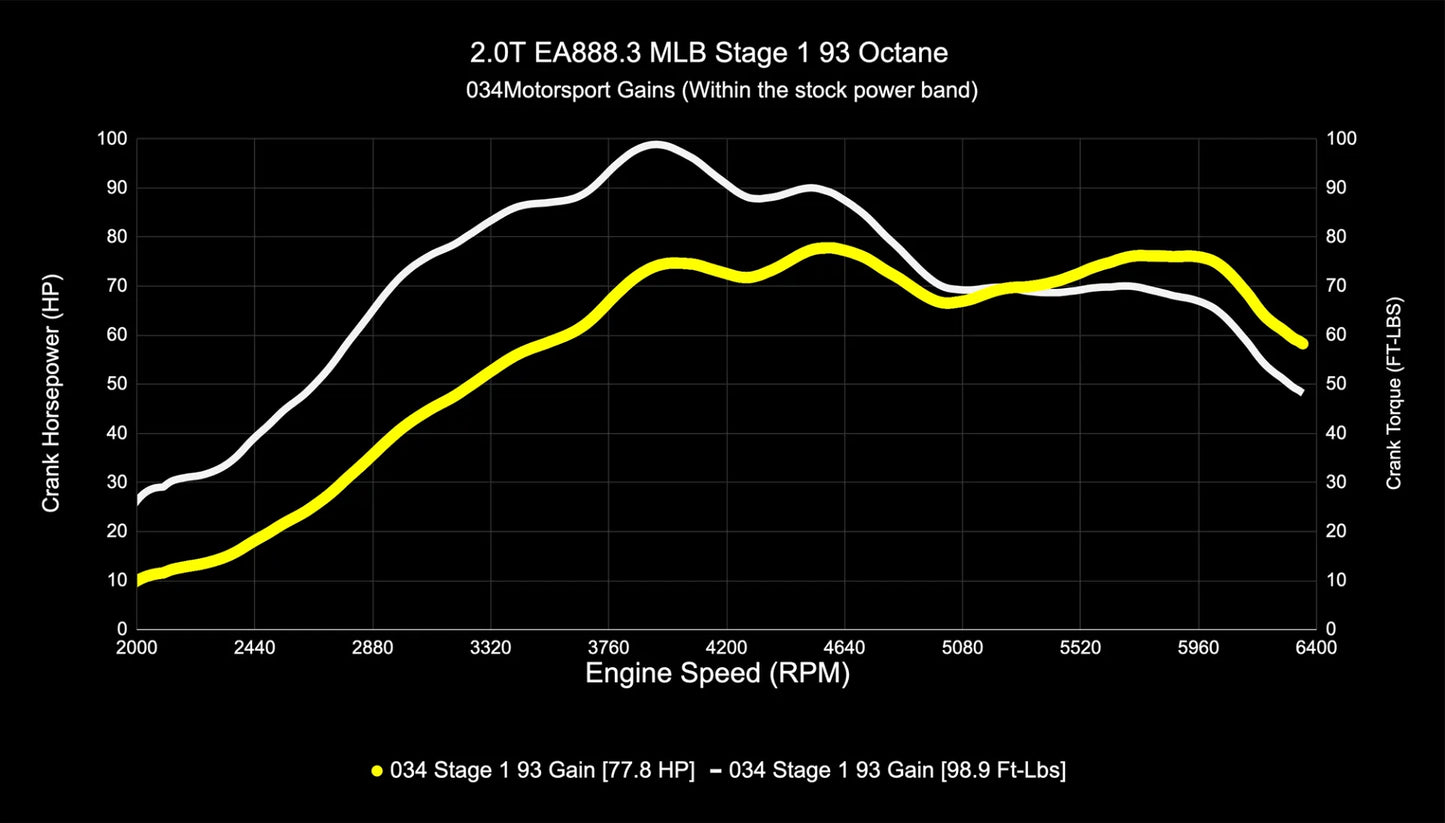

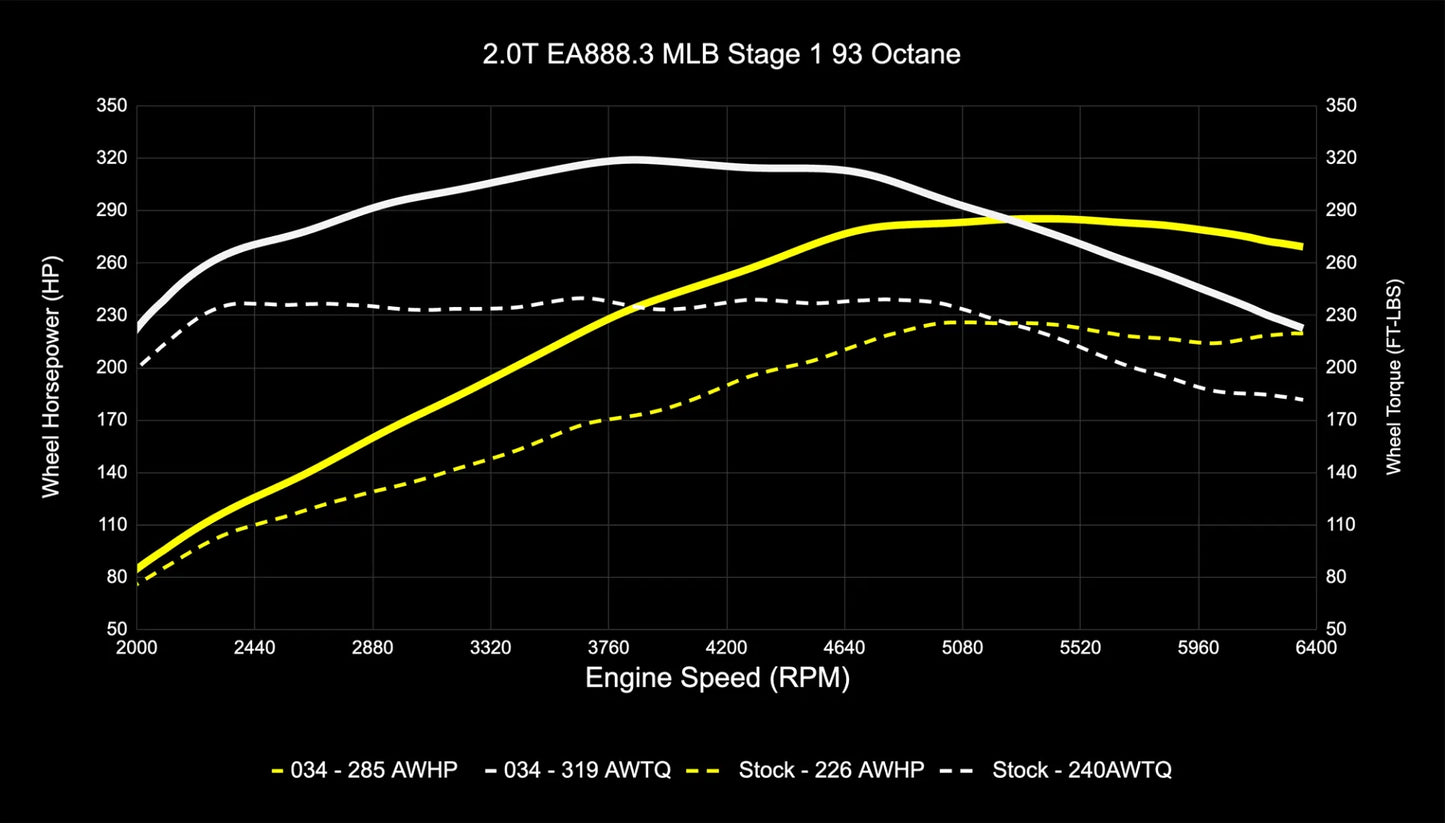

Stage 1/1+ 93: 334 HP / 370 TQ

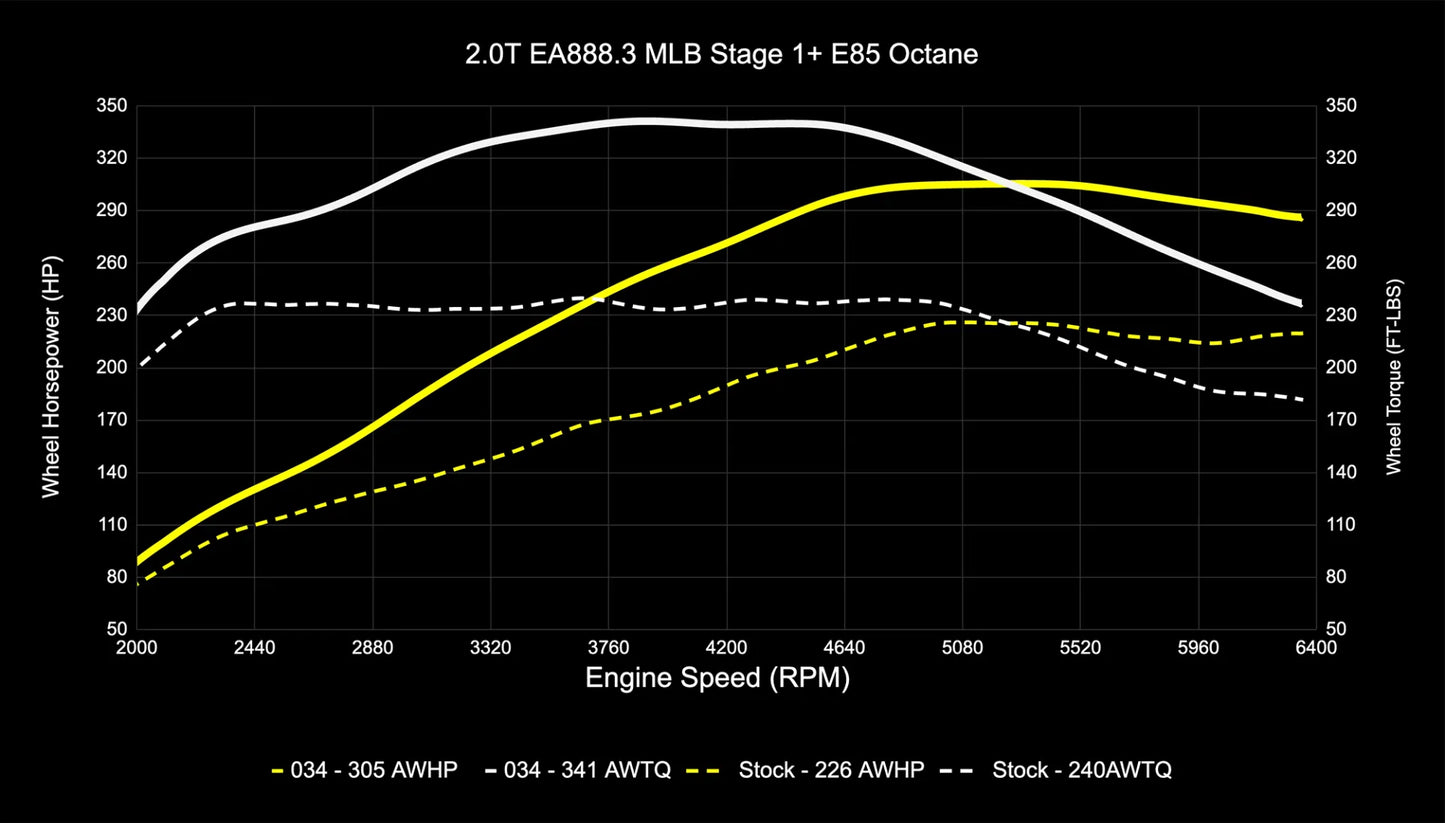

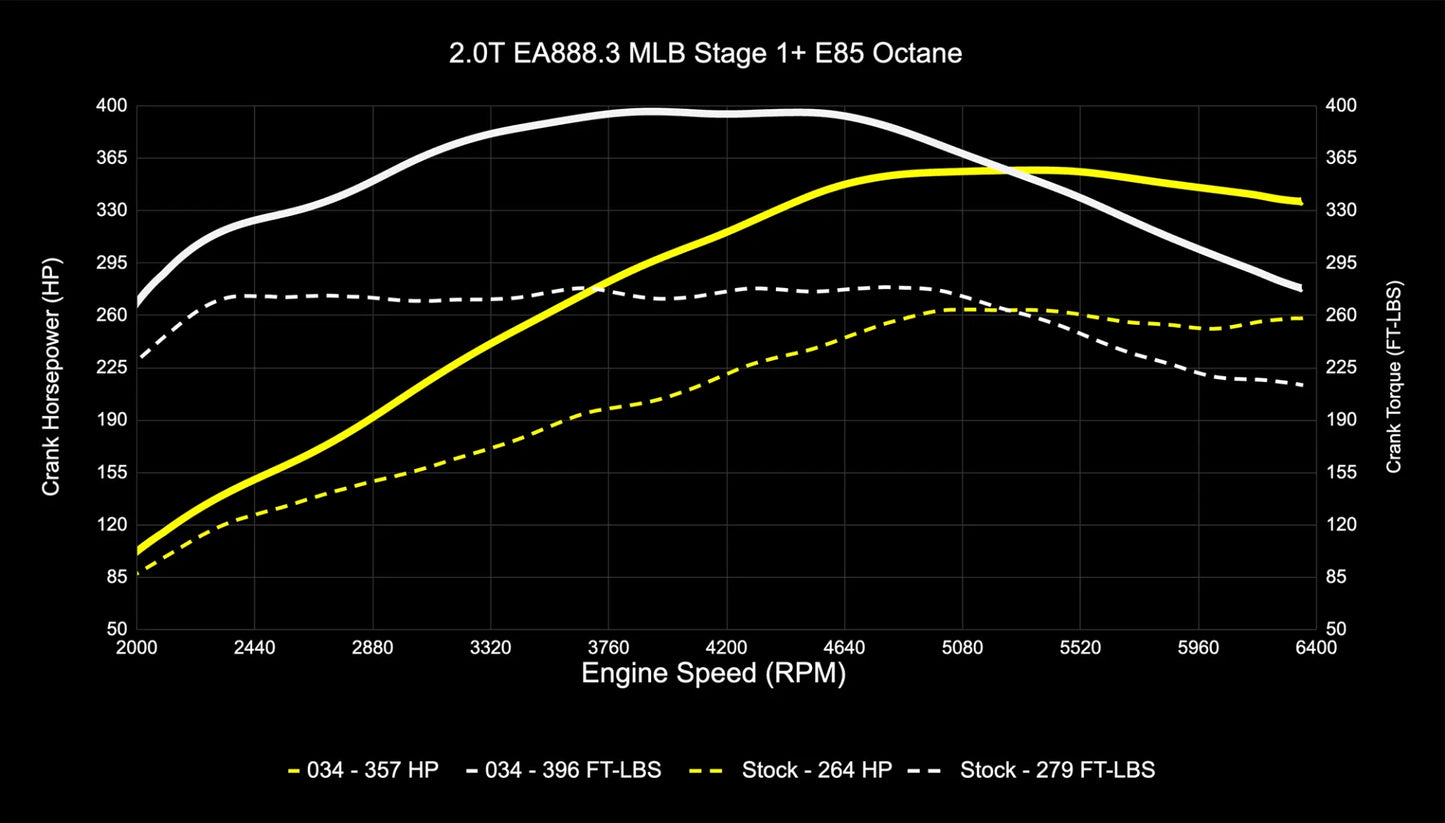

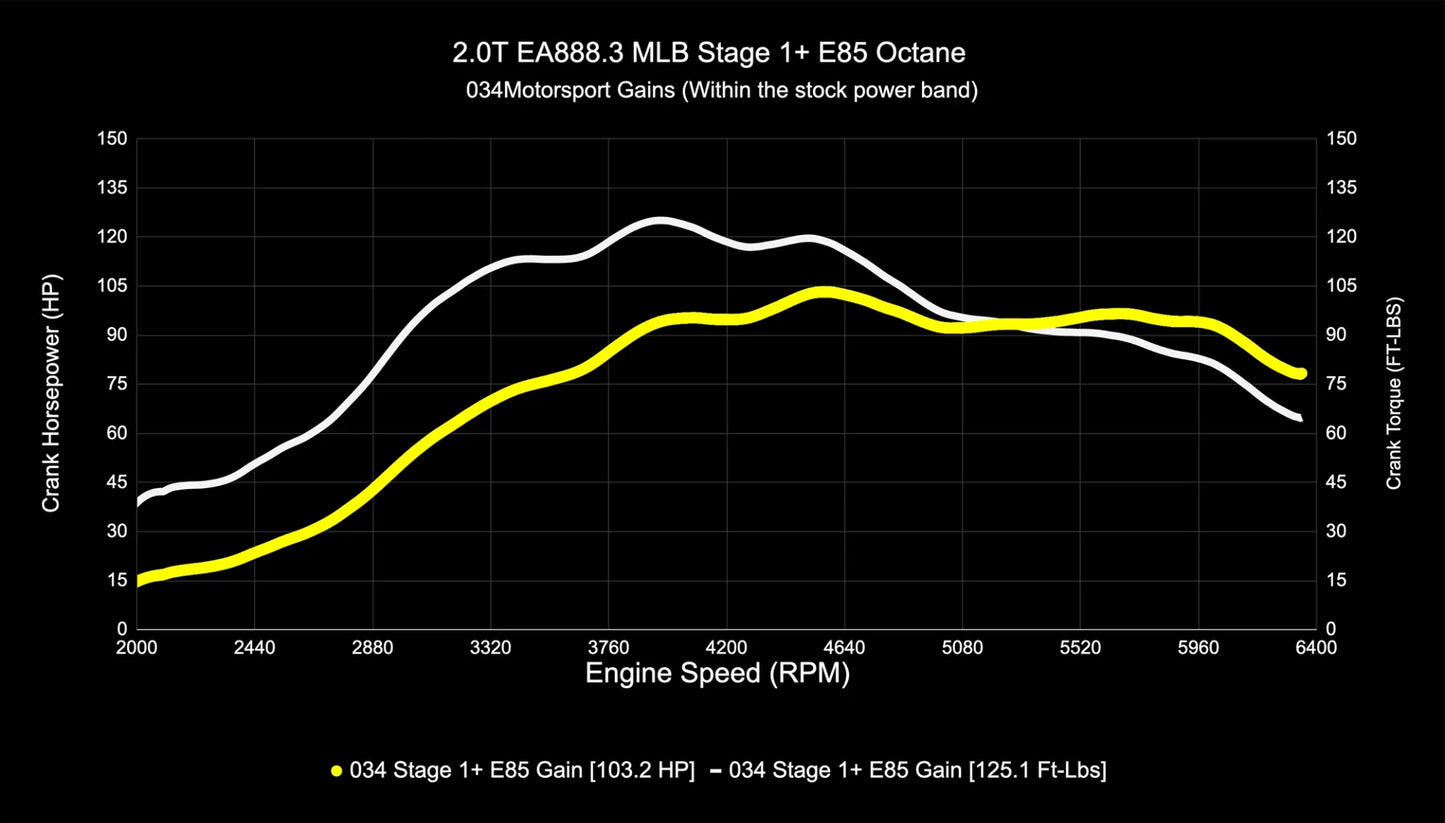

Stage 1+ E85: 357 HP / 396 TQ

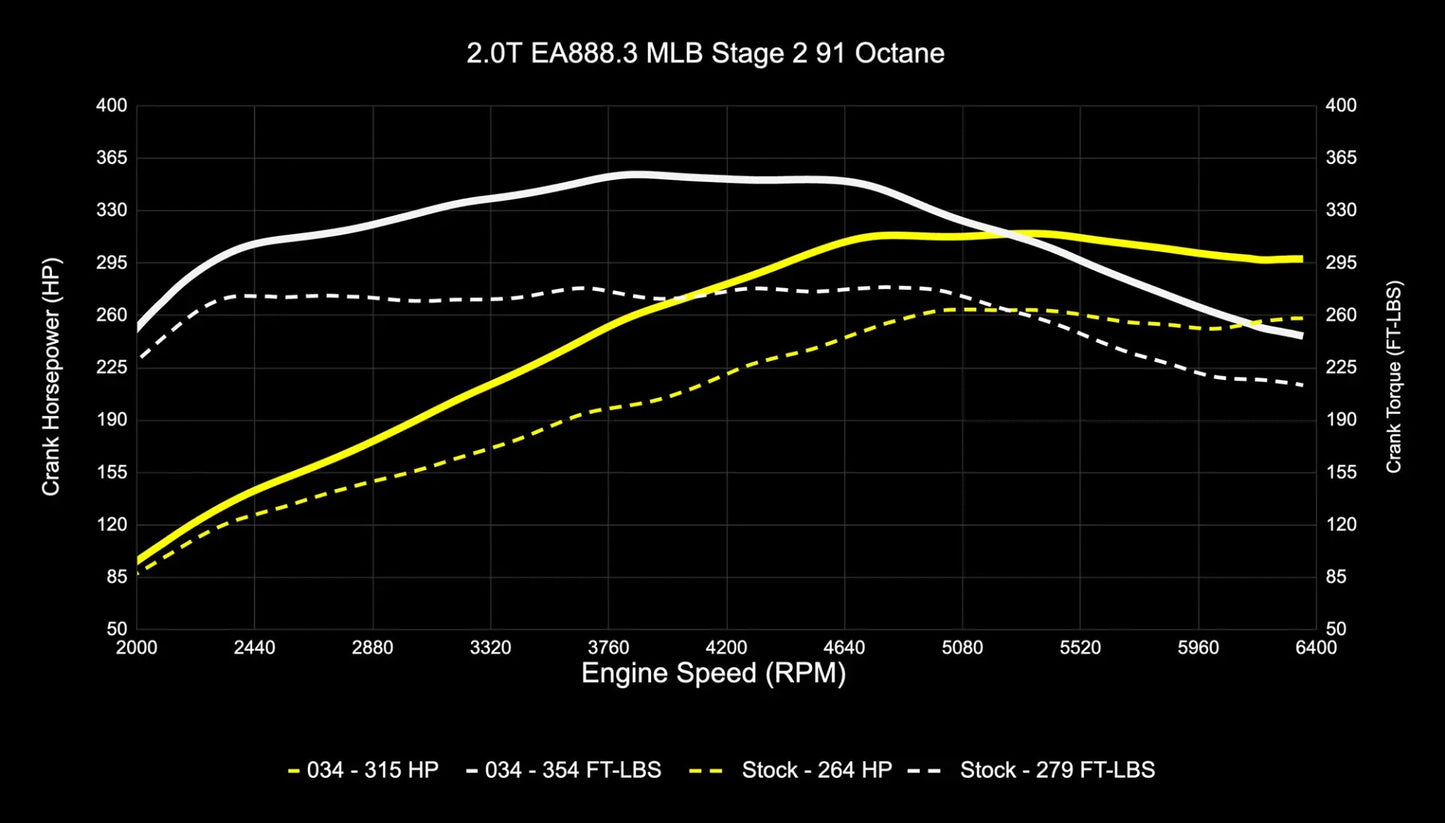

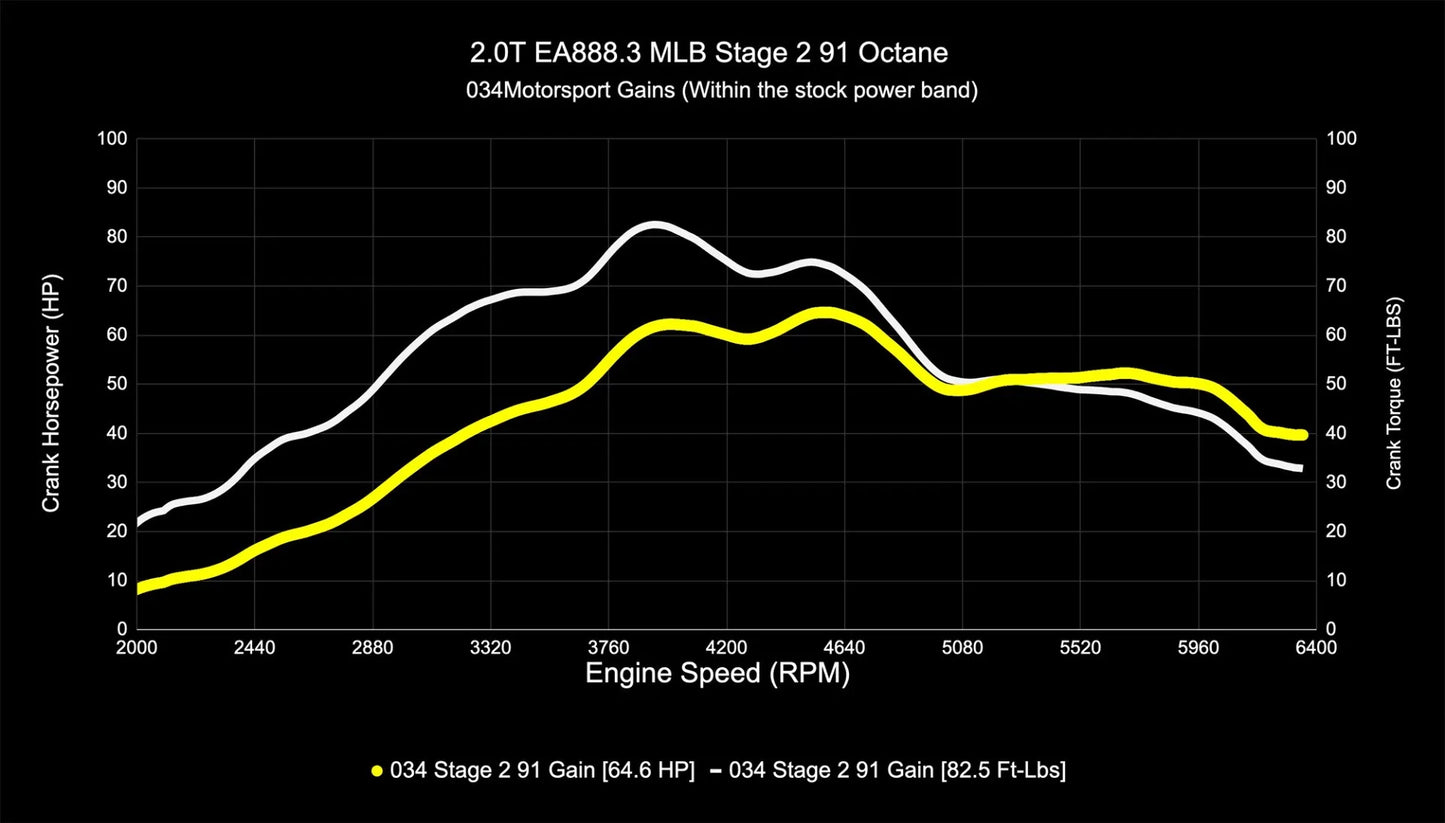

Stage 2/2+ 91: 315 HP / 354 TQ

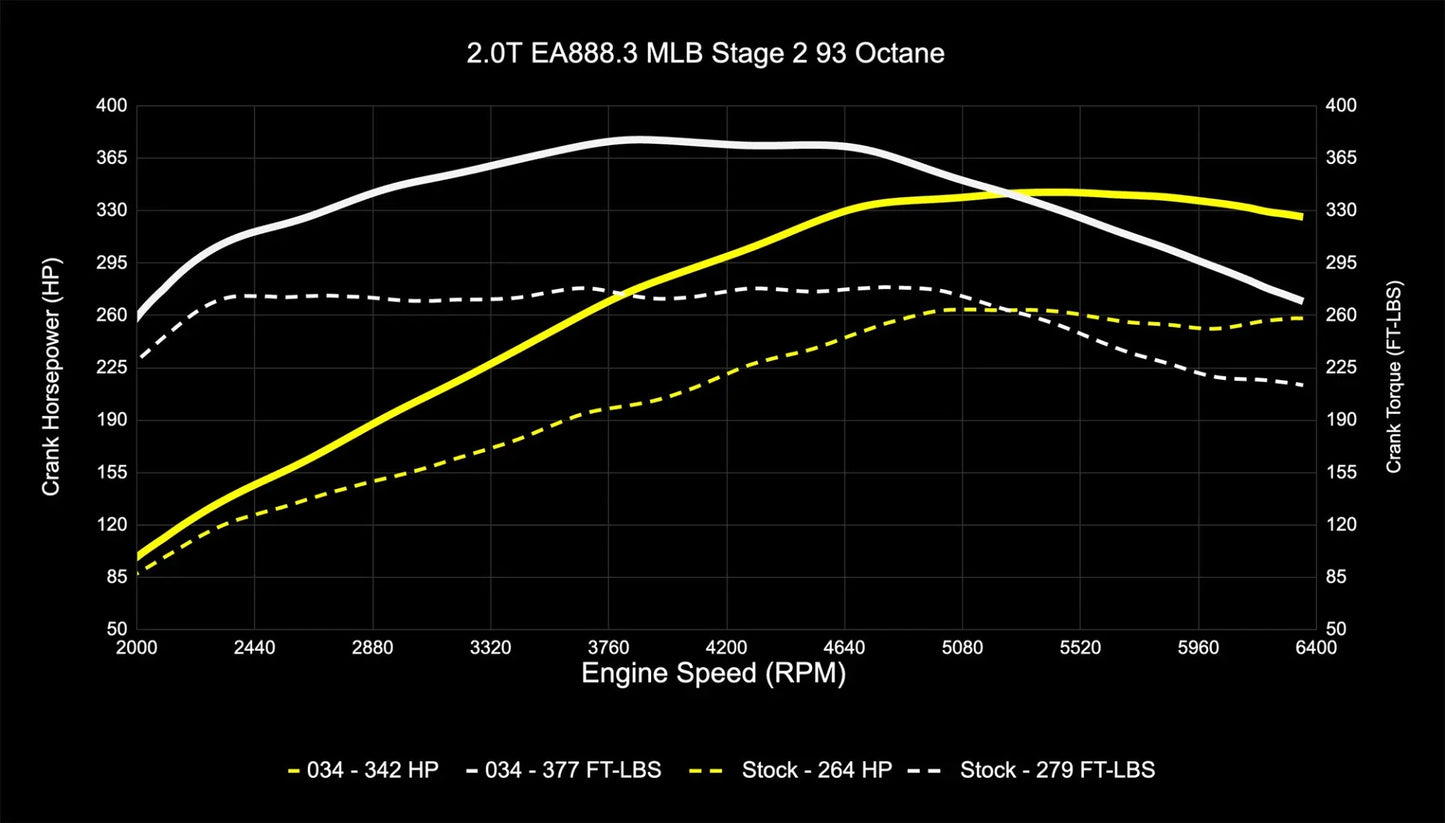

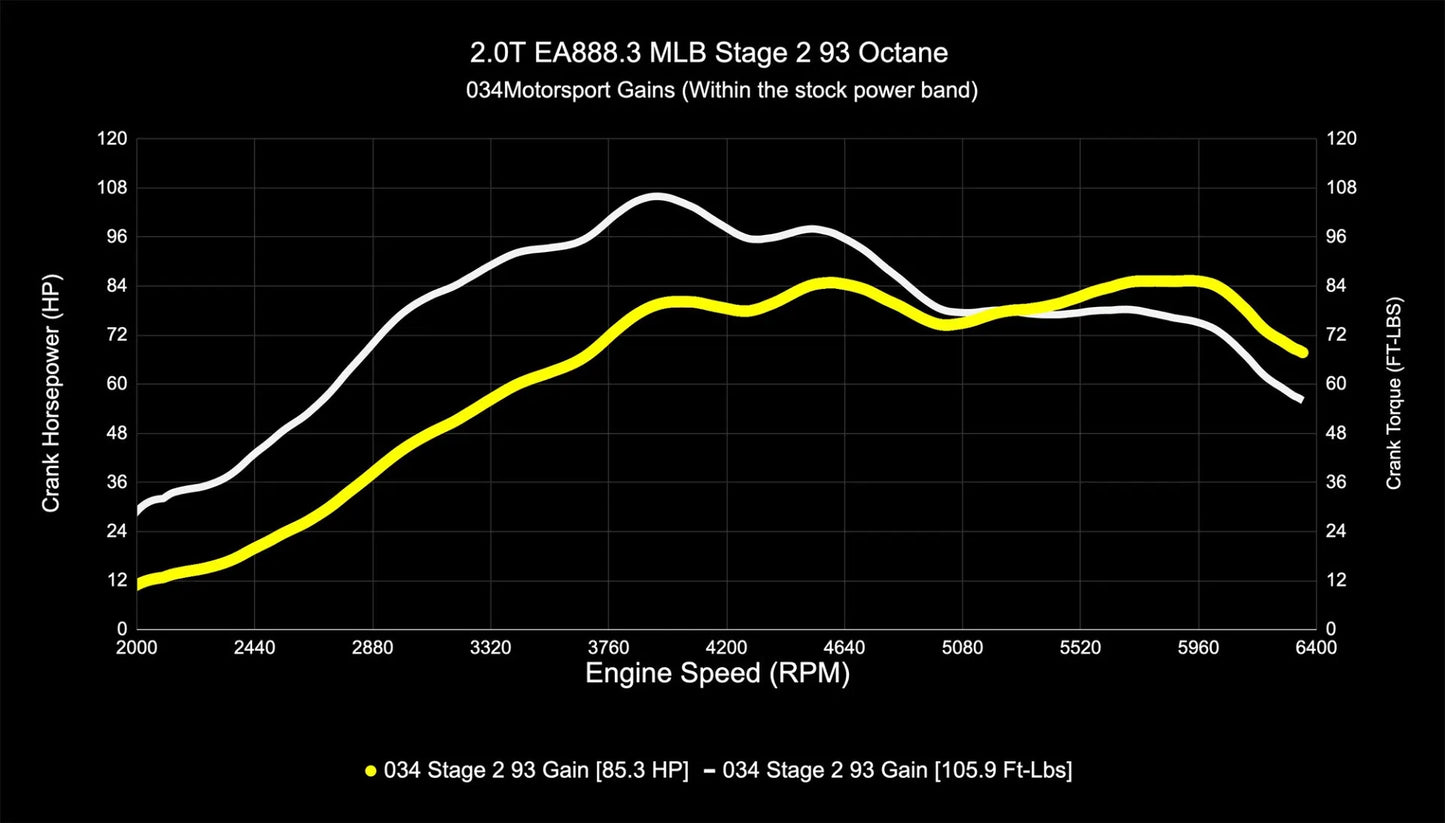

Stage 2/2+ 93: 342 HP / 377 TQ
Stage 2+ E85: 366 HP / 404 TQ

Click Here to View Hardware Requirements

30 Day Money Back Guarantee:

034Motorsport offers a 30 Day Money Back Guarantee on Dynamic+ ECU & TCU Tuning Software & Flashing Cable to ensure your complete satisfaction with our products and tuning. If you are not 100% satisfied with the Dynamic+ Transformation on your Volkswagen or Audi, please email tuning@034motorsport.com within 30 calendar days of the initial flash, and we will process a full refund to the original payment method.

Please Note: Some 2019 and all 2020 vehicles are equipped with a TCU generation that we do not currently have support for. If you have a 2021+ vehicle, your vehicle is equipped with a EA888 Gen 4 engine which we do not currently support

034Motorsport Performance ECU Software can be safely utilized on vehicles with G1 or G2 DL382 transmissions to experience a significant bump in horsepower, without compromising the reliability and safety of your engine and transmission. 034Motorsport calibrators spent equivalent time developing on G1 and G2 DL382 TCUs to ensure all B9/B9.5 A4/A5 owners are able to increase the power of the EA888.3 safely.

034Motorsport Performance ECU Software is compatible with Quattro and select Front Wheel Drive A4/A5 models. FWD A4/A5 models without a MAF (Mass Airflow Sensor) are supported. If your vehicle has a MAF, then unfortunately 034Motorsport does not support your vehicle with Dynamic+ Tuning.

For questions or concerns whether your vehicle is supported, or if your vehicle is equipped with a G1 or G2 DL382 transmission, please email info@shopicwp.com before purchasing.

Tuned by a competitor but want to experience the Dynamic+ Transformation? 034Motorsport offers a switching discount risk-free with our 30 Day Money Back Guarantee! To take advantage of this, email us at contact@034motorsport.com BEFORE purchasing!

Note: 034Motorsport strives to fulfill all Dynamic+ Tune and Tune Upgrades within 0-2 business days of your order being placed. If you do not have an email from us (Be sure to check your spam folder!) after that operating window, please do not hesitate to reach out to us by emailing info@shopicwp.com with your order number, and our team will be happy to assist further.



034SPI Mobile Flashing Phone App

Detailed Flashing Features:

• Complete Any ECU Or TCU Tune Flash
• Quickly Flash Different Fuel Octane Or Transmission Files
• Flash ECU/TCU Using Mobile Device's Internet Connection
• Enhanced Flashing Protocol Protections For Increased Flashing Stability
• User-Configurable Live Data Displays
• Multiple Data Display Views
• Dozens Of Defined Variables Available
• High-Speed Datalogging Of Pre-Defined Variables
• Easy Upload Of Logs To 034Motorsport Server
• Datalog Analysis Services Available Free Of Charge
• Read & Clear DTCs On ECU & TCU
• View Emissions Monitor Statuses
• Perform Adaptations/Recalibrations*
  • *Available for limited platforms, coverage expanding regularly



Dynamic+ ECU Features:

Thermal Management Safety Strategies:

With increased power, comes increased heat. With increased heat, comes the need for additional management. For charge air temperature, 034Motorsport has implemented key safety features to keep your engine running optimally and safely in virtually any condition - just like the OEM calibration. Substantial effort was spent on balancing the trade off of charge temp for power, and improving the compressor efficiency so that it doesn't generate too much charge temp.

Charge Air Temp: When the charge temp exceeds 80*C there is a reduction in power output. When the charge temp exceeds 85*C there is a more significant reduction in power output. This charge temp limitation is there to prevent knock events, which can severely damage a motor. With these safety measures in place, you can confidently drive your car, from the top of Pikes Peak to Death Valley, knowing the factory ECU has optimal performance and safety covered..

Coolant Temp/Fan Strategy: From the factory, Audi likes to run hotter water temps to reduce fluid friction losses from cooler, more viscous oil. While better for efficiency, this strategy becomes a safety issue when loads and heat are increased. 034Motorsport calibrators have rescaled the coolant temperature targets and fan control strategies to target lower coolant temperatures when in higher heat conditions, allowing the car to run within a safe heat range rescaled for the added heat that comes from tuning the engine. Once again, this means that 034Motorsport calibrators have kept your confidence in safety fully intact from the OEM configuration.

Fuel System Optimization:

While E85 provides substantial increases in power, it requires about 30% more fuel than standard pump gasoline per ignition cycle. Utilizing a variety of fuel stratified injection strategies, 034Motorsport calibrators have further optimized the Stage 1+ and Stage 2+ calibrations to be able to adequately support full E85 with supporting hardware upgrades.

The main limiting factory in the 2.0T fuel system is the factory high pressure fuel pump. In order to properly run 034Motorsport Stage 1+ or 2+ files, you must be using an upgraded HPFP that has a minimum 38.6% larger diameter piston over stock.

Start/Stop Button Memory:

Dynamic+ Tuning for the EA888.3 2.0T retains the Start/Stop engine functionality, but allows users to set the memory for the system based on preference. If you do not want the Start/Stop system to run, turn it off via the in-cabin button and the car will store that selection even after key cycling the car. If you would like it to stay on, select it to be on via the in-cabin button. This is done in a completely OEM fashion, helping enhance the overall experience of driving your car!

Free Revving in Neutral and Park

The rev-limiter is now removed while in Neutral and Park. Impress friends and annoy those around you with limitless ease!

Accurate Boost Reporting

For vehicles equipped with the digital boost gauge, your vehicle will now accurately scale boost levels!

Optimized for Manual & DSG Equipped Vehicles!

034Motorsport calibrators spent equal time refining the ECU calibrations on DL382 G1 & G2 and 6-speed manual transmission equipped for optimized performance and smooth drivability without compromising the reliability and safety of your engine and transmission.

Dynamic+ TCU Features:

Stage 1 TCU Tune:

Note: The 034Motorsport Stage 1 TCU Tune is available for G1 DL382 equipped vehicles only. G1 DL382 Transmissions are found in 2017-Early 2019 build-date vehicles.

Torque Safety Strategy Enhancements: The Dynamic+ ECU Tuning accurately reports torque values to the TCU to ensure that all safety systems are intact in both control units, and the added torque from tuning is properly adjusted for when driving/shifting, including all safety systems designed to protect the engine and transmission. This results in better shift quality as the transmission is not having to reduce engine torque or having to adapt to misreported inputs.

Clutch Pressure Increases: In order to safely apply the increased horsepower and torque, DSG Clutch Pressures are increased in all drive modes. Expect to feel firmer and more solid shifts!

Optimized Shift Points: In order to take advantage of the increased powerband from the turbocharger, Dynamic+ Tuning optimizes the shift points in Drive & Sport Mode to maximize acceleration while retaining smooth drivability.

Improved Shift Speeds: To further enhance the acceleration of your Audi, the DL382 shift times are dramatically decreased in all driving modes, which ultimately results in quicker acceleration.

Launch Control Optimizations: From the factory, the DL382 launch control strategies used are very neutered and designed for a vehicle on a non-optimal surface with low-grip tires. 034Motorsport Engineers have optimized the launch by raising the factory RPM stall to take advantage of a better surface and a grippier tire. This ensures that your vehicle will 60ft much more effectively and efficiently, bringing down your 0-60 and 1/4mi times!

Kickdown Switch Disabled in Manual Mode: When in Manual mode, you no longer need to worry about accidentally pushing through the kickdown switch on the throttle pedal!

Gear Display in Instrument Cluster: From the factory, the instrument cluster only displayed "D" or "S" when in Drive or Sport. Now, your instrument cluster will let you know what transmission mode you are in, as well as the gear!



034Motorsport B9/B9.5 Audi A4/A5/Allroad EA888 Gen 3 2.0T Stage Descriptions:

Stage 1

034Motorsport Stage 1 Performance Software for the EA888 Gen 3 2.0T engine running pump gas is engineered to safely increase the horsepower and torque with no additional hardware required.

In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and further control of the vehicle when driving on track. Due to the limitations of the stock turbocharger on the EA888 Gen 3, the rev limiter was not adjusted.

034Motorsport EA888 Gen 3 2.0T Performance Software is flashed via the factory OBD-II port, and does not require any physical modification of the factory ECU. Stage 1 is available in 91 Octane and 93 Octane. ALL FILES ARE US (MON+RON) RATING, ROW OCTANE RATINGS MAY DIFFER. IF YOU ARE A UK/ROW CUSTOMER, PLEASE EMAIL TUNING@034MOTORSPORT.COM FOR ASSISTANCE ON FUEL MAP SELECTION.

Stage 1+

034Motorsport Stage 1+ Performance Software for the EA888 Gen 3 2.0T running pump gas or ethanol is engineered to safely increase the horsepower and torque with the addition of an upgraded high pressure fuel pump and no additional hardware.

If you are traveling somewhere without E85, 034Motorsport also offers 91 & 93 octane files to be used with an upgraded HPFP. This allows you to travel cross country without worry of having to plan for E85 stations or carrying gas jugs. Stage 1+ files do not increase performance figures on pump gas over the factory HPFP.

In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and further control of the vehicle when driving on track.

034Motorsport EA888 Gen 3 2.0T Performance Software is flashed via the factory OBD-II port, and does not require any physical modification of the factory ECU. Stage 1+ is available in 91 Octane and 93 Octane. ALL FILES ARE US (MON+RON) RATING, ROW OCTANE RATINGS MAY DIFFER. IF YOU ARE A UK/ROW CUSTOMER, PLEASE EMAIL TUNING@034MOTORSPORT.COM FOR ASSISTANCE ON FUEL MAP SELECTION.

Stage 2

034Motorsport Stage 2 Performance Software for the EA888.3 2.0T engine running pump gas is engineered to safely increase the horsepower and torque with the addition of an upgraded Intake System, 034Motorsport’s Cast Stainless Steel Racing Catalyst, and upgraded intercooler. The Upgraded Catalyst allows for increased exhaust flow with the factory turbocharger, while 034Motorsport’s proprietary calibrations safely yield additional power from the EA888.3 2.0T engine.

In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in both Dynamic and Comfort modes to provide improved throttle response and allow for more precise throttle modulation.

034Motorsport EA888.3 2.0T Performance Software is flashed via the factory OBD-II port, and does not require any physical modification of the factory ECU. Stage 2 is available in 91 Octane and 93 Octane. ALL FILES ARE US (MON+RON) RATING, ROW OCTANE RATINGS MAY DIFFER. IF YOU ARE A UK/ROW CUSTOMER, PLEASE EMAIL TUNING@034MOTORSPORT.COM FOR ASSISTANCE ON FUEL MAP SELECTION. *Note: OPF deletes are not supported for Stage 2 ECU software.

Stage 2+

034Motorsport Stage 2+ Performance Software for the EA888 Gen 3 2.0T running pump gas or ethanol is engineered to safely increase the horsepower and torque with an upgraded high pressure fuel pump and the addition of an upgraded Intake System, 034Motorsport’s Cast Stainless Steel Racing Catalyst, and upgraded intercooler. The Upgraded Catalyst allows for increased exhaust flow with the factory turbocharger, while 034Motorsport’s proprietary calibrations safely yield additional power from the EA888.3 2.0T engine.

If you are traveling somewhere without E85, 034Motorsport also offers 91 & 93 octane files to be used with an upgraded HPFP. This allows you to travel cross country without worry of having to plan for E85 stations or carrying gas jugs. Stage 2+ files do not increase performance figures on pump gas over the factory HPFP.

In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and further control of the vehicle when driving on track.

034Motorsport B9 Audi A4/A5/Allroad DL382 G1 TCU Stage Descriptions:

Stage 1

The 034Motorsport Stage 1 Transmission Performance Tuning Software for the DL382 G1 is designed to further improve the drivability and performance of your Dynamic+ Tuned 2.0T Audi. Dynamic+ Stage 1 TCU Software can be used with our Stage 1/1+ and Stage 2/2+ ECU software. 034Motorsport Stage 1 TCU Tuning further improves shifting performance and increases shift speeds in both Drive and Sport mode to best suit on-road and high-performance driving. Dynamic+ Tuning also improves the launch control strategy to ensure you have the most optimal launch possible.







ECU Tune Supporting Modification Requirements:
