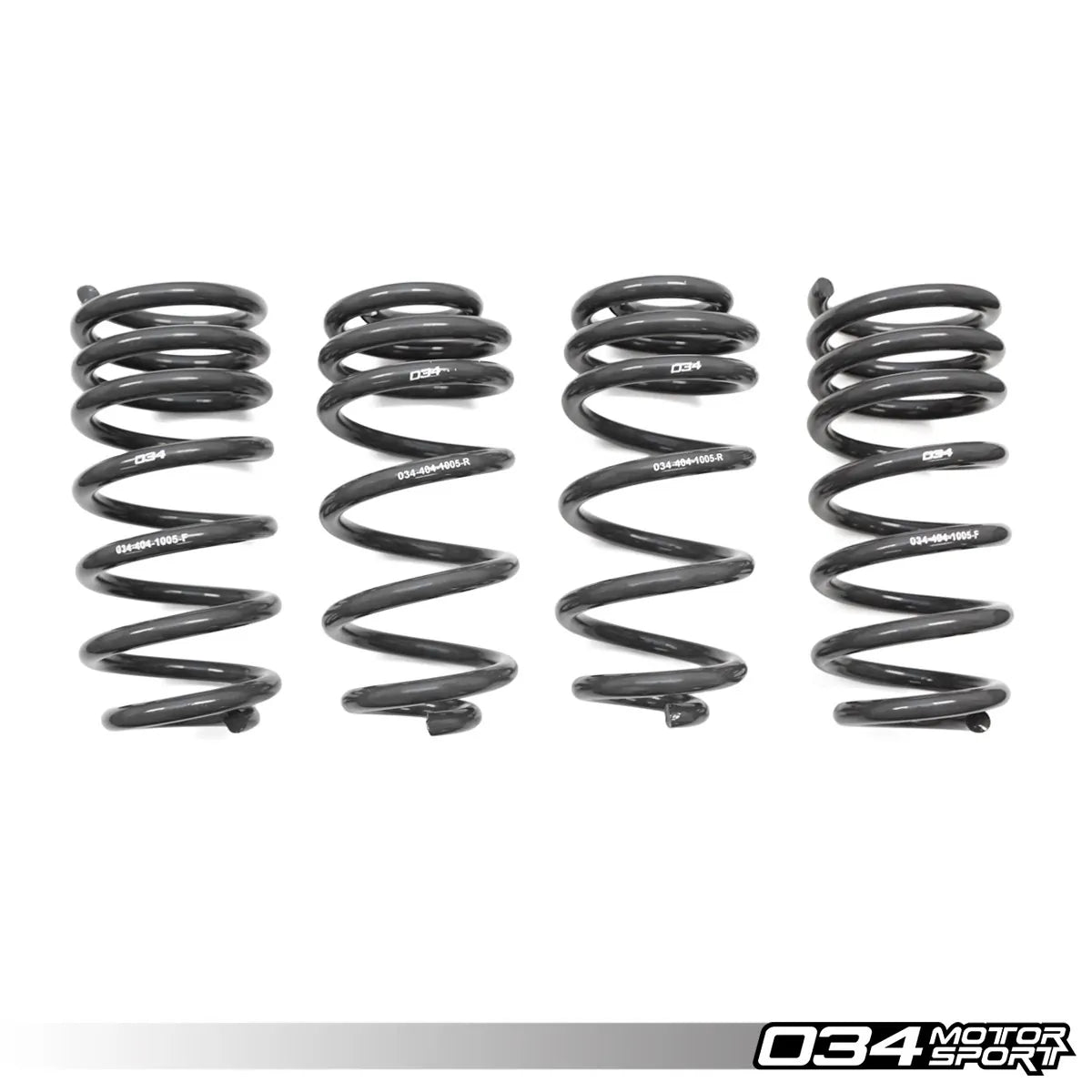

Dynamic+ Lowering Springs were thoroughly evaluated on the street and track on 034Motorsport's B9 Audi S4 Development Vehicle, and by independent Audi enthusiasts before release. The selected spring rates, unique dual-rate spring design, and ride height are the culmination from months of testing - thousands of miles of commuting and countless track days - resulting in a lowering kit that is perfectly matched to the factory dampers.
Each set of Dynamic+ Lowering Springs is manufactured in the USA at an ISO 9001 certified facility, and tested to 034Motorsport's exacting specifications to ensure they deliver unmatched levels of handling performance. These springs are the ideal suspension solution for the discerning Audi S4 owner who desires to lower their vehicle and enhance their driving experience.
WHY ARE DYNAMIC+ COIL SPRING SLEEVES NEEDED?

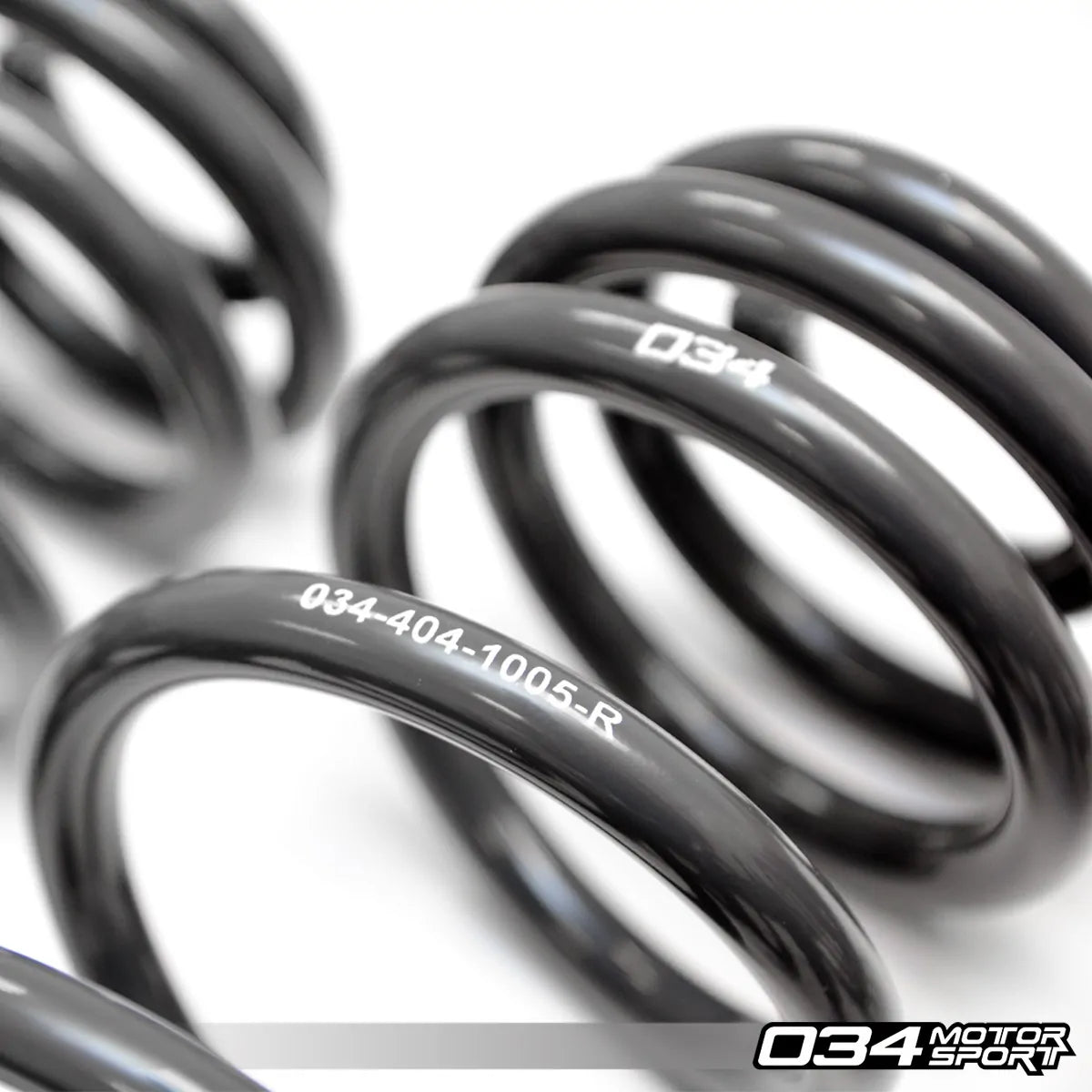

When designing 034Motorsport Dynamic+ Lowering Springs, we are not simply making a shorter spring. With lowering springs, the misconception is that the overall coil length is shorter. The spring itself is actually the same length as the OEM spring but they are designed with some of the coils in the spring closer together, which "stack" under weight, giving you the lowered ride height. Since the coils are physically closer to one another, when the suspension compresses and decompresses, the coils stack and rise.
Coils stacking is engineered into the design of the majority of aftermarket lowering springs, aftermarket coilovers, and sometimes even OEM suspension. This depends largely on the design of the car during the engineering process.
In some cases when these coils stack under heavy, they can create excess noise. For this reason, 034Motorsport offers Dynamic+ Coil Spring Sleeves to dampen the noise between coils. Not all Dynamic+ Lowering Springs will require these Coil Spring Sleeves, and for those that do, 034Motorsport includes a pair of Coil Spring Sleeves that are pre-installed in the appropriate location.
FEATURES:
- Approximately 0.9" of Lowering with Perfect, Functional Stance - No Reverse Rake!
- Improved Handling Performance & Chassis Dynamics
- Reduced Body Roll & Understeer
- Superb Comfort & Ride Quality
- Compatible with Audi Sport adaptive damping suspension
- Lightweight, High-Strength Construction
- Shot Peened & Powdercoated
- Made in USA at ISO 9001 Certified Facility
RIDE HEIGHT:
- Front - Approximately 0.9" Lower
- Rear - Approximately 0.9" Lower
Effective Spring Rates:
- Front - 400 Pounds/Inch
- Rear - 480 Pounds/Inch
FITMENT:
- 2018 - Present Audi S4 (B9/B9.5)
- 2017 - Present Audi S5 (B9/B9.5)
-
Please Note: Dynamic+ Lowering Springs are compatible with both Standard Suspension and Audi Sport adaptive damping suspension.
-
Installation Note: On the rear suspension, only the bottom spring perch has an indexing provision. Locate the bottom of the spring as per the indexing peg. Any perceived indexing on the upper mount is just an impression in the rubber from the old spring.
